LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HLMP-6720-F0011LED YELLOW DIFF GULL WING SMD |
0 |
|
Datasheet | HLMP-6xxx | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Yellow | Standard | - | Diffused | 2mcd | Round with Domed Top | 1.78mm Dia | 5V | 10mA | 90° | Surface Mount | 585nm | 583nm | - | - | - | Gull Wing | 2.08mm L x 2.21mm W |
|
|
HLMP-6720-F0031LED YELLOW DIFFUSED ZBEND SMD |
0 |
|
Datasheet | HLMP-6xxx | 2-SMD, Z-Bend | Tape & Reel (TR) | Active | Yellow | Standard | - | Diffused | 2mcd | Round with Domed Top | 1.78mm Dia | 5V | 10mA | 90° | Surface Mount | 585nm | 583nm | - | - | - | Z-Bend | 2.08mm L x 2.21mm W |
|
|
ASMT-QTB2-0AA02LED RGB CLEAR 4PLCC SMD |
0 |
|
Datasheet | - | 4-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | - | Round with Flat Top | 2.90mm Dia | 2.06V Red, 3.32V Green, 3.32V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 628nm Red, 526nm Green, 472nm Blue | 639nm Red, 519nm Green, 467nm Blue | - | - | - | 4-PLCC | 3.40mm L x 3.20mm W |
|
|
ASMT-QTB2-0A002LED RGB CLEAR 4PLCC SMD |
0 |
|
Datasheet | - | 4-SMD, No Lead | Tape & Reel (TR) | Obsolete | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 505mcd Red, 1015mcd Green, 325mcd Blue | Round with Flat Top | 2.90mm Dia | 2.06V Red, 3.32V Green, 3.32V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 628nm Red, 526nm Green, 472nm Blue | 639nm Red, 519nm Green, 467nm Blue | - | - | - | 4-PLCC | 3.60mm L x 3.20mm W |
|
|
SPR-325MVWT31LED GREEN/RED DIFFUSED 5MM T/H |
0 |
|
Datasheet | - | Radial - 3 Leads | Cut Tape (CT) | Obsolete | Green, Red | Common Cathode | White | Diffused | 10mcd Green, 6.3mcd Red | Round with Domed Top | 3.20mm Dia | 2.1V Green, 2V Red | 10mA Green, 10mA Red | 40° | Through Hole | - | 563nm Green, 650nm Red | - | - | - | 5mm | - |
|
ALMD-EG3D-VX002LED RED CLEAR SMD |
0 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Red | Standard | Red | Clear | 6750mcd | Round with Domed Top | - | 2.1V | 20mA | 30° | Surface Mount | 626nm | 634nm | - | - | - | SMD | 4.20mm L x 4.20mm W |
|

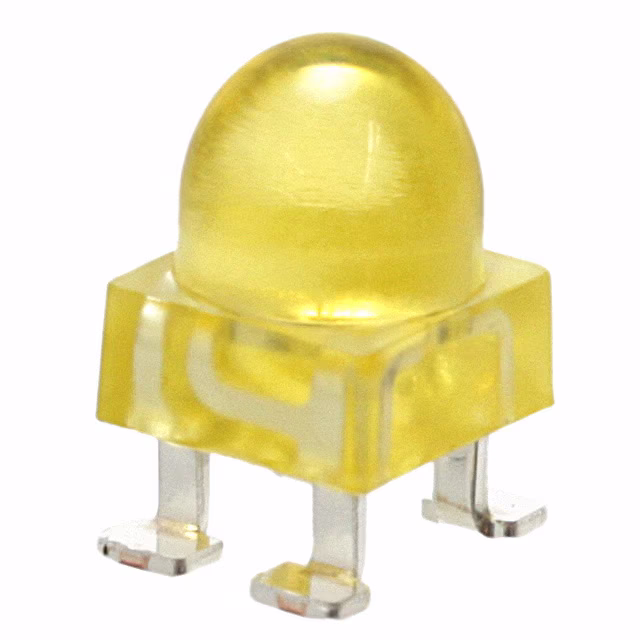

ALMD-EL3D-VX002LED AMBER CLEAR SMD |
0 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Amber | Standard | Amber | Clear | 6750mcd | Round with Domed Top | - | 2.1V | 20mA | 30° | Surface Mount | 590nm | 594nm | - | - | - | SMD | 4.20mm L x 4.20mm W |
|
HLMP-6820-F001SLED GREEN DIFFUSED AXIAL T/H |
0 |
|
Datasheet | HLMP-6xxx | Axial, Right Angle Bend (2.54mm Center) | Bulk | Active | Green | Standard | - | Diffused | 2mcd | Round with Domed Top | 1.78mm Dia | 5V | 10mA | 90° | Through Hole | 569nm | 565nm | - | - | - | Axial | 2.08mm L x 2.21mm W |
|
HSMB-C190LED BLUE CLEAR CHIP SMD |
0 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Blue | Standard | Colorless | Clear | 6mcd | Rectangle with Flat Top | 1.00mm x 0.80mm | 3.8V | 20mA | 170° | Surface Mount | 466nm | 428nm | - | - | - | Chip LED | 1.60mm L x 0.80mm W |
|
HSMB-C170LED BLUE DIFFUSED CHIP SMD |
0 |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Blue | Standard | White | Diffused | 6mcd | Rectangle with Domed Top | 2.60mm x 1.00mm | 3.8V | 20mA | 170° | Surface Mount | 466nm | 428nm | - | - | - | Chip LED | 2.00mm L x 1.25mm W |
|
HSMB-C150LED BLUE DIFFUSED CHIP SMD |
0 |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Blue | Standard | White | Diffused | 6mcd | Rectangle with Flat Top | 2.00mm x 1.60mm | 3.8V | 20mA | 170° | Surface Mount | 466nm | 428nm | - | - | - | Chip LED | 3.20mm L x 1.60mm W |
|
HSMN-A400-S8PM2LED BLUE CLEAR 4PLCC SMD |
0 |
|
Datasheet | - | 4-PLCC | Tape & Reel (TR) | Obsolete | Blue | Standard | Colorless | Clear | 392mcd | Round with Flat Top | 2.20mm Dia | 3.8V | 30mA | 120° | Surface Mount | 470nm | 468nm | - | - | - | 4-PLCC | 3.20mm L x 2.80mm W |
|
HLMP-EG1H-Y10DDLED RED CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Red | Standard | - | Clear | 15150mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | 20mA | 15° | Through Hole | 626nm | 634nm | - | - | - | T-1 3/4 | - |
|
|
HLMP-EL3G-VW0DDLED AMBER CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Amber | Standard | Colorless | Clear | 5700mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | 20mA | 30° | Through Hole | 590nm | 594nm | - | - | - | T-1 3/4 | - |
|
HLMP-Q102-N0011LED RED DIFFUSED GULL WING SMD |
0 |
|
Datasheet | HLMP-Qxxx | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Red | Standard | Red | Diffused | 100mcd | Round with Domed Top | 1.78mm Dia | 1.9V | 20mA | 35° | Surface Mount | 644nm | 654nm | - | - | - | Gull Wing | 2.09mm L x 2.21mm W |
|
ASMW-LA00-AUW0ELED AMBER 2835 SMD |
0 |
|
Datasheet | - | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | Amber | Standard | - | - | - | - | - | 2.3V | 150mA | 120° | Surface Mount | 589nm | 592nm | - | - | - | 2835 | 2.80mm L x 3.40mm W |
|
|
ASMW-LH00-AUW0ELED RED-ORANGE 2835 SMD |
0 |
|
Datasheet | - | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | Red-Orange | Standard | - | - | - | - | - | - | 150mA | 120° | Surface Mount | 613nm | 620nm | - | - | - | 2835 | 2.80mm L x 3.40mm W |
|
|
MV8W00LED WHITE CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Obsolete | White | Standard | Colorless | Clear | 2500mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.8V | 20mA | 20° | Through Hole | - | 550nm | - | - | - | T-1 3/4 | - |
|
HLMT-QH00-T0011LED RED CLEAR DOME LENS TYPE SMD |
0 |
|
Datasheet | SunPower | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 500mcd | Round with Domed Top | 1.78mm Dia | 2V | 20mA | 15° | Surface Mount | 615nm | 621nm | - | - | - | Dome Lens Type | 1.99mm L x 2.21mm W |
|
|
HLMT-QL00-T0021LED AMBER CLR DOME LENS TYPE SMD |
0 |
|
Datasheet | SunPower | 2-SMD, Yoke Bend | Tape & Reel (TR) | Active | Amber | Standard | Colorless | Clear | 1000mcd | Round with Domed Top | 1.78mm Dia | 2V | 20mA | 15° | Surface Mount | 590nm | 592nm | - | - | - | Dome Lens Type | 1.99mm L x 2.21mm W |
