LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBP-602VK2DISPLAY 7SEG 0.56" DBL RED 18DIP |
329 |
|
Datasheet | LBP-602 A/K2 | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Cathode | Red | 1.9V | 10mA | 36mcd | 650nm | 896mW |
|
LB-602EK2TWO DIGIT LED NUMERIC DISPLAYS: |
254 |
|
Datasheet | K2 | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Cathode | Orange | 2.05V | 20mA | 90mcd | 610nm | 1.04W |
|
|
HDSP-F303-GH000S4,0.4S,ALLNGAPYEL,CC |
4,973 |
|
Datasheet | HDSP-Fxxx | 10-DIP (0.300", 7.62mm) | Tube | Active | - | 1 | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Yellow | 2.2V | 20mA | 0.8mcd | 583nm | 80mW |
|
|
HDSP-F301-GH000S4,0.4S,ALLNGAPYEL,CA |
3,010 |
|
Datasheet | HDSP-Fxxx | 10-DIP (0.300", 7.62mm) | Tube | Active | - | 1 | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Yellow | 2.2V | 20mA | 0.8mcd | 583nm | 80mW |
|
LA-401ADDISPLAY 7-SEG 0.4" SGL RED 10DIP |
123 |
|
Datasheet | - | 10-DIP (0.300", 7.62mm) | Bulk | Active | - | 1 | 0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 2.05V | 10mA | 90mcd | 626nm | 65mW |
|
LB-602MK2DISPLAY 7SEG 0.56" DBL GRN 18DIP |
258 |
|
Datasheet | - | 18-DIP | Bulk | Active | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 25mcd | 563nm | 65mW |
|
|
LB-602VA2DISPLAY 7SEG 0.56" DBL RED 18DIP |
377 |
|
Datasheet | - | 18-DIP | Bulk | Active | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 16mcd | 650nm | 60mW |
|
HDSP-4601DISPLAY 7SEG 0.43" SGL GRN 14DIP |
1,713 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm), 11 Leads | Tube | Active | - | 1 | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) | 0.43" (11.00mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 4mcd | 566nm | 105mW |
|

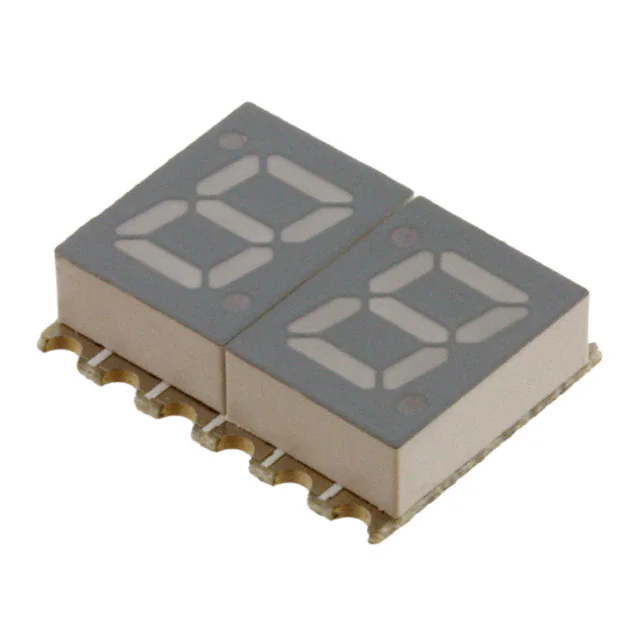

HDSM-293CDISPLAY 7SEG 0.28" DBL RED 10SMD |
5,911 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.394" H x 0.594" W x 0.148" D (10.00mm x 15.10mm x 3.75mm) | 0.28" (7.00mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 7.5mcd | 632nm | 65mW |
|
|
HDSM-291CDISPLAY 7SEG 0.28" DBL RED 10SMD |
2,077 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.394" H x 0.594" W x 0.148" D (10.00mm x 15.10mm x 3.75mm) | 0.28" (7.00mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 7.5mcd | 632nm | 65mW |
|

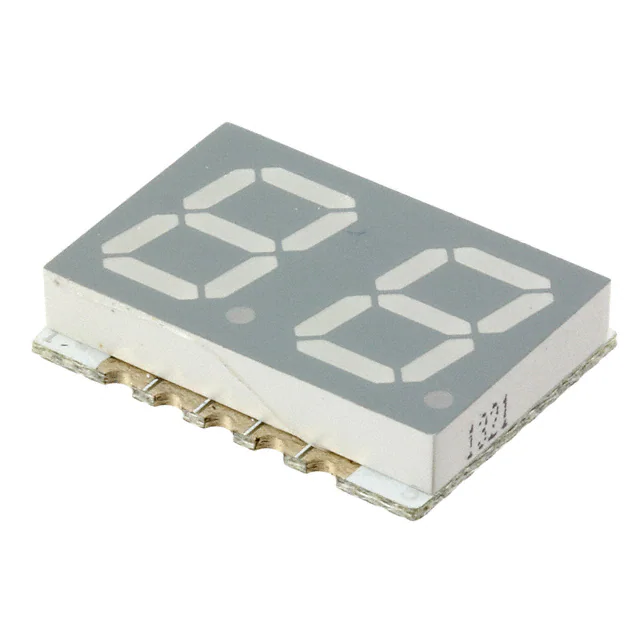

HDSM-443CDISPLAY 7SEG 0.39" DBL RED 10SMD |
1,498 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.512" H x 0.772" W x 0.148" D (13.00mm x 19.60mm x 3.75mm) | 0.39" (10.00mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 14.3mcd | 644nm | 65mW |
|
|
LF-3011VASINGLE DIGIT SURFACE MOUNT LED N |
504 |
|
Datasheet | A | 10-SMD, Gull Wing | Tape & Reel (TR) | Active | - | 1 | 0.433" H x 0.268" W x 0.197" D (11.00mm x 6.80mm x 5.00mm) | 0.32" (8.00mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 10mcd | 650nm | 320mW |
|

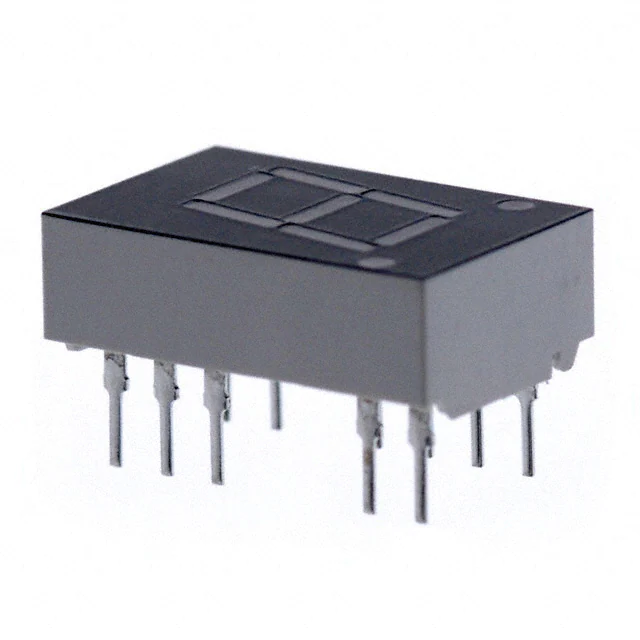

HDSP-E101DISPLAY 7SEG 0.43" SGL RED 14DIP |
1,312 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm), 10 Leads | Tube | Active | - | 1 | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) | 0.43" (11.00mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 3.9mcd | 645nm | 37mW |
|
HDSM-541CDISPLAY 7SEG 0.56" DBL RED 10SMD |
1,499 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.669" H x 0.984" W x 0.148" D (17.00mm x 25.00mm x 3.75mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 16mcd | 632nm | 65mW |
|
HDSP-U113DISPLAY 7SEG 0.31" SGL RED 10DIP |
3,140 |
|
Datasheet | - | 10-DIP (0.209", 5.30mm) | Tube | Active | - | 1 | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Cathode | Red | 1.7V | 5mA | 3.6mcd | 645nm | 37mW |
|
LB-603VFDISPLAY 7SEG 0.56" TRP RED 28DIP |
134 |
|
Datasheet | LB-603 FP | 28-DIP (0.600", 15.24mm) | Bulk | Active | - | 3 | 0.709" H x 1.476" W x 0.315" D (18.00mm x 37.50mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 16mcd | 650nm | 960mW |
|
LBP-602MK2DISPLAY 7SEG 0.56" DBL GRN 18DIP |
191 |
|
Datasheet | LBP-602 A/K2 | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Cathode | Green | 1.9V | 20mA | 100mcd | 572nm | 56mW |
|
LB-402VNDISPLAY 7-SEG 0.4" DBL RED 18DIP |
253 |
|
Datasheet | - | 18-DIP | Bulk | Active | - | 2 | 0.709" H x 0.945" W x 0.276" D (18.00mm x 24.00mm x 7.00mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Red | 2V | 10mA | 16mcd | 650nm | 40mW |
|
LB-602EA2DISPLAY 7SEG 0.56" DBL ORG 18DIP |
239 |
|
Datasheet | LB-602 A/K2 | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Anode | Orange | 2.05V | 25mA | 90mcd | 610nm | 65mW |
|
HDSP-0760DISPLAY 7-SEG 0.29" SGL RED 8DIP |
123 |
|
Datasheet | HDSP-076x | 8-DIP (0.600", 15.20mm) | Tray | Active | - | 1 | 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) | 0.29" (7.37mm) | 7-Segment | Common Anode | Red | - | 10mA | 0.06mcd ~ 1.17mcd | 635nm | 573mW |
