LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDSP-A101DISPLAY 7-SEG 0.3" SGL RED 10DIP |
2,960 |
|
Datasheet | - | 10-DIP (0.200", 5.08mm) | Tube | Active | - | 1 | 0.500" H x 0.300" W x 0.390" D (12.70mm x 7.62mm x 9.91mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 3.6mcd | 645nm | 37mW |
|
HDSP-H103DISPLAY 7SEG 0.56" SGL RED 10DIP |
1,955 |
|
Datasheet | - | 10-DIP (0.600", 15.24mm) | Tube | Active | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 1.7V | 5mA | 4.2mcd | 645nm | 37mW |
|

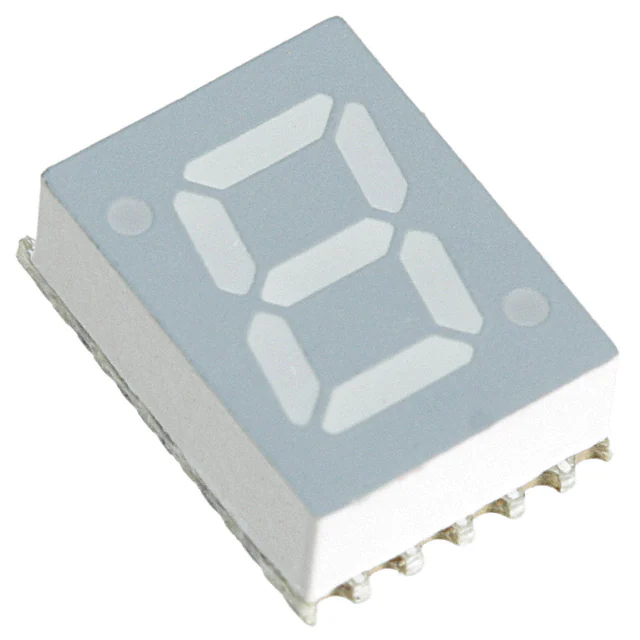

HDSM-281BDISPLAY 7SEG 0.28" SGL BLU 12SMD |
2,801 |
|
Datasheet | - | 12-SMD, No Lead, 11 Pads | Tape & Reel (TR) | Active | - | 1 | 0.394" H x 0.295" W x 0.124" D (10.00mm x 7.50mm x 3.15mm) | 0.28" (7.00mm) | 7-Segment | Common Anode | Blue | 3.3V | 20mA | 6mcd | 462nm | 100mW |
|
5082-7651DISPLAY 7SEG 0.43" SGL RED 14DIP |
2,302 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm), 11 Leads | Tube | Active | - | 1 | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) | 0.43" (11.00mm) | 7-Segment | Common Anode | Red | 2.1V | 20mA | 1.12mcd | 635nm | 105mW |
|
HDSP-5621DISPLAY 7SEG 0.56" DBL GRN 18DIP |
1,208 |
|
Datasheet | HDSP-562x | 18-DIP (0.600", 15.24mm) | Tube | Active | - | 2 | 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 2.5mcd | 566nm | 105mW |
|
HDSP-A27CDISP 14SEG 0.54" DBL RED 18DIP |
804 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 2 | 0.827" H x 0.992" W x 0.276" D (21.00mm x 25.20mm x 7.00mm) | 0.54" (13.72mm) | 14-Segment, Alphanumeric | Common Cathode | Red | 1.9V | 20mA | 18mcd ~ 36mcd | 635nm | - |
|
HDSP-A22CDISP 14SEG 0.54" DBL RED 18DIP |
369 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 2 | 0.827" H x 0.992" W x 0.276" D (21.00mm x 25.20mm x 7.00mm) | 0.54" (13.72mm) | 14-Segment, Alphanumeric | Common Anode | Red | 1.9V | 20mA | 18mcd ~ 36mcd | 635nm | - |
|
HDSM-431WDISPLAY 7SEG 0.39" SGL WHT 10SMD |
3,218 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.512" H x 0.386" W x 0.148" D (13.00mm x 9.80mm x 3.75mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | White | 2.95V | 5mA | 40mcd | - | 39mW |
|
HDSP-513EDISPLAY 7SEG 0.56" SGL RED 10DIP |
3,335 |
|
Datasheet | - | 10-DIP (0.600", 15.24mm) | Bulk | Active | - | 1 | 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2.05V | 20mA | 4.1mcd | 635nm | 60mW |
|
HDSP-515ADISPLAY 7SEG 0.56" SGL RED 10DIP |
3,657 |
|
- |
- | 10-DIP (0.600", 15.24mm) | Tube | Active | - | 1 | 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 1.85V | 20mA | 6.5mcd | 660nm | 30mW |
|
HDSP-521GDISPLAY 7SEG 0.56" DBL GRN 18DIP |
12,014 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm) | Tube | Active | - | 2 | 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2V | 10mA | 3.5mcd | 568nm | 105mW |
|
HDSP-523EDISPLAY 7SEG 0.56" DBL RED 18DIP |
3,083 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm) | Tube | Active | - | 2 | 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2.05V | 20mA | 4mcd | 640nm | 62.5mW |
|
HDSP-523GDISPLAY 7SEG 0.56" DBL GRN 18DIP |
1,033 |
|
Datasheet | - | 18-DIP (0.600", 15.24mm) | Tube | Active | - | 2 | 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 2V | 10mA | 3.5mcd | 568nm | 105mW |
|
|
HDSM-433CDISPLAY 7SEG 0.39" SGL RED 10SMD |
7,784 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.512" H x 0.386" W x 0.148" D (13.00mm x 9.80mm x 3.75mm) | 0.39" (10.00mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 14.3mcd | 644nm | 65mW |
|
HDSM-431CDISPLAY 7SEG 0.39" SGL RED 10SMD |
3,658 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.512" H x 0.386" W x 0.148" D (13.00mm x 9.80mm x 3.75mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 14.3mcd | 644nm | 65mW |
.jpg)
|
HDSM-533CDISPLAY 7SEG 0.56" SGL RED 10SMD |
4,984 |
|
Datasheet | - | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.669" H x 0.492" W x 0.148" D (17.00mm x 12.50mm x 3.75mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 16mcd | 632nm | 65mW |
|
HDSM-283CDISPLAY 7SEG 0.28" SGL RED 12SMD |
1,700 |
|
Datasheet | - | 12-SMD, No Lead, 11 Pads | Tape & Reel (TR) | Active | - | 1 | 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) | 0.28" (7.00mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 7.5mcd | 632nm | 65mW |
|
HDSP-7403DISPLAY 7-SEG 0.3" SGL YLW 10DIP |
3,705 |
|
Datasheet | HDSP-740x | 10-DIP (0.200", 5.08mm) | Tube | Active | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Yellow | 2.2V | 20mA | 2.74mcd | 583nm | 80mW |
|
HDSP-7401DISPLAY 7-SEG 0.3" SGL YLW 10DIP |
1,183 |
|
Datasheet | HDSP-740x | 10-DIP (0.200", 5.08mm) | Tube | Active | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Yellow | 2.2V | 20mA | 2.74mcd | 583nm | 80mW |
|
HDSP-7803DISPLAY 7SEG 0.3" SGL GRN 10DIP |
1,586 |
|
Datasheet | HDSP-780x | 10-DIP (0.200", 5.08mm) | Tube | Active | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 6.8mcd | 566nm | 105mW |
