Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS3L110DBQRIC ETHERNET SWITCH QUAD 16SSOP |
2,036 |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Networking | 2:1 | SPDT | 4 | 8Ohm | 3V ~ 3.6V | - | 500MHz | 10/100 Base-T | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
|
TS3L4892RHHRIC ETHERNET SWITCH 16X8 36VQFN |
3,929 |
|
Datasheet | - | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Networking | 2:1 | SPDT | 11 | 6Ohm | 3V ~ 3.6V | - | 1.1GHz | 10/100,1000 Base-T, LVDS, LVPECL | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-VQFN (6x6) |
|
HD3SS3202IRSVRHD3SS3202IRSV |
3,847 |
|
Datasheet | - | 16-UFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 2 | 8Ohm | 3V ~ 3.6V | - | 8GHz | Bi-Directional | -40°C ~ 85°C | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|
NCN1188MUTAGIC USB SWITCH 3:1 AUD/MHL 12UQFN |
2,833 |
|
Datasheet | - | 12-UFQFN | Tape & Reel (TR) | Active | Audio, USB, Video | 3:1 | - | 2 | 7.5Ohm | 2.7V ~ 5.5V | - | 1.8GHz | HDMI, USB 2.0, USB 3.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UQFN (1.7x2) |
|
|
HD3SS3202IRSVTTWO-CHANNEL DIFFERENTIAL 2:1/1:2 |
784 |
|
Datasheet | - | 16-UFQFN | Tape & Reel (TR) | Active | USB | 2:1, 1:2 | - | 2 | 8Ohm | 3V ~ 3.6V | - | 8GHz | Bi-Directional | -40°C ~ 85°C | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|

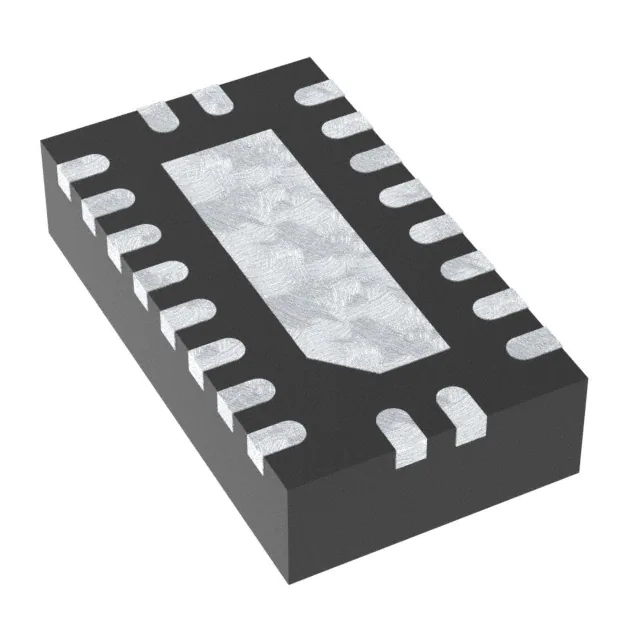

HD3SS3212RKSRIC MUX 2:1 8 OHM 20VQFN |
6,278 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 8Ohm | 2.7V ~ 3.6V | - | 8GHz | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 20-VQFN (2.5x4.5) |
|
ISL54216IRTZIC USB SWITCH SP3T DUAL 12TQFN |
2,087 |
|
Datasheet | - | 12-WFQFN Exposed Pad | Tube | Active | USB, UART | 3:1 | SP3T | 2 | 15Ohm | 2.7V ~ 4.6V | - | 800MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-TQFN (3x3) |
|
FSA2275AUMXDPDT HIFI AUDIO SWITCH |
34,912 |
|
Datasheet | - | 12-UFQFN | Tape & Reel (TR) | Active | Audio | 2:2 | DPDT | 1 | 1Ohm | 2.5V ~ 5.5V | - | 230MHz | Break-Before-Make | -40°C ~ 80°C (TA) | - | - | Surface Mount | 12-UMLP (1.8x1.8) |
|
PI3USB42ZMEXIC USB SWITCH HS 10UQFN |
5,751 |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 1 | 5.5Ohm | 1.8V ~ 4.3V | - | 770MHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
PI3USB102ZLEXIC SW USB 2.0 10-TQFN |
80,471 |
|
Datasheet | - | 10-WFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 1 | 5Ohm | 2.7V ~ 4.2V | - | 810MHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TQFN (1.3x1.6) |
|
CBTL04083ABS,518IC MUX/DEMUX 2:1 4CH 42HVQFN |
8,081 |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort, PCIe, USB | 2:1 | - | 4 | 6Ohm (Typ) | 3V ~ 3.6V | - | 8.3GHz | Bi-Directional, SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-HVQFN (3.5x9) |
|
|
HD3SS3212IRKSRIC MUX 2:1 8 OHM 20VQFN |
10,080 |
|
Datasheet | - | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 8Ohm | 2.7V ~ 3.6V | - | 8GHz | - | -40°C ~ 85°C | - | - | Surface Mount | 20-VQFN (2.5x4.5) |
|
|
FSA2276UMXIC AUDIO SWITCH DPDT 12UMLP |
5,245 |
|
Datasheet | - | 12-UFQFN | Tape & Reel (TR) | Active | Audio | 2:2 | DPDT | 1 | 1Ohm | 1.65V ~ 5.5V | - | 380MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UMLP (1.8x1.8) |
|
HD3SS3412RUARIC MUX 2:1 8 OHM 42WQFN |
2,766 |
|
Datasheet | - | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 2:1 | - | 4 | 8Ohm | 3V ~ 3.6V | - | 8GHz | Bi-Directional | 0°C ~ 70°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
TS3L500AERHURIC ETHERNET SWITCH 16X8 56WQFN |
1,000 |
|
Datasheet | - | 56-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Networking | 2:1 | SPDT | 11 | 8Ohm | 3V ~ 3.6V | - | 950MHz | 10/100,1000 Base-T, LVDS, LVPECL | -40°C ~ 85°C (TA) | - | - | Surface Mount | 56-WQFN (5x11) |
|
FSUSB74MPXIC USB MUX/SWITCH 16MLP |
21,402 |
|
Datasheet | - | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 4:1 | - | 1 | 9Ohm | 2.5V ~ 4.4V | - | - | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-MLP (3x3) |
|
CBTL06GP213EEJIC MUX 6CH DISPLAY PORT 50TFBGA |
5,120 |
|
Datasheet | - | 50-TFBGA | Tape & Reel (TR) | Active | DisplayPort, PCIe, Video | 2:1 | - | 6 | 10Ohm | 3V ~ 3.6V | - | 9.5GHz | Bi-Directional, HDMI | -40°C ~ 105°C (TA) | - | - | Surface Mount | 50-TFBGA (5x5) |
|
|
PI3A114-AZLEXIC MUX/DEMUX 4:1 250MHZ 10QFQFN |
36,663 |
|
Datasheet | - | 10-WFQFN | Tape & Reel (TR) | Active | - | 4:1 | - | 1 | 5Ohm | 1.8V ~ 3.3V | - | 250MHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TQFN (1.3x1.6) |
|
|
PI3USB103ZLEXIC USB SWITCH HS 10TQFN |
2,599 |
|
Datasheet | - | 10-WFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 1 | 3Ohm (Typ) | 2.7V ~ 4.4V | - | - | Bi-Directional, USB 2.0 | - | - | - | Surface Mount | 10-TQFN (1.3x1.6) |
|
PI3PCIE3212ZBEXIC MUX/DEMUX 2:1 3.3V 20TQFN |
19,736 |
|
Datasheet | PCI Express® (PCIe) | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 2:1 | - | 2 | - | 3V ~ 3.6V | - | 8.1GHz | Bi-Directional, SATA, USB 3.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-QFN (2.5x4.5) |
