Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEX8734-AB80BI GIC PCIE SWITCH 676FCBGA |
43 |
|
Datasheet | ExpressLane™ | - | Tray | Active | PCI Express® | - | - | 32 | - | - | - | - | Configurable | -40°C ~ 85°C | - | - | Surface Mount | 676-FCBGA (27x27) |
|
NLHV4157NDFT2GNEGATIVE VOLTAGE SPDT SWITCH |
4,065 |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | - | - | SPDT | 1 | 5Ohm | 4.5V ~ 12V | - | 200MHz | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
NX3DV42GU10XIC USB 2.0 SWITCH HS 10XQFN |
48,988 |
|
Datasheet | - | 10-XFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 950MHz | Break-Before-Make, USB 2.0 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.3x1.6) |
|
NX3DV42GU,115IC USB SWITCH DPDT XQFN10 |
21,859 |
|
Datasheet | - | 10-XFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 950MHz | Break-Before-Make, USB 2.0 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.4x1.8) |
|
TS3USB31RSERIC USB SWITCH 1X1 8UQFN |
12,733 |
|
Datasheet | - | 8-UFQFN | Tape & Reel (TR) | Active | USB | - | DPST | 1 | 10Ohm | 3V ~ 4.3V | - | 1.22GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UQFN (1.5x1.5) |
|
TS5USBA224RSWRIC SW USB/AUDIO DPDT 10UQFN |
11,276 |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Active | Audio, USB | - | DPDT | 1 | 5Ohm (Audio), 7Ohm (USB) | 2.7V ~ 5.5V | - | 650MHz | Depop, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
TS3USB3000RSERIC USB SW/MHL DPDT 10UQFN |
10,702 |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 9Ohm | 2.7V ~ 4.3V | - | 6.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (2.0x1.5) |
|
TS3DS10224RUKRIC MUX/DMUX DIFF 2:4 20WQFN |
9,663 |
|
Datasheet | - | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Video | 4:2 | - | 1 | 19Ohm | 3V ~ 3.6V | - | 1.2GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-WQFN (3x3) |
|
|
TS3USB31ERSERIC USB SWITCH 480MBPS 8QFN |
29,784 |
|
Datasheet | - | 8-UFQFN | Tape & Reel (TR) | Active | USB | - | DPST | 1 | 10Ohm | 2.25V ~ 4.3V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UQFN (1.5x1.5) |
|
TPS66120YBGRSOURCE AND SINK POWER MULTIPEXER |
24,044 |
|
Datasheet | - | 28-XFBGA, DSBGA | Tape & Reel (TR) | Active | - | - | - | 1 | - | 2.85V ~ 3.6V | - | - | - | -10°C ~ 85°C (TA) | - | - | Surface Mount | 28-DSBGA (1.61x2.81) |
|
TS3USB221DRCRIC USB SWITCH DUAL 1X2 10SON |
21,065 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 6Ohm | 2.3V ~ 3.6V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSON (3x3) |
|
|
TS3USB221EDRCRIC USB SWITCH DUAL 1X2 10-SON |
3,793 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 6Ohm | 2.3V ~ 3.6V | - | 1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSON (3x3) |
|
NX3DV642GU,115IC SWITCH TPDT DIFF XQFN24 |
13,000 |
|
Datasheet | - | 24-XFQFN | Tape & Reel (TR) | Last Time Buy | MIPI | - | 3PDT | 1 | 14Ohm | 2.65V ~ 4.3V | - | 950MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-XQFN (2.5x3.4) |
|
NX3DV2567HR,115IC ANLG SWITCH 4PDT 16HXQFN |
6,125 |
|
Datasheet | - | 16-XFQFN Exposed Pad | Tape & Reel (TR) | Active | Networking | - | 4PDT | 1 | 700mOhm | 1.4V ~ 4.3V | - | 160MHz | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-HXQFN (3x3) |
|
TS3USBA225RUTRIC USB SWITCH DP3T 12UQFN |
14,364 |
|
Datasheet | - | 12-UFQFN | Tape & Reel (TR) | Active | USB | 3:1 | SP3T | 2 | 3.5Ohm (Audio), 7.5Ohm (USB) | 2.7V ~ 5V | - | 1.9GHz | LVDS, MIPI, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UQFN (1.7x2) |
|
TMUX646ZECRIC MULTIPLEXER |
9,651 |
|
Datasheet | - | 36-UFBGA | Tape & Reel (TR) | Active | Networking, Telecommunications | 2:1 | SPDT | 10 | 9Ohm, 10Ohm | 1.5V ~ 5.5V | - | 6GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-NFBGA (2.45x2.45) |
|
PI3USB102GZLEXIC USB 2.0 SWITCH 2:1 10TQFN |
10,181 |
|
Datasheet | - | 10-WFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 1 | 5Ohm | 3V ~ 5.5V | - | 1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TQFN (1.3x1.6) |
|
PI3USB221EZUAEXIC USB2 SWITCH 3V UQFN2015-10 |
10,748 |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 1 | 6Ohm | 2.3V ~ 3.6V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C | - | - | Surface Mount | 10-UQFN (1.5x2) |
|

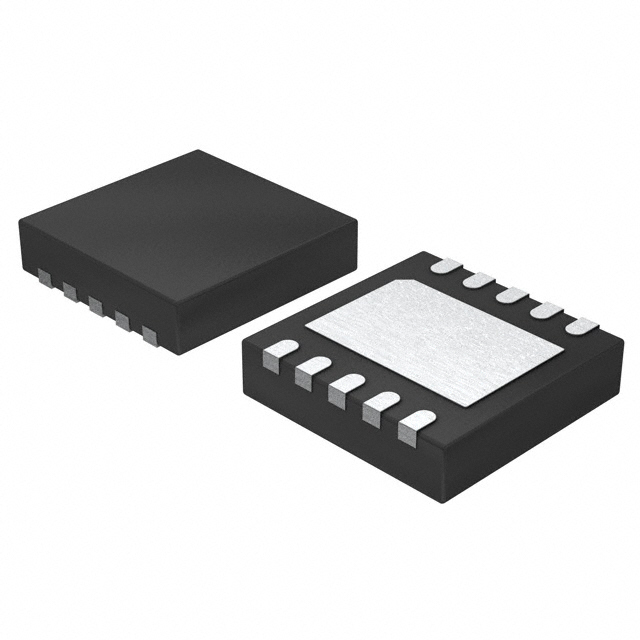

PI3USB221AZWEXIC USB2 SWITCH 3V UDFN3030-10 |
7,265 |
|
Datasheet | - | 10-UFDFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 1 | 6Ohm | 2.3V ~ 3.6V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C | - | - | Surface Mount | 10-UDFN (3x3) |
|
|
PI3USB221EZWEXIC USB2 SWITCH 3V UDFN3030-10 |
39,661 |
|
Datasheet | - | 10-UFDFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 1 | 6Ohm | 2.3V ~ 3.6V | - | 1.1GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C | - | - | Surface Mount | 10-UDFN (3x3) |
