Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCAS030.XFUSE AUTO 30A 32VAC 32VDC |
287 |
|
Datasheet | JCASE® | Bulk | Active | Requires Holder | Automotive | 30 A | 32 V | 32 V | Slow Blow | - | - | - | - | Pink | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
0506015.MXEPFUSE CERAMIC 15A 600VDC 3AB 3AG |
814 |
|
Datasheet | 506 | Bulk | Active | Through Hole | Cartridge, Ceramic | 15 A | - | 600 V | Fast Blow | 10kA | 61.0 | CE, cURus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0487008.MXPFUSE CERAMIC 8A 420VAC 420VDC |
557 |
|
Datasheet | 487 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 8 A | 420 V | 420 V | Fast Blow | 200A AC, 300A DC | 65.0 | TUV, UR | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
 Series.jpg)
|
0505016.MXEPFUSE CERM 16A 500VAC 500VDC 3AB |
1,668 |
|
Datasheet | 505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 16 A | 500 V | 500 V | Fast Blow | 50kA AC, 20kA DC | 51.0 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0202005.HFUSE BOARD MOUNT 5A 250VAC 2DIP |
121 |
|
Datasheet | FLAT-PAK® 202 | Tube | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 250 V | - | Fast Blow | 50A | 4.68 | CSA, UL | -55°C ~ 125°C | - | 0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm) | |
|
051401.6MXPFUSE CERAMIC 1.6A 500VAC 3AB 3AG |
549 |
|
Datasheet | 514 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1.6 A | 500 V | - | Fast Blow | 5kA | 1.92 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0514004.MXEPFUSE CERAMIC 4A 500VAC 3AB 3AG |
354 |
|
Datasheet | 514 | Bulk | Active | Through Hole | Cartridge, Ceramic | 4 A | 500 V | - | Fast Blow | 5kA | 12.43 | CE, cURus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0154.062DRLFUSE BRD MNT 62MA 125VAC/VDC SMD |
248 |
|
Datasheet | OMNI-BLOK® 154L | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A | 1.9E-4 | UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
80815000000FUSE BRD MT 5A 250VAC 250VDC RAD |
1,971 |
|
Datasheet | TE5® 808 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 250 V | 250 V | Fast Blow | 100A AC, 10kA DC | 1.1584 | cULus | -40°C ~ 125°C | - | 0.350" L x 0.183" W x 0.350" H (8.90mm x 4.65mm x 8.90mm) | |
|
0202002.URGFUSE BOARD MOUNT 2A 250VAC 2SMD |
229 |
|
Datasheet | FLAT-PAK® 202 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | - | Fast Blow | 50A | 1.07 | CSA, UL | -55°C ~ 125°C | - | 0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm) | |
|

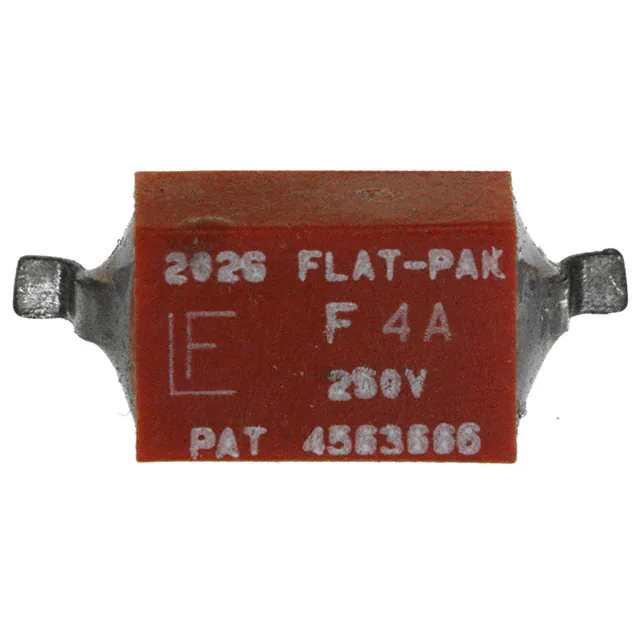

0202004.HXGFUSE BOARD MOUNT 4A 250VAC 2SMD |
200 |
|
Datasheet | FLAT-PAK® 202 | Tube | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 250 V | - | Fast Blow | 50A | 3.0 | CSA, UL | -55°C ~ 125°C | - | 0.372" L x 0.250" W x 0.165" H (9.45mm x 6.35mm x 4.19mm) | |
|
0507008.MXEPFUSE CERAMIC 8A 650VDC AXIAL |
895 |
|
Datasheet | 507 | Bulk | Active | Through Hole | Cartridge, Ceramic | 8 A | - | 650 V | - | 150A | 53.0 | CE, cURus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0507001.MXPFUSE CERAMIC 1A 650VDC SMD |
668 |
|
Datasheet | 507 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1 A | - | 650 V | - | 150A | 0.6 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
051406.3MXPFUSE CERAMIC 6.3A 500VAC 3AB 3AG |
243 |
|
Datasheet | 514 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | 500 V | - | Fast Blow | 5kA | 13.5 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0881070.URFFUSE BOARD MOUNT 70A 75VDC 2SMD |
2,366 |
|
Datasheet | 881 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 70 A | - | 75 V | - | 1.5kA | 1250.0 | cURus | -55°C ~ 100°C | - | 0.441" L x 0.394" W x 0.268" H (11.20mm x 10.00mm x 6.80mm) | |
|
153.5395.6102FUSE AUTO 100A 32VDC AUTO LINK |
108 |
|
Datasheet | BF2 | Bulk | Active | Bolt Mount | Automotive | 100 A | - | 32 V | Slow Blow | 2kA | 46800.0 | - | - | Yellow | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) | |
|
|
051412.5MXPFUSE CERM 12.5A 500VAC 3AB 3AG |
327 |
|
Datasheet | 514 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 12.5 A | 500 V | - | Fast Blow | 5kA | 114.0 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0507002.MXPFUSE CERAMIC 2A 650VDC SMD |
189 |
|
Datasheet | 507 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2 A | - | 650 V | - | 150A | 2.3 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0977005.MXEPFUSE CERM 5A 500VAC 450VDC 5X20 |
494 |
|
Datasheet | 977 | Bulk | Active | Through Hole | Cartridge, Ceramic | 5 A | 500 V | 450 V | Slow Blow | 100A AC, 200A DC | 91.0 | CE, PSE, SEMKO | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
|
09773.15MXEPFUSE CERM 3.15A 500VAC 450VDC |
264 |
|
Datasheet | 977 | Bulk | Active | Through Hole | Cartridge, Ceramic | 3.15 A | 500 V | 450 V | Slow Blow | 100A AC, 200A DC | 58.0 | CE, PSE, SEMKO | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) |
