Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
80716300000FUSE BOARD MNT 6.3A 300VAC RAD |
530 |
|
Datasheet | TE7 807 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 6.3 A | 300 V | - | Slow Blow | 100A | 1063.2 | cULus, KC, PSE/JET | -40°C ~ 125°C | - | 0.488" L x 0.252" W x 0.362" H (12.40mm x 6.40mm x 9.20mm) | |
|
0160.750MRFUSE BOARD MNT 750MA 250VAC 2SMD |
1,493 |
|
Datasheet | NANO²® 160 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 250 V | - | Slow Blow | 50A | 2.25 | cULus | -55°C ~ 125°C | - | 0.429" L x 0.189" W x 0.189" H (10.90mm x 4.80mm x 4.80mm) | |
|
142.7010.5402FUSE AUTO 40A 58VDC AUTO LINK |
1,466 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 40 A | - | 58 V | - | 1kA | 6800.0 | cURus | - | Green | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
37000400410FUSE BOARD MNT 40MA 250VAC RAD |
848 |
|
Datasheet | TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 40 mA | 250 V | - | Fast Blow | 50A | 2.0E-4 | cURus, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
37000500430FUSE BOARD MNT 50MA 250VAC RAD |
963 |
|
Datasheet | TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 50 mA | 250 V | - | Fast Blow | 50A | 3.5E-4 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
37000630430FUSE BOARD MNT 63MA 250VAC RAD |
194 |
|
Datasheet | TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 63 mA | 250 V | - | Fast Blow | 50A | 5.0E-4 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
37000800430FUSE BOARD MNT 80MA 250VAC RAD |
172 |
|
Datasheet | TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 80 mA | 250 V | - | Fast Blow | 50A | 0.0014 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
30300500001FUSE BRD MNT 50MA 125VAC 63VDC |
1,473 |
|
Datasheet | TR3® 303 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 50 mA | 125 V | 63 V | Fast Blow | 50A | 7.0E-5 | CSA, UL | -25°C ~ 70°C | - | 0.236" Dia x 0.315" H (6.00mm x 8.00mm) | |
|
0224.375HXPFUSE GLASS 375MA 250VAC 125VDC |
71 |
|
Datasheet | 224 | Bulk | Active | Through Hole | Cartridge, Glass | 375 mA | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 0.171 | CE, CSA, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
0157.375DRTFUSE BRD MT 375MA 125VAC/VDC SMD |
2,825 |
|
Datasheet | NANO²® 157T | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 375 mA | 125 V | 125 V | Slow Blow | 50A | 0.101 | cULus | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
|
35813150029FUSE CERM 3.15A 500VAC 3AB 3AG |
638 |
|
Datasheet | 358 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3.15 A | 500 V | - | Slow Blow | 1.5kA | 18.0 | cULus | -25°C ~ 85°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|

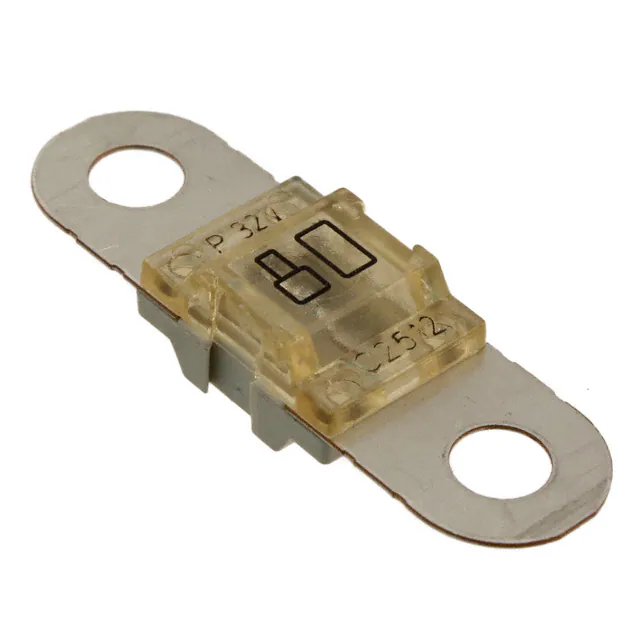

153.5631.5801FUSE AUTO 80A 32VDC AUTO LINK |
195 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 32 V | Slow Blow | 2kA | 25600.0 | ISO, UL | - | Clear | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
0299030.TXNFUSE AUTO 30A 32VDC BLADE MAX |
102 |
|
Datasheet | MAXI® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | Slow Blow | 1kA | 4070.0 | DIN, ISO, SAE | -40°C ~ 125°C | Green | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
80812500000FUSE BRD MNT 2.5A 250VAC 450VDC |
1,438 |
|
Datasheet | TE5® 808 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 250 V | 450 V | Fast Blow | 100A AC, 10kA DC | 0.0898 | cULus | -40°C ~ 125°C | - | 0.350" L x 0.183" W x 0.350" H (8.90mm x 4.65mm x 8.90mm) | |
|
08851.25DRFUSE BOARD MNT 1.25A 500VDC 2SMD |
1,466 |
|
Datasheet | NANO²® 885 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.25 A | - | 500 V | - | 100A | 1.25 | cURus, TUV | -40°C ~ 85°C | - | 0.428" L x 0.188" W x 0.188" H (10.86mm x 4.78mm x 4.78mm) | |
|
0460.750URFUSE BRD MT 750MA 125VAC/VDC SMD |
235 |
|
Datasheet | PICO® 460 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Slow Blow | 50A | 0.76 | CSA, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
23016300021PFUSE CERAMIC 6.3A 250VAC 5X20MM |
200 |
|
Datasheet | 230 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | 250 V | - | Fast Blow | 1kA | 5.0 | - | -25°C ~ 70°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
80812000000FUSE BRD MT 2A 250VAC 450VDC RAD |
1,930 |
|
Datasheet | TE5® 808 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | 450 V | Fast Blow | 100A AC, 10kA DC | 0.061 | cULus | -40°C ~ 125°C | - | 0.350" L x 0.183" W x 0.350" H (8.90mm x 4.65mm x 8.90mm) | |
|
80812000440FUSE BRD MT 2A 250VAC 450VDC RAD |
101 |
|
Datasheet | TE5® 808 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | 450 V | Fast Blow | 100A AC, 10kA DC | 0.061 | cULus | -40°C ~ 125°C | - | 0.350" L x 0.183" W x 0.350" H (8.90mm x 4.65mm x 8.90mm) | |
|
0326.100HXPFUSE CERM 100MA 250VAC 3AB 3AG |
105 |
|
Datasheet | 326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 100 mA | 250 V | - | Slow Blow | 100A | 0.087 | CE | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
