Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0297002.HFUSE AUTOMOTIVE 2A 32VDC BLADE |
100 |
|
Datasheet | MINI® 297 | Box | Active | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 2.8 | UR | -40°C ~ 125°C | Gray | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297004.HFUSE AUTOMOTIVE 4A 32VDC BLADE |
99 |
|
Datasheet | MINI® 297 | Box | Active | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | 17.0 | UR | -40°C ~ 125°C | Pink | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297020.LFUSE AUTO 20A 32VDC BLADE MINI |
87 |
|
Datasheet | MINI® 297 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 380.0 | UR | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0327030.LXSFUSE AUTO 30A 32VDC BLADE MICRO |
50 |
|
Datasheet | MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | - | 1kA | 1028.0 | - | -40°C ~ 125°C | Green | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0297015.HFUSE AUTO 15A 32VDC BLADE MINI |
42 |
|
Datasheet | MINI® 297 | Box | Active | Requires Holder | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 270.0 | UR | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0327005.LXSFUSE AUTO 5A 32VDC BLADE 50 PC |
40 |
|
Datasheet | MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 5 A | - | 32 V | - | 1kA | 17.0 | - | -40°C ~ 125°C | Orange | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|

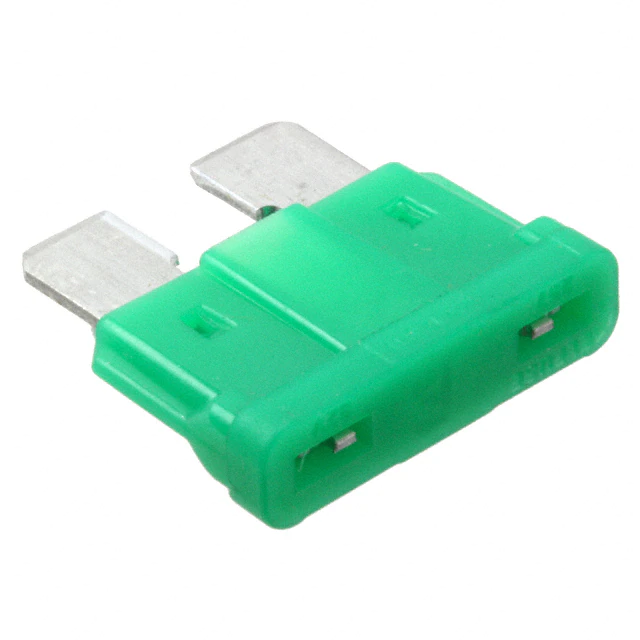

0287030.LFUSE AUTO 30A 32VDC BLADE ATO |
17 |
|
Datasheet | ATOF® | Box | Active | Requires Holder | Automotive | 30 A | - | 32 V | - | - | 1510.0 | CSA, UL | -40°C ~ 105°C | Green | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
02351.25HXPFUSE GLASS 1.25A 250VAC 5X20MM |
2,911 |
|
Datasheet | 235 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | - | Fast Blow | 100A | 1.085 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0235.700HXPFUSE GLASS 700MA 250VAC 5X20MM |
16 |
|
Datasheet | 235 | Bulk | Active | Requires Holder | Cartridge, Glass | 700 mA | 250 V | - | Fast Blow | 35A | 0.156 | CE, CSA, KC, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
36916300440FUSE BOARD MNT 6.3A 300VAC RAD |
16 |
|
Datasheet | TE5® 369 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 6.3 A | 300 V | - | Slow Blow | 50A | 126.0 | cULus | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
0311005.HFUSE GLASS 5A 32VAC 3AB 3AG |
5,167 |
|
Datasheet | AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 32 V | - | Fast Blow | - | - | CSA, UL | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0208003.MXPFUSE GLASS 3A 350VAC 2AG |
7,100 |
|
Datasheet | 208 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 350 V | - | Fast Blow | 100A | 4.62 | CE, cURus, PSE | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
021502.5MXESPPFUSE CERAMIC 2.5A 250VAC 5X20MM |
10 |
|
Datasheet | 215SP | Bulk | Active | Through Hole | Cartridge, Ceramic | 2.5 A | 250 V | - | Slow Blow | 1.5kA | 22.29 | CE, CQC, CSA, KC, PSE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0225005.HXUPFUSE GLASS 5A 125VAC 2AG |
16 |
|
Datasheet | 225 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 125 V | - | Fast Blow | 100A | 17.0 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
0312020.HXPFUSE GLASS 20A 32VAC 3AB 3AG |
25 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 20 A | 32 V | - | Fast Blow | 300A | 1029.0 | CSA, cULus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0318006.HXPFUSE GLASS 6A 250VAC 3AB 3AG |
20 |
|
Datasheet | 318 | Bulk | Active | Through Hole | Cartridge, Glass | 6 A | 250 V | - | Fast Blow | 200A | 118.0 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
|
0215004.MXESPPFUSE CERAMIC 4A 250VAC 5X20MM |
5,550 |
|
Datasheet | 215SP | Bulk | Active | Through Hole | Cartridge, Ceramic | 4 A | 250 V | - | Slow Blow | 1.5kA | 46.96 | CE, CQC, CSA, KC, PSE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
02133.15TXPFUSE GLASS 3.15A 250VAC 5X20MM |
3 |
|
Datasheet | 213 | Bulk | Active | Requires Holder | Cartridge, Glass | 3.15 A | 250 V | - | Slow Blow | 35A | 202.0 | BSI, CCC, CE, CSA, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
022903.5MXPFUSE GLASS 3.5A 250VAC 125VDC |
4,298 |
|
Datasheet | 229 | Bulk | Active | Requires Holder | Cartridge, Glass | 3.5 A | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 110.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
0217005.VXPFUSE GLASS 5A 250VAC 5X20MM |
5 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Fast Blow | 50A | 42.795 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
