Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0473.500MRT1LFUSE BRD MT 500MA 125VAC/VDC AXL |
5,312 |
|
Datasheet | PICO® II 473 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Slow Blow | 50A | 0.21 | CSA, UR | -55°C ~ 125°C | - | 0.135" Dia x 0.280" L (3.43mm x 7.11mm) | |
|
0224001.HXPFUSE GLASS 1A 250VAC 125VDC 2AG |
8 |
|
Datasheet | 224 | Bulk | Active | Through Hole | Cartridge, Glass | 1 A | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 2.22 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
0217.063MXPFUSE GLASS 63MA 250VAC 5X20MM |
2,977 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 63 mA | 250 V | - | Fast Blow | 35A | 5.6E-4 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0453012.MRFUSE BRD MNT 12A 65VAC 65VDC SMD |
13 |
|
- |
NANO²® 453 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 12 A | 65 V | 65 V | Fast Blow | 50A | 47.97 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0312.150HXPFUSE GLASS 150MA 250VAC 3AB 3AG |
13 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 150 mA | 250 V | - | Fast Blow | 35A | 0.0055 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
047303.5MRT1LFUSE BRD MNT 3.5A 125VAC/VDC AXL |
4 |
|
Datasheet | PICO® II 473 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.5 A | 125 V | 125 V | Slow Blow | 50A | 26.8 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.135" Dia x 0.280" L (3.43mm x 7.11mm) | |
|

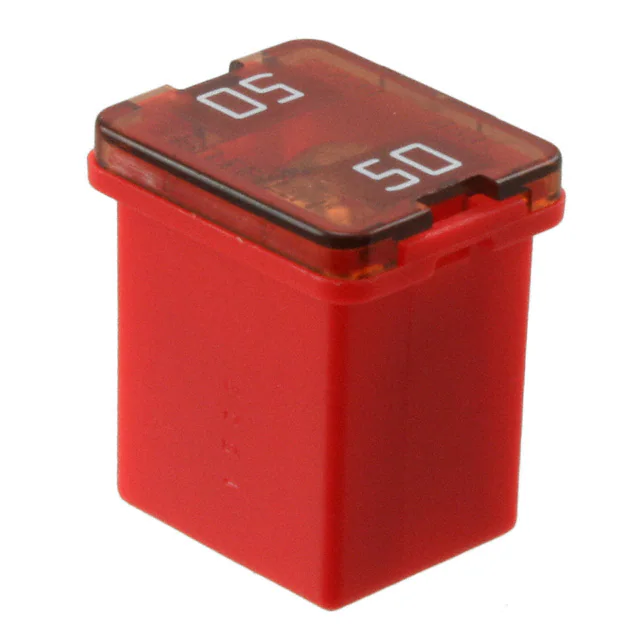

0895050.ZFUSE AUTO 50A 58VDC AUTO LINK |
5,807 |
|
Datasheet | JCASE® | Bulk | Active | Requires Holder | Automotive | 50 A | - | 58 V | - | 1kA | 4880.0 | UL | -40°C ~ 125°C | Red | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
|
0224.500MXPFUSE GLASS 500MA 250VAC 125VDC |
4,193 |
|
Datasheet | 224 | Bulk | Active | Through Hole | Cartridge, Glass | 500 mA | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 0.365 | CE, CSA, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
0477012.MXPFUSE CERM 12A 500VAC 400VDC 5X20 |
9,139 |
|
Datasheet | 477 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 12 A | 500 V | 400 V | Slow Blow | 100A AC, 500A DC | 576.0 | cULus, PSE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0216.100MXEPFUSE CERAMIC 100MA 250VAC 5X20MM |
7,065 |
|
Datasheet | 216 | Bulk | Active | Through Hole | Cartridge, Ceramic | 100 mA | 250 V | - | Fast Blow | 1.5kA | 0.0045 | CCC, CE, CSA, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
0312.187HXPFUSE GLASS 187MA 250VAC 3AB 3AG |
5,910 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 187 mA | 250 V | - | Fast Blow | 35A | 0.0128 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0313.062HXPFUSE GLASS 62MA 250VAC 3AB 3AG |
12 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 62 mA | 250 V | - | Slow Blow | 35A | 0.021 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
142.5631.6202FUSE AUTO 200A 58VDC AUTO LINK |
9 |
|
Datasheet | BF1 | Bulk | Active | Bolt Mount | Automotive | 200 A | - | 58 V | Slow Blow | 1kA | 126000.0 | cUL | - | Violet | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
4998080.M-M6FUSE AUTO 80A 70VDC AUTO LINK |
2,502 |
|
Datasheet | MIDI® | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 70 V | - | 2.5kA | 10400.0 | UR | -40°C ~ 125°C | White | 0.630" L x 0.496" W x 0.323" H (16.00mm x 12.60mm x 8.20mm) | |
|
0326.010HXPFUSE CERAMIC 10MA 250VAC 3AB 3AG |
6,809 |
|
Datasheet | 326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 mA | 250 V | - | Slow Blow | 100A | 0.00148 | CE, CSA, ICC, PSE, SEMKO, TUV, UR, VDE | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0313.010HXPFUSE GLASS 10MA 250VAC 3AB 3AG |
8,539 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 10 mA | 250 V | - | Slow Blow | 35A | 1.21E-4 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0506020.MXPFUSE CERAMIC 20A 600VDC 3AB 3AG |
8 |
|
Datasheet | 506 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 20 A | - | 600 V | Fast Blow | 10kA | 105.0 | CE, cURus | -55°C ~ 125°C | - | 0.252" Dia x 1.250" L (6.40mm x 31.75mm) | |
|
0273.400HFUSE BOARD MNT 400MA 125VAC/VDC |
17 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 400 mA | 125 V | 125 V | Fast Blow | 10kA | 0.0251 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
0273.500HFUSE BOARD MNT 500MA 125VAC/VDC |
6,709 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Fast Blow | 10kA | 0.0716 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
0273.050HFUSE BRD MT 50MA 125VAC/VDC RAD |
16 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 50 mA | 125 V | 125 V | Fast Blow | 10kA | 6.66E-5 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) |
