Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

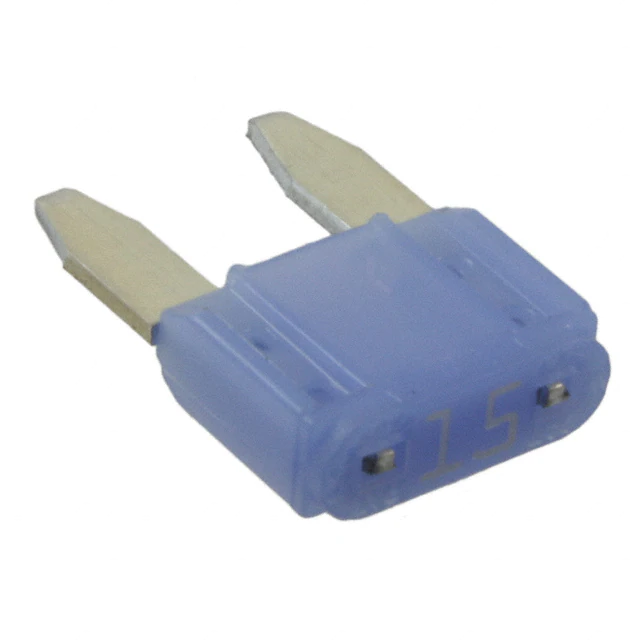

0MIN015.VFUSE AUTO 15A 32VAC 32VDC BLADE |
28 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 15 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
39614000000FUSE BOARD MNT 4A 125VAC RADIAL |
516 |
|
Datasheet | TE5® 396 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | - | Slow Blow | 100A | 38.4 | cUL, PSE/JET, UL | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
0217.315TXPFUSE GLASS 315MA 250VAC 5X20MM |
60 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 315 mA | 250 V | - | Fast Blow | 35A | 0.11 | CCC, CE, CSA, KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
031302.8HXPFUSE GLASS 2.8A 250VAC 3AB 3AG |
100 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 2.8 A | 250 V | - | Slow Blow | 100A | 170.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0230005.HXPFUSE GLASS 5A 125VAC/VDC AXIAL |
80 |
|
Datasheet | 230 | Bulk | Active | Through Hole | Cartridge, Glass | 5 A | 125 V | 125 V | Slow Blow | 400A | 267.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
0230.250HXPFUSE GLASS 250MA 250VAC 125VDC |
67 |
|
Datasheet | 230 | Bulk | Active | Through Hole | Cartridge, Glass | 250 mA | 250 V | 125 V | Slow Blow | 350A AC, 10kA DC | 0.216 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
031301.6HXPFUSE GLASS 1.6A 250VAC 3AB 3AG |
94 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.6 A | 250 V | - | Slow Blow | 100A | 49.6 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
02191.25MXAPFUSE GLASS 1.25A 250VAC 5X20MM |
755 |
|
Datasheet | 219XA | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | - | Slow Blow | 150A | 27.15 | CCC, CE, CSA, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217.315HXPFUSE GLASS 315MA 250VAC 5X20MM |
30 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 315 mA | 250 V | - | Fast Blow | 35A | 0.11 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
39505000000FUSE BRD MNT 500MA 125VAC RADIAL |
41 |
|
Datasheet | TE5® 395 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | - | Fast Blow | 100A | 0.025 | cUL, UL | -40°C ~ 85°C | - | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | |
|
37311000430FUSE BOARD MNT 1A 250VAC RADIAL |
38 |
|
Datasheet | TR5® 373 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | - | Fast Blow | 50A | 0.125 | CSA, cULus | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
38318000000FUSE BOARD MNT 8A 300VAC RADIAL |
43 |
|
Datasheet | TR5® 383 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 8 A | 300 V | - | Slow Blow | 50A | 180.0 | cURus, PSE | -65°C ~ 125°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
0217.160HXPFUSE GLASS 160MA 250VAC 5X20MM |
71 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 160 mA | 250 V | - | Fast Blow | 35A | 0.01 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0315015.HXPFUSE GLASS 15A 32VAC 3AB 3AG |
85 |
|
Datasheet | 315 | Bulk | Active | Through Hole | Cartridge, Glass | 15 A | 32 V | - | Slow Blow | 300A | 1870.0 | UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) | |
|
0216.315TXPFUSE CERAMIC 315MA 250VAC 5X20MM |
76 |
|
Datasheet | 216 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 315 mA | 250 V | - | Fast Blow | 1.5kA | 0.01 | CCC, CE, CSA, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0215002.TXPFUSE CERAMIC 2A 250VAC 5X20MM |
100 |
|
Datasheet | 215 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2 A | 250 V | - | Slow Blow | 1.5kA | 11.68 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0251012.HAT1LFUSE BRD MNT 12A 32VAC 32VDC AXL |
351 |
|
Datasheet | PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 12 A | 32 V | 32 V | Fast Blow | 50A AC, 300A DC | 45.2 | CSA, cURus | -55°C ~ 125°C | - | 0.125" Dia x 0.280" L (3.18mm x 7.10mm) | |
|
|
0251.375MAT1LFUSE BRD MT 375MA 125VAC/VDC AXL |
82 |
|
Datasheet | PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 375 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.0296 | CSA, cURus | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
0239.300HXPFUSE GLASS 300MA 250VAC 5X20MM |
71 |
|
Datasheet | 239 | Bulk | Active | Requires Holder | Cartridge, Glass | 300 mA | 250 V | - | Slow Blow | 35A | 0.615 | CE, CSA, KC, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0313003.HXIDPFUSE GLASS 3A 250VAC 3AB 3AG |
59 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Slow Blow | 100A | 200.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
