Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0313.500HXIDPFUSE GLASS 500MA 250VAC 3AB 3AG |
68 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Slow Blow | 35A | 2.55 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0224002.HXPFUSE GLASS 2A 250VAC 125VDC 2AG |
48 |
|
Datasheet | 224 | Bulk | Active | Through Hole | Cartridge, Glass | 2 A | 250 V | 125 V | Fast Blow | 100A AC, 10kA DC | 1.5 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
0251.500HAT1LFUSE BRD MT 500MA 125VAC/VDC AXL |
186 |
|
Datasheet | PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.0598 | CCC, CSA, cURus, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
0251007.HAT1LFUSE BRD MNT 7A 125VAC/VDC AXIAL |
119 |
|
Datasheet | PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 7 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 10.4 | CSA, cURus, TUV | -55°C ~ 125°C | - | 0.125" Dia x 0.280" L (3.18mm x 7.10mm) | |
|
37201250001FUSE BRD MNT 125MA 250VAC RADIAL |
1,074 |
|
Datasheet | TR5® 372 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 125 mA | 250 V | - | Slow Blow | 35A | 0.1094 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0239.750HXPFUSE GLASS 750MA 250VAC 5X20MM |
52 |
|
Datasheet | 239 | Bulk | Active | Requires Holder | Cartridge, Glass | 750 mA | 250 V | - | Slow Blow | 35A | 5.425 | CE, CSA, KC, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0MIN004.VFUSE AUTO 4A 32VAC 32VDC BLADE |
71 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 4 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Pink | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
021901.6MXAPFUSE GLASS 1.6A 250VAC 5X20MM |
67 |
|
Datasheet | 219XA | Bulk | Active | Requires Holder | Cartridge, Glass | 1.6 A | 250 V | - | Slow Blow | 150A | 44.2 | CCC, CE, CSA, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

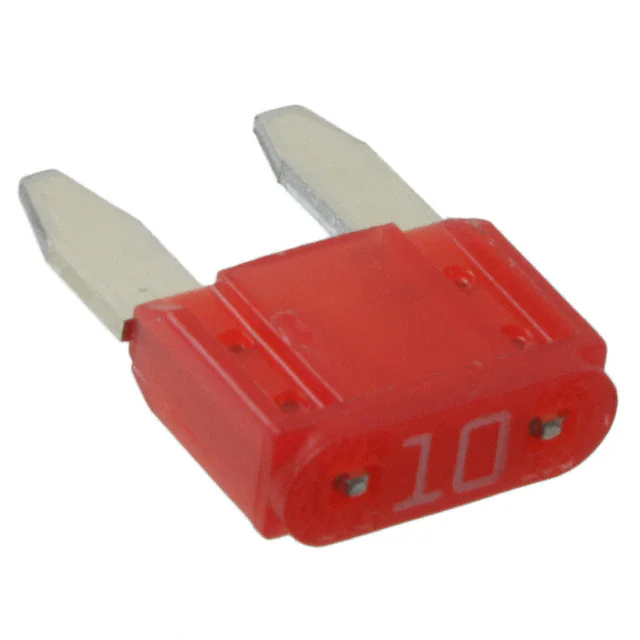

0MIN010.VFUSE AUTO 10A 32VAC 32VDC BLADE |
40 |
|
Datasheet | MINI® | Bulk | Active | Requires Holder | Automotive | 10 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Red | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0213005.TXPFUSE GLASS 5A 250VAC 5X20MM |
52 |
|
Datasheet | 213 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Slow Blow | 50A | 314.0 | BSI, CCC, CE, CSA, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0230006.HXPFUSE GLASS 6A 125VAC/VDC AXIAL |
90 |
|
Datasheet | 230 | Bulk | Active | Through Hole | Cartridge, Glass | 6 A | 125 V | 125 V | Slow Blow | 400A | 380.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
023002.5HXPFUSE GLASS 2.5A 250VAC 125VDC |
80 |
|
Datasheet | 230 | Bulk | Active | Through Hole | Cartridge, Glass | 2.5 A | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 50.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
|
031301.8HXPFUSE GLASS 1.8A 250VAC 3AB 3AG |
79 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.8 A | 250 V | - | Slow Blow | 100A | 58.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0230.500HXPFUSE GLASS 500MA 250VAC 125VDC |
75 |
|
Datasheet | 230 | Bulk | Active | Through Hole | Cartridge, Glass | 500 mA | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 1.16 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
38221000430FUSE BOARD MNT 10A 250VAC RADIAL |
37 |
|
Datasheet | TR5® 382 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 10 A | 250 V | - | Slow Blow | 100A | 365.0 | cURus, PSE/JET | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
0251.750HAT1LFUSE BRD MT 750MA 125VAC/VDC AXL |
200 |
|
Datasheet | PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.153 | CSA, cURus, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
0217.500TXPFUSE GLASS 500MA 250VAC 5X20MM |
100 |
|
Datasheet | 217 | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Fast Blow | 35A | 0.215 | CCC, CE, CSA,KC, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0251004.HAT1LFUSE BRD MNT 4A 125VAC/VDC AXIAL |
138 |
|
Datasheet | PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 2.45 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
0251001.HAT1LFUSE BRD MNT 1A 125VAC/VDC AXIAL |
199 |
|
Datasheet | PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.256 | CCC, CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
025103.5HAT1LFUSE BRD MNT 3.5A 125VAC/VDC AXL |
155 |
|
Datasheet | PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 1.58 | CSA, cURus, PSE, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) |
