Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C44UUGT6165M81KCAP FILM 165UF 10% 1.3KVDC RAD |
6,703 |
|
Datasheet | Radial, Can | 165 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.055" (103.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6360M84KCAP FILM 360UF 10% 1.1KVDC RAD |
9,426 |
|
Datasheet | Radial, Can | 360 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6240M81KCAP FILM 240UF 10% 1.1KVDC RAD |
9,025 |
|
Datasheet | Radial, Can | 240 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.055" (103.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
C44PMGR6150RASKCAP FILM 150UF 10% 1.1KVDC RAD |
6,846 |
|
Datasheet | Radial, Can | 150 µF | ±10% | 480V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 7.835" (199.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44UVGT6150M85KCAP FILM 150UF 10% 1.8KVDC RAD |
5,157 |
|
Datasheet | Radial, Can | 150 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.827" (148.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
C4DENPQ5470A8TKCAP FILM 47UF 10% 1KVDC RADIAL |
3,245 |
|
Datasheet | Radial, Can | 47 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 3.307" Dia (84.00mm) | 2.598" (66.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESL |
|
|
C44UVGT6175M86KCAP FILM 175UF 10% 1.8KVDC RAD |
6,754 |
|
Datasheet | Radial, Can | 175 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.165" (182.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44PLGR6300RASJCAP FILM 300UF 5% 700VDC RADIAL |
6,036 |
|
Datasheet | Radial, Can | 300 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44HKGR6100AASJCAP FILM 100UF 5% 1KVDC RADIAL |
7,920 |
|
Datasheet | Radial, Can | 100 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 5.669" (144.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
C44AFGR6250ZA0JCAP FILM 250UF 5% 400VDC RADIAL |
2,022 |
|
Datasheet | Radial, Can | 250 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.984" (152.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
C44PXGR5470RASKCAP FILM 47UF 10% 2.3KVDC RADIAL |
4,872 |
|
Datasheet | Radial, Can | 47 µF | ±10% | 1000V (1kV) | 2300V (2.3kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PLGR6600RASJCAP FILM 600UF 5% 700VDC RAD |
6,928 |
|
Datasheet | Radial, Can | 600 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C9TS6MD5548AARXCAP FILM 54.8UF 440VAC RADIAL |
2,023 |
|
Datasheet | Radial, Can | 54.8 µF | -5%, +15% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 6.378" (162.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
C44AJGR6100ZA0JCAP FILM 100UF 5% 700VDC RADIAL |
3,331 |
|
Datasheet | Radial, Can | 100 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.362" (187.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
C44PUGR5470RASKCAP FILM 47UF 10% 1.7KVDC RADIAL |
8,585 |
|
Datasheet | Radial, Can | 47 µF | ±10% | 780V | 1700V (1.7kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PMGR6250RASJCAP FILM 250UF 5% 1.1KVDC RAD |
6,921 |
|
Datasheet | Radial, Can | 250 µF | ±5% | 480V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44UQGT6700M52KCAP FILM 700UF 10% 1.1KVDC RAD |
3,801 |
|
Datasheet | Radial, Can | 700 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.7 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.220" (158.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|

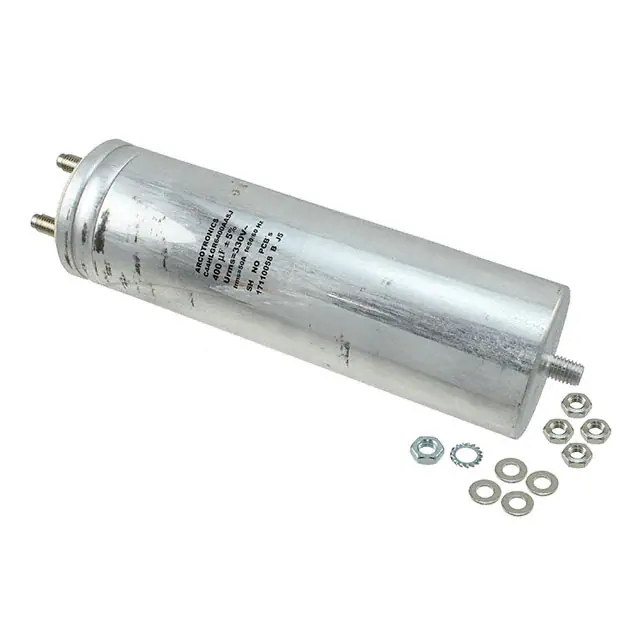

C44HLGR6400AASJCAP FILM 400UF 5% 700VDC RADIAL |
4,244 |
|
Datasheet | Radial, Can | 400 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.606" (244.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
|
C44UQGT6760M87KCAP FILM 760UF 10% 1.1KVDC RAD |
1 |
|
Datasheet | Radial, Can | 760 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 10.709" (272.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UOGT6900M51KCAP FILM 900UF 10% 900VDC RADIAL |
9,937 |
|
Datasheet | Radial, Can | 900 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
