Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AUOBW5160M3HJFILM, RADIAL, METALLIZED POLYPRO |
16 |
|
Datasheet | Radial - 4 Leads | 16 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R76PR41004030JCAP FILM 1UF 5% 630VDC RADIAL |
8,828 |
|
Datasheet | Radial | 1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4AFABW4300T3JKFILM, POWER, METALLIZED POLYPROP |
4,628 |
|
Datasheet | Radial - 4 Leads | 3 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
C4AQJLW5220P38JCAP FILM 22UF 5% 700VDC RADIAL |
3 |
|
Datasheet | Radial - 4 Leads | 22 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4.7 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 0.992" (25.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
R75MW468050H2JCAP FILM 6.8UF 5% 400VDC RADIAL |
2,171 |
|
Datasheet | Radial | 6.8 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AEOBW5160A3HJCAP FILM 16UF 5% 900VDC RADIAL |
9,111 |
|
Datasheet | Radial | 16 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.9 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

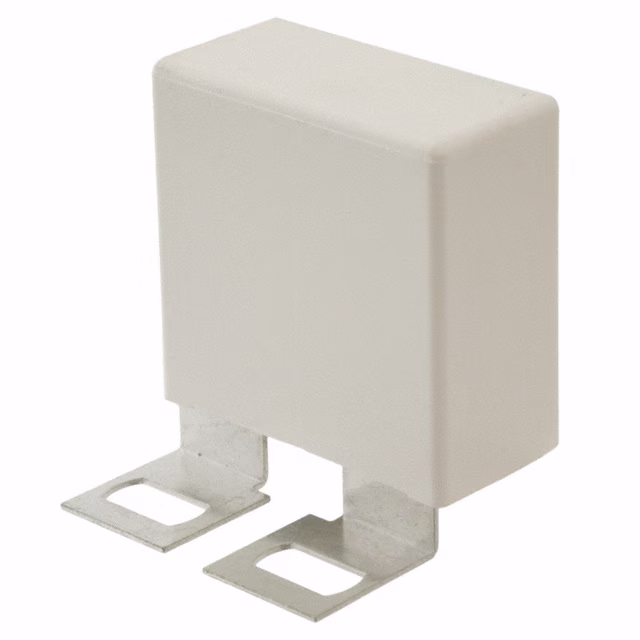

C4BSPBX3470ZBFJCAP FILM 0.47UF 5% 1.2KVDC SCREW |
3,877 |
|
Datasheet | Rectangular Box | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
EZP-E1B156MTACAP FILM 15UF 10% 1.1KVDC RADIAL |
2,261 |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.039" (51.80mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
EZP-V1B306MTSCAP FILM 30UF 10% 1100V RADIAL |
24 |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 9.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C4AEJBW5150A3FJCAP FILM 15UF 5% 700VDC RADIAL |
5,671 |
|
Datasheet | Radial | 15 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4BSPBX3680ZAFJCAP FILM 0.68UF 5% 1.2KVDC SCREW |
5,709 |
|
Datasheet | Rectangular Box | 0.68 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4AQCBW5550A3MJCAP FILM 55UF 5% 650VDC RADIAL |
9,535 |
|
Datasheet | Radial - 4 Leads | 55 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
EZP-Q33226MTACAP FILM 22UF 5% 330VAC RADIAL |
4,545 |
|
Datasheet | Radial - 4 Leads | 22 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.988" (50.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
SMC10.2224J100A31TR16CAP FILM 0.22UF 5% 100VDC SMD |
5,398 |
|
Datasheet | Nonstandard | 0.22 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
|
C4AQJBW5450M36JCAP FILM 45UF 5% 700VDC RADIAL |
9,556 |
|
Datasheet | Radial - 4 Leads | 45 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.819" (46.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AEHBW5200A3FJCAP FILM 20UF 5% 600VDC RADIAL |
5,587 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AFBBW4400F3OKFILM CAP AC, 4 UF, 10%, 600 VAC |
1 |
|
Datasheet | Radial - 4 Leads | 4 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 12.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
F161ZS475K063VCAP FILM 4.7UF 10% 63VDC SMD |
7,580 |
|
Datasheet | Nonstandard | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
C4BSNBX4150ZAJJCAP FILM 1.5UF 5% 1KVDC SCREW |
4,096 |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4AQJBW5200P3JJCAP FILM 20UF 5% 700VDC RADIAL |
3,738 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 5.2 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
