Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4BSNBX4150ZBJJCAP FILM 1.5UF 5% 1KVDC SCREW |
48 |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
EZP-V60506MTCCAP FILM 50UF 10% 600V RADIAL |
100 |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 2.244" L x 0.984" W (57.00mm x 25.00mm) | 1.614" (41.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C4BSNBX4100ZAFJCAP FILM 1UF 5% 1KVDC SCREW |
78 |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AQGBW5700P3LKCAP FILM 70UF 10% 450VDC RADIAL |
30 |
|
Datasheet | Radial - 4 Leads | 70 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 2.3 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
C4ATJBW5100A3MJCAP FILM 10UF 5% 700VDC RADIAL |
64 |
|
Datasheet | Radial - 4 Leads | 10 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

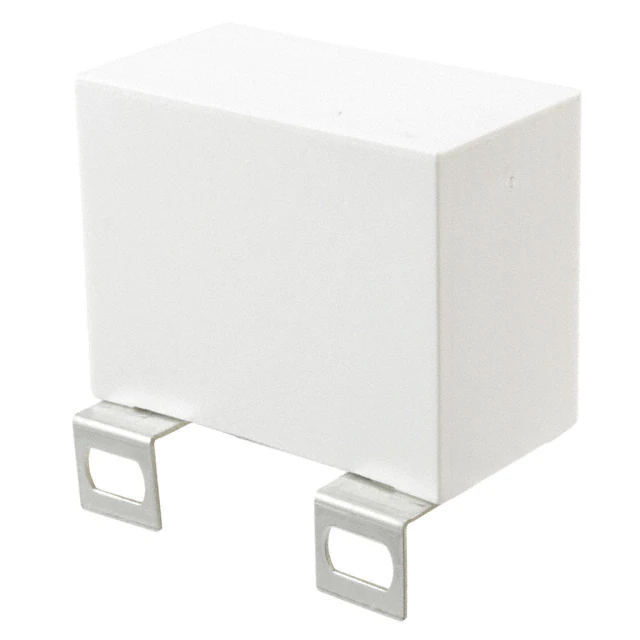

C4BSPBX4200ZAMJCAP FILM 2UF 5% 1.2KVDC SCREW |
84 |
|
Datasheet | Rectangular Box | 2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4BTHBX4500ZAFJCAP FILM 5UF 5% 600VDC SCREW |
61 |
|
Datasheet | Rectangular Box | 5 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4BSPBX4100ZBJJCAP FILM 1UF 5% 1.2KVDC SCREW |
32 |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
EZP-V80506MTSCAP FILM 50UF 10% 800V RADIAL |
100 |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.047" (52.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
R76PW433050H3JCAP FILM 3.3UF 5% 630VDC RAD |
47 |
|
Datasheet | Radial | 3.3 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 1.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4ATJBU4220A3EJCAP FILM 2.2UF 5% 700VDC RADIAL |
21 |
|
Datasheet | Radial | 2.2 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
R75GW533050H0JCAP FILM 33UF 5% 160VDC RADIAL |
35 |
|
Datasheet | Radial | 33 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 1.4 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
C4AQIBW5550A3NJCAP FILM 55UF 5% 800VDC RADIAL |
9,902 |
|
Datasheet | Radial - 4 Leads | 55 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C4AF9EW5500F3BKFILM CAP AC, 1 UF, 10%, 310 VAC |
53 |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | 310V | 620V | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
EZP-V80406MTCCAP FILM 40UF 10% 800V RADIAL |
53 |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.1 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.047" (52.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C4AF1EW5470A3AKCAP FILM 47UF 10% 500VDC RADIAL |
92 |
|
Datasheet | Radial - 4 Leads | 47 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
R586Y447000T0KCAP FILM 600VAC(X1) 4.7 UF 10% |
22 |
|
Datasheet | Radial | 4.7 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.819" (46.20mm) | PC Pins | 2.067" (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
EZP-E1D206MTACAP FILM 20UF 10% 1.3KVDC RADIAL |
93 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 11.1 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.244" (57.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
C4ATGBW5200A3MJCAP FILM 20UF 5% 450VDC RADIAL |
33 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C4ATFBW5400A3NJCAP FILM 40UF 5% 400VDC RADIAL |
19 |
|
Datasheet | Radial - 4 Leads | 40 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
