Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R75QW433050H0JCAP FILM 3.3UF 5% 1KVDC RADIAL |
88 |
|
Datasheet | Radial | 3.3 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AFABW4550T3OKFILM, POWER, METALLIZED POLYPROP |
29 |
|
Datasheet | Radial - 4 Leads | 5.5 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.7 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
C4AF9BW5170T3OKFILM, POWER, METALLIZED POLYPROP |
15 |
|
Datasheet | Radial - 4 Leads | 17 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
C4AFABW4680F3OKFILM CAP AC, 6.8 UF, 10%,500 VAC |
6 |
|
Datasheet | Radial - 4 Leads | 6.8 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 8.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
DS441605-BACAP FILM 6UF 10% 440VAC CHAS MT |
70 |
|
Datasheet | Rectangular Box | 6 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969" L x 1.201" W (50.00mm x 30.50mm) | 1.654" (42.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
|
C4AF9BW5220F3MKFILM CAP AC, 22 UF, 10%, 310 VAC |
90 |
|
Datasheet | Radial - 4 Leads | 22 µF | ±10% | 310V | 620V | Polypropylene (PP), Metallized | 6.2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
C4AFBBW4500T3MKFILM, RADIAL, POWER BOX, AC FILT |
32 |
|
Datasheet | Radial - 4 Leads | 5 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 0.799" (20.30mm) | Automotive | AEC-Q200 | - |
|
C4AQOBW5330M3OJCAP FILM 33UF 5% 900VDC RADIAL |
54 |
|
Datasheet | Radial - 4 Leads | 33 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 2.7 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQJLW5300M38JCAP FILM 30UF 5% 700VDC RADIAL |
44 |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 0.992" (25.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQUBW5200A3MJCAP FILM 20UF 5% 1.3KVDC RADIAL |
61 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C4ASPBW4120A3JJCAP FILM 1.2UF 5% 1.2KVDC RADIAL |
50 |
|
Datasheet | Radial - 4 Leads | 1.2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Snubber | - | - |
|

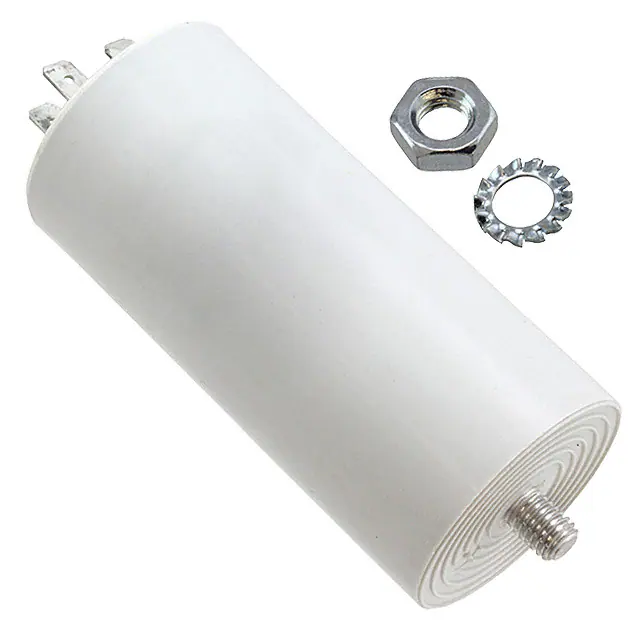

C274AC35250AA0JCAP FILM 25UF 5% 470VAC RADIAL |
31 |
|
Datasheet | Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.740" (95.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4AQPEW5220M3CJCAP FILM 22UF 5% 1.2KVDC RADIAL |
20 |
|
Datasheet | Radial - 4 Leads | 22 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.256" (57.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AUQBW5180M3PJFILM, RADIAL, METALLIZED POLYPRO |
71 |
|
Datasheet | Radial - 4 Leads | 18 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.929" (49.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQJBW5330M3HJCAP FILM 33UF 5% 700VDC RADIAL |
6 |
|
Datasheet | Radial - 4 Leads | 33 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.740" (44.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R75IR51004040JCAP FILM 10UF 5% 250VDC RADIAL |
62 |
|
Datasheet | Radial | 10 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R75PW482050H3JCAP FILM 8.2UF 5% 630VDC RADIAL |
60 |
|
Datasheet | Radial | 8.2 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 5.8 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C284ACR4800AL2JCAP FILM 8UF 5% 470VAC RADIAL |
39 |
|
Datasheet | Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 2.815" (71.50mm) | Wire Leads | - | Motor Run | - | - |
|
EZP-Q33146LTACAP FILM 14UF 5% 330VAC RADIAL |
63 |
|
Datasheet | Radial | 14 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 7.1 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 1.398" W (42.50mm x 35.50mm) | 1.988" (50.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
C274AC35300AA0JCAP FILM 30UF 5% 470VAC RADIAL |
19 |
|
Datasheet | Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.740" (95.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
