Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R75LR42704000KCAP FILM 2.7UF 10% 560VDC RADIAL |
5,669 |
|
Datasheet | Radial | 2.7 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
C4DEFPL6260A8TKCAP FILM 260UF 10% 400VDC |
9,544 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C20ALGR5680AASKCAP FILM 68UF 10% 1.4KVDC RADIAL |
2,545 |
|
Datasheet | Radial, Can | 68 µF | ±10% | 640V | 1400V (1.4kV) | Polypropylene (PP), Metallized | 1.6 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44EFGR6300ZA0JCAP FILM 300UF 5% 400VDC RADIAL |
6,094 |
|
Datasheet | Radial, Can | 300 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.134" (232.00mm) | Threaded, Male | 1.378" (35.00mm) | EMI, RFI Suppression | - | - |
|
|
C44EKGR6120ZA0JCAP FILM 120UF 5% 750VDC RADIAL |
4,837 |
|
Datasheet | Radial, Can | 120 µF | ±5% | 440V | 750V | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.953" (202.00mm) | Threaded, Male | 1.378" (35.00mm) | EMI, RFI Suppression | - | - |
|
|
C4BHNBX4100ZAFJCAP FILM 1UF 5% 1KVDC SCREW |
3,903 |
|
Datasheet | Rectangular Box | 1 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | - | - | Screw Terminals | - | - | - | - |
|
|
C954PF44530ZA1XCAP FILM 5.3UF 450VAC |
3,005 |
|
- |
- | 5.3 µF | - | 450V | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SMR27.5226H50F13L4TRAYCAP FILM 22UF 2.5% 50VDC RADIAL |
6,901 |
|
Datasheet | Radial | 22 µF | ±2.5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | High Temperature |
|
|
SMR27.5226J50F13L4TRAYCAP FILM 22UF 5% 50VDC RADIAL |
5,463 |
|
Datasheet | Radial | 22 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | High Temperature |
|
|
SMR27.5226M50F13L4TRAYCAP FILM 22UF 20% 50VDC RADIAL |
4,614 |
|
Datasheet | Radial | 22 µF | ±20% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | High Temperature |
|

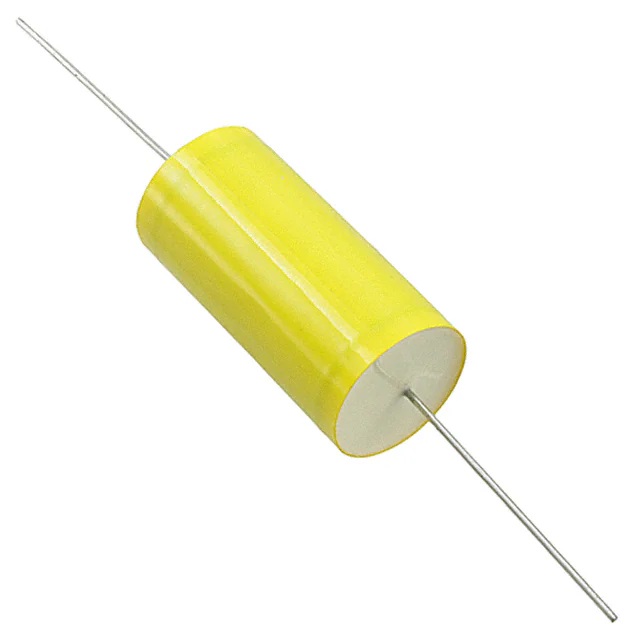

A72UT2220AA00KCAP FILM 0.022UF 10% 2KVDC AXIAL |
3,015 |
|
Datasheet | Axial | 0.022 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.630" Dia x 1.299" L (16.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
C20AQGR5330AASKCAP FILM 33UF 10% 1.7KVDC RADIAL |
7,042 |
|
Datasheet | Radial, Can | 33 µF | ±10% | 780V | 1700V (1.7kV) | Polypropylene (PP), Metallized | 2 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.866" (149.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PKGR6300AASJCAP FILM 300UF 5% 1KVDC RADIAL |
9,316 |
|
Datasheet | Radial, Can | 300 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | 1.9 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PLGR6300ZASJCAP FILM 300UF 5% 700VDC RADIAL |
7,452 |
|
Datasheet | Radial, Can | 300 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | 2.3 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PLGR6500ZASJCAP FILM 500UF 5% 700VDC RADIAL |
7,315 |
|
Datasheet | Radial, Can | 500 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | 1.8 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
A72QQ2220ZA00MCAP FILM 0.022UF 20% 1KVDC AXIAL |
8,823 |
|
Datasheet | Axial | 0.022 µF | ±20% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.433" Dia x 1.102" L (11.00mm x 28.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MMK5154J63J01L15.0CBULKCAP FILM 0.15UF 5% 63VDC RAD |
9,844 |
|
Datasheet | Radial | 0.15 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
PHE840MB5100MB04R17CAP FILM 10000PF 20% 760VDC RAD |
8,233 |
|
Datasheet | Radial | 10000 pF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R76UN247050H4JCAP FILM 0.047UF 5% 2KVDC RADIAL |
7,620 |
|
Datasheet | Radial | 0.047 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE820EB5680MR17CAP FILM 0.068UF 20% 760VDC RAD |
2,410 |
|
Datasheet | Radial | 0.068 µF | ±20% | 300V | 760V | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
