Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-V1184JM9CAP FILM 0.18UF 5% 100VDC RADIAL |
7,161 |
|
Datasheet | Radial | 0.18 µF | ±5% | - | 100V | Polyester, Metallized - Stacked | - | -40°C ~ 105°C | Through Hole | 0.402" L x 0.142" W (10.20mm x 3.60mm) | 0.551" (14.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
ECQ-V1223JM5CAP FILM 0.022UF 5% 100VDC RAD |
9,809 |
|
Datasheet | Radial | 0.022 µF | ±5% | - | 100V | Polyester, Metallized - Stacked | - | -40°C ~ 105°C | Through Hole | 0.295" L x 0.126" W (7.50mm x 3.20mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
PHE426HJ5330JR17T0CAP FILM 0.033UF 250VDC RADIAL |
3,117 |
|
Datasheet | Radial | 0.033 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | AC and Pulse |
|
PME261KE7100KR30CAP FILM 1UF 10% 400VDC RADIAL |
8,401 |
|
Datasheet | Radial | 1 µF | ±10% | 220V | 400V | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | General Purpose | - | - |
|
PME271ED6150KR30CAP FILM 0.15UF 10% 300VAC RAD |
6,653 |
|
Datasheet | Radial | 0.15 µF | ±10% | 300V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.394" W (27.00mm x 10.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
PHE820MB5470MR17CAP FILM 0.047UF 20% 275VAC RAD |
6,064 |
|
Datasheet | Radial | 0.047 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE820ED6100MR06L2CAP FILM 0.1UF 20% 300VAC RADIAL |
8,361 |
|
Datasheet | Radial | 0.1 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R71QW4220AA00JCAP FILM 2.2UF 5% 1KVDC RADIAL |
5,615 |
|
Datasheet | Radial | 2.2 µF | ±5% | 275V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|

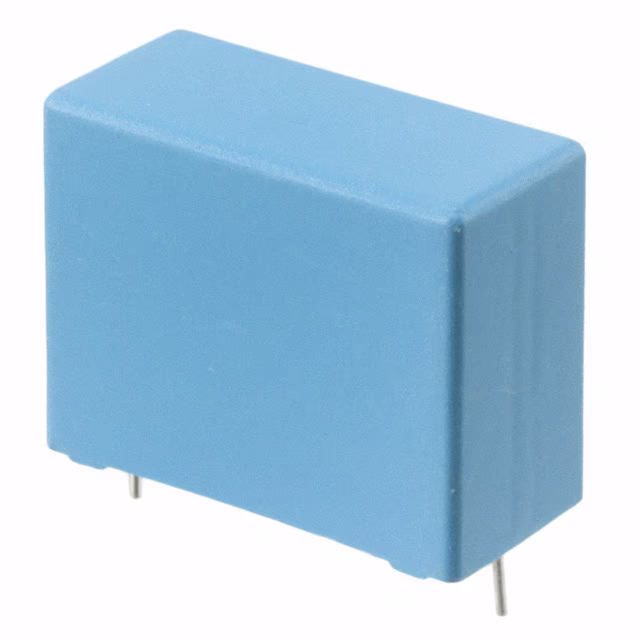

PHE820EF6680MR06L2CAP FILM 0.68UF 20% 300VAC RAD |
8,991 |
|
Datasheet | Radial | 0.68 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
A72QT3100AA02MCAP FILM 0.1UF 20% 1KVDC AXIAL |
3,852 |
|
Datasheet | Axial | 0.1 µF | ±20% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.748" Dia x 1.299" L (19.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

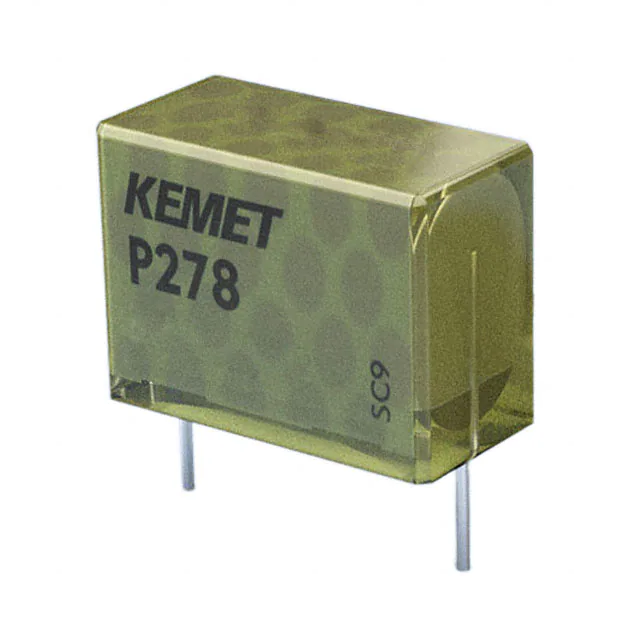

P278HE222M480ACAP FILM 2200PF 20% 480VAC RAD |
2,350 |
|
Datasheet | Radial | 2200 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | X1 | - |
|
|
P278QS223M480ACAP FILM 0.022UF 20% 1KVDC RAD |
6,197 |
|
Datasheet | Radial | 0.022 µF | ±20% | 480V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.563" (14.30mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X1 | - |
|
|
P278SJ473M480ACAP FILM 0.047UF 20% 480VAC RAD |
5,934 |
|
Datasheet | Radial | 0.047 µF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.315" W (27.00mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
PME271ED6220KR30CAP FILM 0.22UF 10% 630VDC RAD |
6,690 |
|
Datasheet | Radial | 0.22 µF | ±10% | 300V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.453" W (27.00mm x 11.50mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
R75MD247040B0JCAP FILM 0.047UF 5% 400VDC RAD |
5,371 |
|
Datasheet | Radial | 0.047 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75LN33304000KCAP FILM 0.33UF 10% 560VDC RAD |
4,789 |
|
Datasheet | Radial | 0.33 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | - |
|
R75LN35604000KCAP FILM 0.56UF 10% 560VDC RAD |
5,830 |
|
Datasheet | Radial | 0.56 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | - |
|

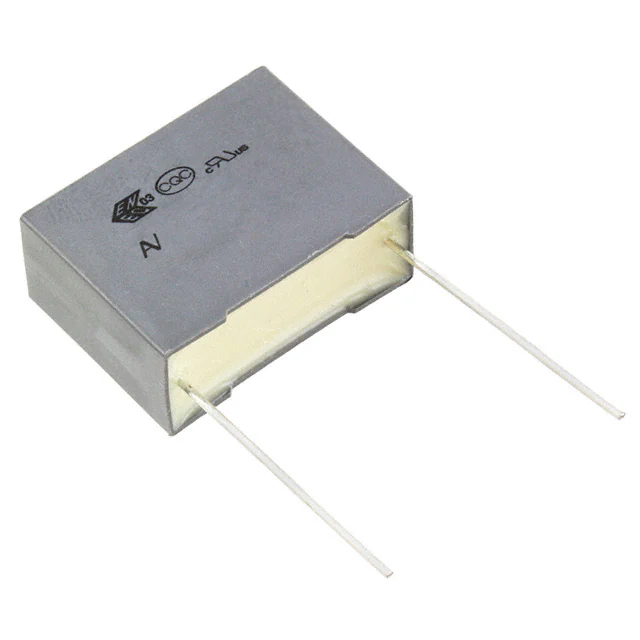

R75LN38204000KCAP FILM 0.82UF 10% 560VDC RAD |
4,783 |
|
Datasheet | Radial | 0.82 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | - |
|
R75LN41004000KCAP FILM 1UF 10% 560VDC RADIAL |
4,428 |
|
Datasheet | Radial | 1 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | - |
|
R75LR41504000KCAP FILM 1.5UF 10% 560VDC RADIAL |
5,791 |
|
Datasheet | Radial | 1.5 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
