Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4ASMBW4500A3NJCAP FILM METAL RAD POLYPROP |
5,767 |
|
Datasheet | Radial - 4 Leads | 5 µF | ±5% | 500V | 850V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | High Pulse, DV/DT; Snubber | - | - |
|

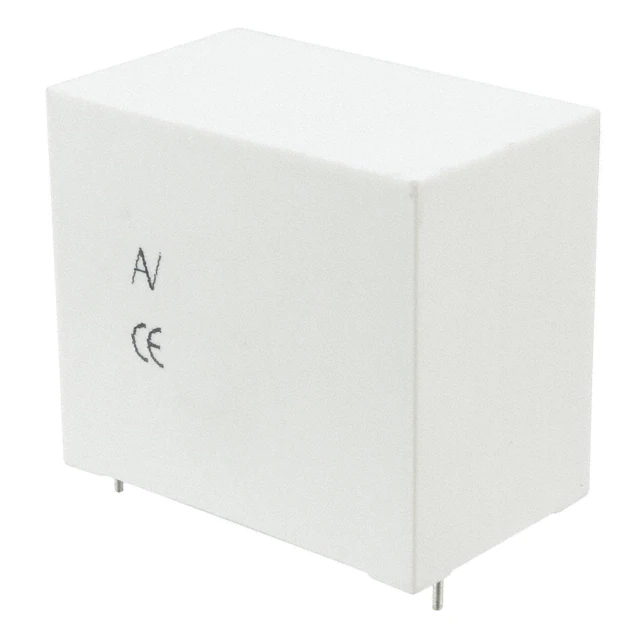

C4AEOBW5400H3NJCAP FILM 40UF 5% 900VDC RADIAL |
6,479 |
|
Datasheet | Radial | 40 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C4BSMBX4400ZFNJCAP FILM METAL RAD POLYPROP |
9,295 |
|
Datasheet | Rectangular Box | 4 µF | ±5% | 550V | 850V | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | Screw Terminals | 1.457" (37.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C4BSPBX4250ZGMJCAP FILM METAL RAD POLYPROP |
8,995 |
|
Datasheet | Rectangular Box | 2.5 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | Screw Terminals | 1.457" (37.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C4BSMBX4400ZANJCAP FILM METAL RAD POLYPROP |
7,117 |
|
Datasheet | Rectangular Box | 4 µF | ±5% | 550V | 850V | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C4BSMBX4150ZA0JCAP FILM 1.5UF 5% 850VDC SCREW |
7,354 |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | - | 850V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | - | - | Screw Terminals | - | DC Link, DC Filtering; Snubber | - | - |
|
|
C4BSNBX4150ZA0JCAP FILM 1.5UF 5% 1KVDC SCREW |
8,748 |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | - | - | Screw Terminals | - | DC Link, DC Filtering; Snubber | - | - |
|
|
C4BTDBX5500ZANJCAP FILM METAL RAD POLYPROP |
7,905 |
|
Datasheet | Rectangular Box | 50 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 1.2 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C870CG36110AA0JCAP FILM MOTOR START RUN |
2,173 |
|
Datasheet | Radial, Can | 110 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4BSWBX3470ZB0JCAP FILM 0.47UF 5% 2KVDC SCREW |
9,670 |
|
Datasheet | Rectangular Box | 0.47 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AUJEW6125M3BJFILM, RADIAL, METALLIZED POLYPRO |
7,047 |
|
Datasheet | Radial - 4 Leads | 125 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.606" (66.20mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C875CG36160AA0KCAP FILM 160UF 10% 470VAC RADIAL |
4,247 |
|
Datasheet | Radial, Can | 160 µF | ±10% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
F461RU476R160Z47.0UF 160V |
8,549 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
JSNIK4680KB6L0CAP FILM 6.8UF 10% 250VDC SMD |
8,060 |
|
Datasheet | SMD, J-Lead | 6.8 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 0.846" W (17.30mm x 21.50mm) | 0.701" (17.80mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|
|
JSNEJ5350KB6L0CAP FILM 35UF 10% 100VDC SMD |
9,254 |
|
Datasheet | SMD, J-Lead | 35 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 1.181" W (17.30mm x 30.00mm) | 0.606" (15.40mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|
|
C274AC35550AA0JCAP FILM 55UF 5% 470VAC RADIAL |
3,424 |
|
Datasheet | Radial, Can | 55 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 2.165" Dia (55.00mm) | 4.803" (122.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4ATDBU5400A30JCAP FILM METAL RAD POLYPROP |
3,176 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
C4AF7EW5220A3AKCAP FILM 22UF 10% 700VDC RADIAL |
8,213 |
|
Datasheet | Radial - 4 Leads | 22 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 2.2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
C4ASNBU4470A3NJCAP FILM METAL RAD POLYPROP |
5,509 |
|
Datasheet | Radial | 4.7 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | High Pulse, DV/DT; Snubber | - | - |
|
|
C4ATDBU5300A10JCAP FILM METAL RAD POLYPROP |
7,270 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
