Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4ATDBU5200A30JCAP FILM METAL RAD POLYPROP |
8,836 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C44BPF13470ZB0JCAP FILM 0.47UF 5% 1.2KVDC RAD |
3,242 |
|
Datasheet | Radial, Can | 0.47 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.441" (62.00mm) | Quick Connect - 0.110" (2.8mm) | 0.394" (10.00mm) | Snubber | - | - |
|
|
C44BWF13150ZA0JCAP POLYPROP FILM CAN |
3,703 |
|
Datasheet | Radial, Can | 0.15 µF | ±5% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 26 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.441" (62.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Snubber | - | - |
|
|
C44BPF13330ZB0JCAP POLYPROP FILM CAN |
6,790 |
|
Datasheet | Radial, Can | 0.33 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 16 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.441" (62.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Snubber | - | - |
|
|
C44BWF12470ZA0JCAP POLYPROP FILM CAN |
4,842 |
|
Datasheet | Radial, Can | 0.047 µF | ±5% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 30 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.441" (62.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Snubber | - | - |
|
|
C44BWF13100ZA0JCAP POLYPROP FILM CAN |
9,841 |
|
Datasheet | Radial, Can | 0.1 µF | ±5% | 630V | 2000V (2kV) | Polypropylene (PP), Metallized | 27 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.441" (62.00mm) | Quick Connect, Disconnect | - | Snubber | - | - |
|
|
C44BPF13220ZB0JCAP POLYPROP FILM CAN |
8,678 |
|
Datasheet | Radial, Can | 0.22 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 23 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.441" (62.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Snubber | - | - |
|
JSNEK5300KB6L0CAP FILM 30UF 10% 100VDC SMD |
4,216 |
|
Datasheet | SMD, J-Lead | 30 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 0.846" W (17.30mm x 21.50mm) | 0.701" (17.80mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|
|
C4ASNBU4220A1LJCAP FILM METAL RAD POLYPROP |
9,453 |
|
Datasheet | Radial | 2.2 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
C4BSNBX3470ZEEKCAP FILM 0.47UF 10% 1KVDC SCREW |
2,362 |
|
Datasheet | Rectangular Box | 0.47 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Chassis Mount | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | Screw Terminals | 1.220" (31.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C870ZF35600AA2JCAP FILM 60UF 5% 470VAC RADIAL |
8,757 |
|
Datasheet | Radial, Can | 60 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
|
C4BTDBX5400ZAMJCAP FILM METAL RAD POLYPROP |
6,806 |
|
Datasheet | Rectangular Box | 40 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
C870CG36100AA0KCAP FILM MOTOR START RUN |
6,458 |
|
Datasheet | Radial, Can | 100 µF | ±10% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 2.165" Dia (55.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
F461RO396R160Z39.0UF 160V |
2,671 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JSNIK4560KB6L0CAP FILM 5.6UF 10% 250VDC SMD |
3,733 |
|
Datasheet | SMD, J-Lead | 5.6 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 0.846" W (17.30mm x 21.50mm) | 0.602" (15.30mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|
|
C4ATDBU5300A30JCAP FILM METAL RAD POLYPROP |
9,594 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C4BSPBX4150ZGLJCAP FILM METAL RAD POLYPROP |
3,333 |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|

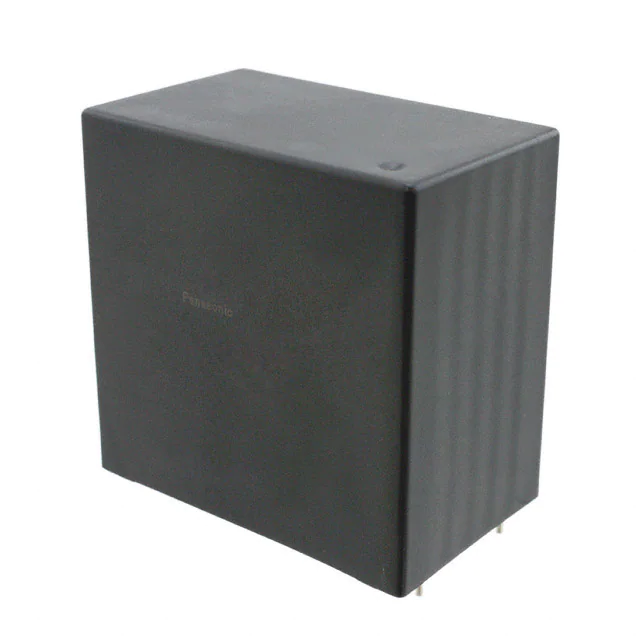

EZP-E50906MTACAP FILM 90UF 10% 500VDC RADIAL |
5,479 |
|
Datasheet | Radial - 4 Leads | 90 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.224" (56.50mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR |
|
C4AF9EW5330A3BKCAP FILM 33UF 10% 630VDC RADIAL |
2,389 |
|
Datasheet | Radial - 4 Leads | 33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
C4ASNBW4470A3NJCAP FILM METAL RAD POLYPROP |
6,381 |
|
Datasheet | Radial - 4 Leads | 4.7 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | - |
