Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H16123HVBCAP FILM 0.012UF 3% 1.6KVDC RAD |
6,001 |
|
Datasheet | Radial | 0.012 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.354" W (23.00mm x 9.00mm) | 0.866" (22.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16133HVBCAP FILM 0.013UF 3% 1.6KVDC RAD |
4,382 |
|
Datasheet | Radial | 0.013 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.354" W (23.00mm x 9.00mm) | 0.886" (22.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16113HVBCAP FILM 0.011UF 3% 1.6KVDC RAD |
9,906 |
|
Datasheet | Radial | 0.011 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.335" W (23.00mm x 8.50mm) | 0.866" (22.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16153HVBCAP FILM 0.015UF 3% 1.6KVDC RAD |
2,387 |
|
Datasheet | Radial | 0.015 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.374" W (23.00mm x 9.50mm) | 0.906" (23.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16163HVBCAP FILM 0.016UF 3% 1.6KVDC RAD |
4,216 |
|
Datasheet | Radial | 0.016 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.394" W (23.00mm x 10.00mm) | 0.925" (23.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16183HVBCAP FILM 0.018UF 3% 1.6KVDC RAD |
3,921 |
|
Datasheet | Radial | 0.018 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.413" W (23.00mm x 10.50mm) | 0.965" (24.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

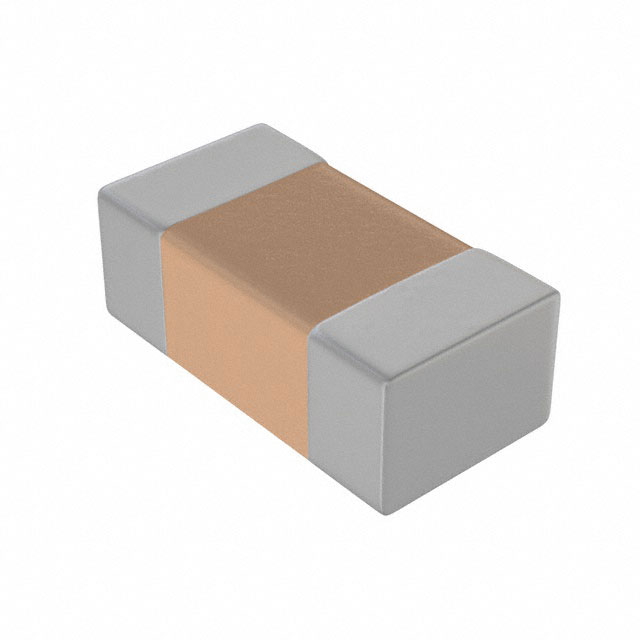

LDBAA2390JC5N0CAP FILM 0.039UF 5% 16VDC 1206 |
4,956 |
|
Datasheet | 1206 (3216 Metric) | 0.039 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
|
R82CC4470CK30KCAP FILM 4.7UF 10% 50VDC RADIAL |
4,868 |
|
Datasheet | Radial | 4.7 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
F461BY275K160ACAP FILM POLYPROP RAD |
6,162 |
|
Datasheet | Radial | 2.7 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
ECW-F6184RHLCAP FILM 0.18UF 3% 630VDC RADIAL |
8,603 |
|
Datasheet | Radial | 0.18 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.386" W (18.00mm x 9.80mm) | 0.752" (19.10mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
F161PU184J050VCAP FILM SMD PET |
3,334 |
|
Datasheet | 2220 (5750 Metric) | 0.18 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.165" (4.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
R60GN4330AA30MCAP FILM AUTOMOTIVE |
4,864 |
|
Datasheet | Radial | 3.3 µF | ±20% | 90V | 160V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
R60DI4470GY30KCAP FILM AUTOMOTIVE |
4,316 |
|
Datasheet | Radial | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
|
ECW-F4134HBCAP FILM 0.13UF 3% 400VDC RADIAL |
4,988 |
|
- |
Radial | 0.13 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 105°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.709" (18.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R46KN368052M2MCAP FILM SAFETY/EMI SUPP RAD |
9,993 |
|
Datasheet | Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
F873DY154J760L.150UF 760V |
9,000 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R75RN3120DQ30JCAP FILM AUTO POLYPROP RAD |
4,123 |
|
Datasheet | Radial | 0.12 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 9.3 mOhms | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
F161WP104K250ACAP FILM SMD PET |
4,089 |
|
Datasheet | Nonstandard SMD | 0.1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
F881DU224M300RCAP FILM POLYPROP RAD Y2 |
3,805 |
|
Datasheet | Radial | 0.22 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
F872DU274M480ZCAP FILM POLYPROP RAD X1 |
3,269 |
|
Datasheet | Radial | 0.27 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
