Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

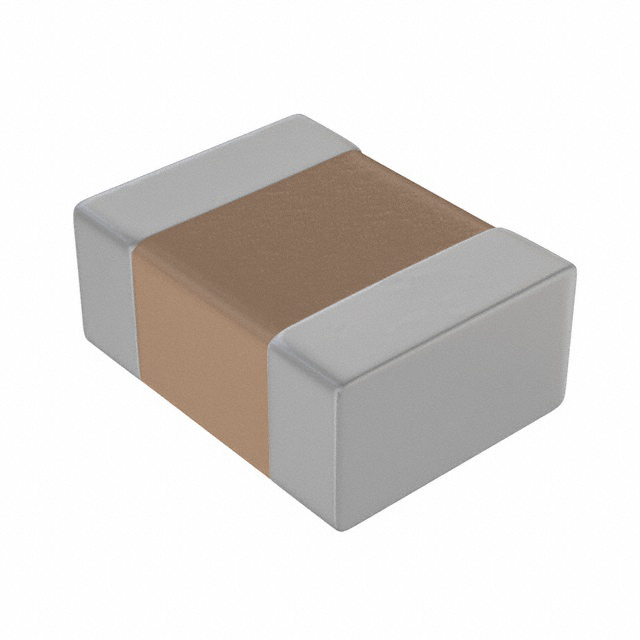

LDBCB2150JC5N0CAP FILM 0.015UF 5% 50VDC 1210 |
5,814 |
|
Datasheet | 1210 (3225 Metric) | 0.015 µF | ±5% | - | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.055" (1.40mm) | Solder Pads | - | General Purpose | - | - |
|
LDECC2220JA5N00CAP FILM 0.022UF 5% 50VDC 1812 |
7,958 |
|
Datasheet | 1812 (4532 Metric) | 0.022 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECQ-E10394JFBCAP FILM 0.39UF 5% 1KVDC RADIAL |
4,349 |
|
Datasheet | Radial | 0.39 µF | ±5% | - | 1000V (1kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | - | - | PC Pins | - | General Purpose | - | - |
|
|
A50EH3680AA60JCAP FILM AXL |
8,638 |
|
Datasheet | Axial | 0.68 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.551" L (7.00mm x 14.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
A50EH3680AA60MCAP FILM AXL |
9,463 |
|
Datasheet | Axial | 0.68 µF | ±20% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.551" L (7.00mm x 14.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
|
ECW-F4114RHBCAP FILM 0.11UF 3% 400VDC RADIAL |
3,400 |
|
- |
Radial | 0.11 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.768" (19.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
ECW-F4364RHLCAP FILM 0.36UF 3% 400VDC RADIAL |
2,612 |
|
Datasheet | Radial | 0.36 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.390" W (18.00mm x 9.90mm) | 0.776" (19.70mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
F461BY275M160L2.70UF 160V |
9,768 |
|
Datasheet | Radial | 2.7 µF | ±20% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
F461BY275M160R2.70UF 160V |
7,236 |
|
Datasheet | Radial | 2.7 µF | ±20% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
ECW-H16123HVCAP FILM 0.012UF 3% 1.6KVDC RAD |
8,125 |
|
Datasheet | Radial | 0.012 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.354" W (23.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16133HVCAP FILM 0.013UF 3% 1.6KVDC RAD |
4,479 |
|
Datasheet | Radial | 0.013 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.354" W (23.00mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16113HVCAP FILM 0.011UF 3% 1.6KVDC RAD |
4,024 |
|
Datasheet | Radial | 0.011 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.335" W (23.00mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16153HVCAP FILM 0.015UF 3% 1.6KVDC RAD |
4,681 |
|
Datasheet | Radial | 0.015 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.374" W (23.00mm x 9.50mm) | 0.768" (19.50mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16163HVCAP FILM 0.016UF 3% 1.6KVDC RAD |
9,335 |
|
Datasheet | Radial | 0.016 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.394" W (23.00mm x 10.00mm) | 0.787" (20.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-H16183HVCAP FILM 0.018UF 3% 1.6KVDC RAD |
6,633 |
|
Datasheet | Radial | 0.018 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.413" W (23.00mm x 10.50mm) | 0.827" (21.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-F4474RJLCAP FILM 0.47UF 5% 400VDC RADIAL |
2,787 |
|
Datasheet | Radial | 0.47 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.441" W (18.00mm x 11.20mm) | 0.831" (21.10mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
F461DM275K160RCAP FILM POLYPROP RAD |
4,725 |
|
Datasheet | Radial | 2.7 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
R60DN4680JE30JCAP FILM AUTOMOTIVE |
5,267 |
|
Datasheet | Radial | 6.8 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
R60DN4680JB30KCAP FILM AUTOMOTIVE |
2,158 |
|
Datasheet | Radial | 6.8 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
F871DY824M330RCAP FILM POLYPROP RAD X1 |
8,990 |
|
Datasheet | Radial | 0.82 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
