Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQIBU4800A11JCAP FILM 8UF 5% 800VDC RADIAL |
807 |
|
Datasheet | Radial | 8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R60DN51505030KCAP FILM 15UF 10% 63VDC RADIAL |
2,467 |
|
Datasheet | Radial | 15 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
R53BR410050S0MCAP FILM 1UF 20% 800VDC RADIAL |
239 |
|
Datasheet | Radial | 1 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.878" (22.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R46KW447040M1MCAP FILM 4.7UF 20% 560VDC RADIAL |
107 |
|
Datasheet | Radial | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|

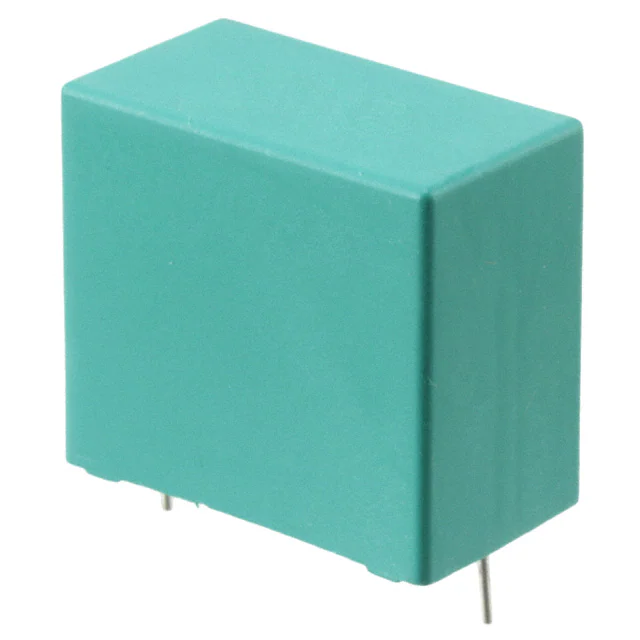

PHE850EF6470MF14R06L2CAP FILM 0.47UF 20% 1.25KVDC RAD |
1,333 |
|
Datasheet | Radial | 0.47 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
EZP-Q38105LTACAP FILM 1UF 5% 380VAC RADIAL |
224 |
|
Datasheet | Radial | 1 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 71.6 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.161" (29.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
PHE450SD5560JR06L2CAP FILM 0.056UF 5% 2KVDC RADIAL |
861 |
|
Datasheet | Radial | 0.056 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
.jpg)
|
LDEQG2470KA5N00CAP FILM 0.047UF 10% 1KVDC 5040 |
1,551 |
|
Datasheet | 5040 (127102 Metric) | 0.047 µF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.512" L x 0.409" W (13.00mm x 10.40mm) | 0.161" (4.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
C4AEOBU4150A1WJCAP FILM 1.5UF 5% 900VDC RADIAL |
266 |
|
Datasheet | Radial | 1.5 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 26.3 mOhms | -40°C ~ 85°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
R474R41505001KCAP FILM 1.5UF 10% 1KVDC RADIAL |
130 |
|
Datasheet | Radial | 1.5 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R523W447050P0KCAP FILM 4.7UF 10% 630VDC RADIAL |
255 |
|
Datasheet | Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200, X2 | - |
|
PHE450MF6220JR06L2CAP FILM 0.22UF 5% 630VDC RADIAL |
224 |
|
Datasheet | Radial | 0.22 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
SMR5105K50J06L4BULKCAP FILM 1UF 10% 50VDC RADIAL |
2,269 |
|
Datasheet | Radial | 1 µF | ±10% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
ECW-FG60126JCAP FILM 12UF 600VDC RADIAL |
300 |
|
Datasheet | Radial | 12 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
|
C4AQOBU4630M11JCAP FILM 6.3UF 5% 900VDC RADIAL |
242 |
|
Datasheet | Radial | 6.3 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 8.1 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AFBBU4100F12KFILM CAP AC, 1 UF, 10%, 600VAC |
192 |
|
Datasheet | Radial | 1 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 39.6 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
|
PHE450RF6100JR06L2CAP FILM 0.1UF 5% 1.6KVDC RADIAL |
773 |
|
Datasheet | Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.240" (31.50mm) | High Frequency, Switching | - | - |
|
|
C274AC34100AA0JCAP FILM 1UF 5% 470VAC RADIAL |
252 |
|
Datasheet | Radial, Can | 1 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
MMK22.5106K100D19L4TRAYCAP FILM 10UF 10% 100VDC RADIAL |
580 |
|
Datasheet | Radial | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
R463W447050M1KCAP FILM 4.7UF 10% 630VDC RAD |
284 |
|
Datasheet | Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
