Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQIBU4800M11JCAP FILM 8UF 5% 800VDC RADIAL |
216 |
|
Datasheet | Radial | 8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.3 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R71VR447050H6KFILM, RADIAL, PULSE, SINGLE META |
288 |
|
Datasheet | Radial | 4.7 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
F862FY475K310ZV054CAP FILM 4.7UF 10% 630VDC RADIAL |
118 |
|
Datasheet | Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECQ-E1685KFCAP FILM 6.8UF 10% 100VDC RADIAL |
112 |
|
Datasheet | Radial | 6.8 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R474R347050A1KCAP FILM 0.47UF 10% 1KVDC RADIAL |
2,170 |
|
Datasheet | Radial | 0.47 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

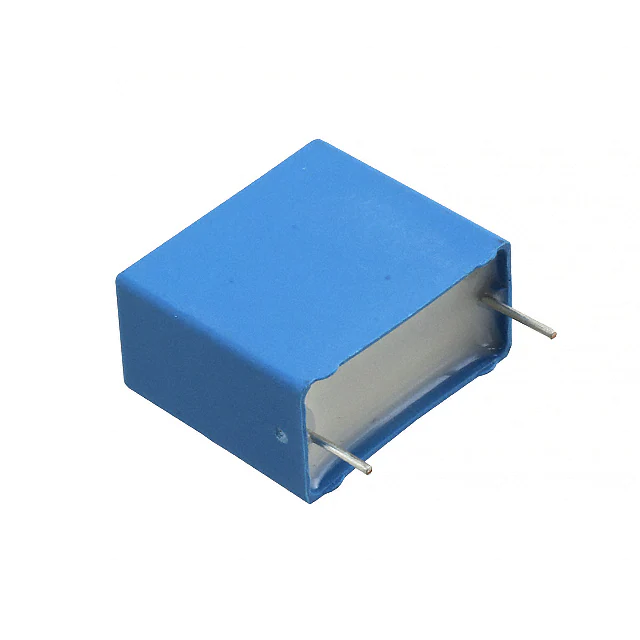

PHE840MF6470MF11R06L2CAP FILM 0.47UF 20% 760VDC RAD |
256 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R413W368050T0KCAP FILM 0.68UF 10% 1.5KVDC RAD |
241 |
|
Datasheet | Radial | 0.68 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
SMR5474J50J04L16.5CBULKCAP FILM 0.47UF 5% 50VDC RADIAL |
1,738 |
|
Datasheet | Radial | 0.47 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
SMR5474J50J04L4BULKCAP FILM 0.47UF 5% 50VDC RADIAL |
1,527 |
|
Datasheet | Radial | 0.47 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
|
C4AQLBU5125A1YKCAP FILM 12.5UF 10% 500VDC RAD |
1,017 |
|
Datasheet | Radial | 12.5 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.110" (28.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQIBU4850M1EJCAP FILM 8.5UF 5% 800VDC RADIAL |
162 |
|
Datasheet | Radial | 8.5 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.1 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.307" (33.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R60MR44705040KCAP FILM 4.7UF 10% 400VDC RAD |
127 |
|
Datasheet | Radial | 4.7 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECW-FG80505JCAP FILM 5.0UF 800VDC RADIAL |
107 |
|
Datasheet | Radial | 5 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
ECW-F4225HLCAP FILM 2.2UF 3% 400VDC RADIAL |
1,241 |
|
Datasheet | Radial | 2.2 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.661" W (28.00mm x 16.80mm) | 1.004" (25.50mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
C4AQCLW5100A33JCAP FILM 10UF 5% 650VDC RADIAL |
244 |
|
Datasheet | Radial - 4 Leads | 10 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 10.4 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.756" (19.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C4AFABU4150T12KFILM, POWER, METALLIZED POLYPROP |
492 |
|
Datasheet | Radial | 1.5 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
C878AF24800AA0JCAP FILM 8UF 5% 470VAC RADIAL |
293 |
|
Datasheet | Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
|
C4AQSLU4280A19JCAP FILM 2.8UF 5% 1.5KVDC RADIAL |
186 |
|
Datasheet | Radial | 2.8 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 11.4 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 1.220" W (32.00mm x 31.00mm) | 0.756" (19.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C276CC24150AA0JCAP FILM 1.5UF 5% 470VAC RADIAL |
415 |
|
Datasheet | Radial, Can | 1.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
|
C4AF3BU4150T11KFILM, POWER, METALLIZED POLYPROP |
144 |
|
Datasheet | Radial | 1.5 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 7.6 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
