DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVB-EP53A8LQAEVAL BOARD FOR EP53A8LQA |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1A | 2.4V ~ 5.5V | Buck | 5MHz | Board(s) | EP53A8LQA |
|
|
EVB-EN6337QAEVAL BOARD FOR EP6337QA |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | - | Buck | - | Board(s) | EP6337QA |
|

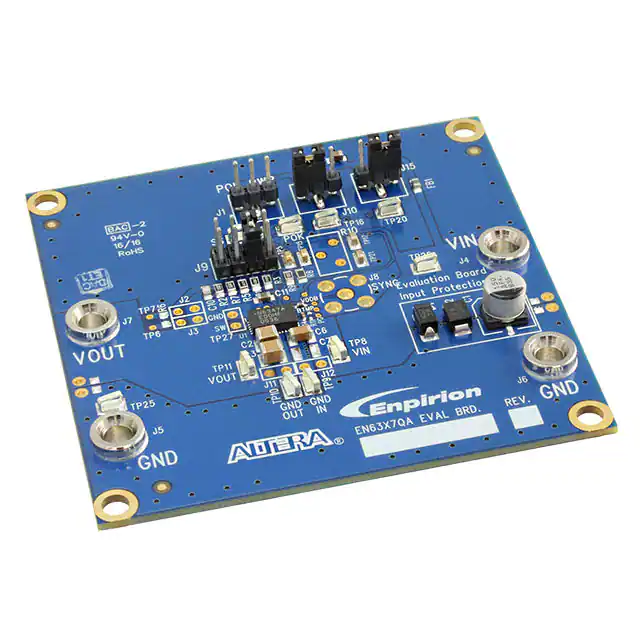

EVB-EN6347QAEVAL BOARD FOR EP6347QA |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | - | Buck | - | Board(s) | EP6347QA |
|

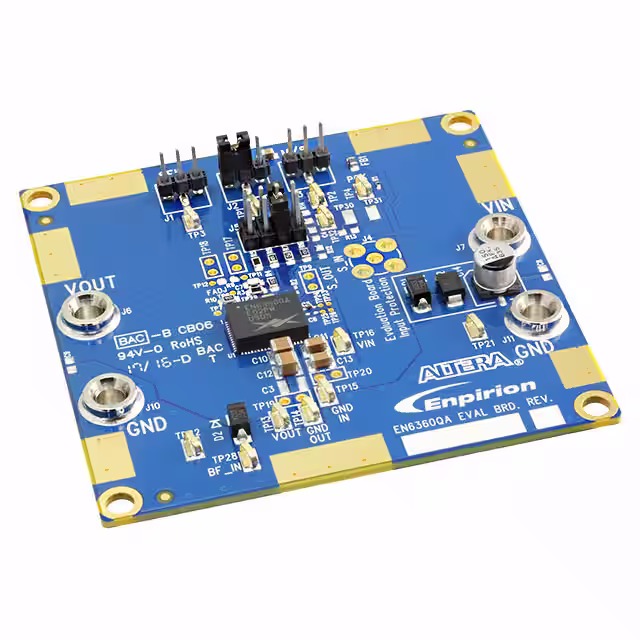

EVB-EN6360QAEVAL BOARD FOR EP6360QA |
0 |
|
- |
Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 8A | - | Buck | - | Board(s) | EP6360QA |
|

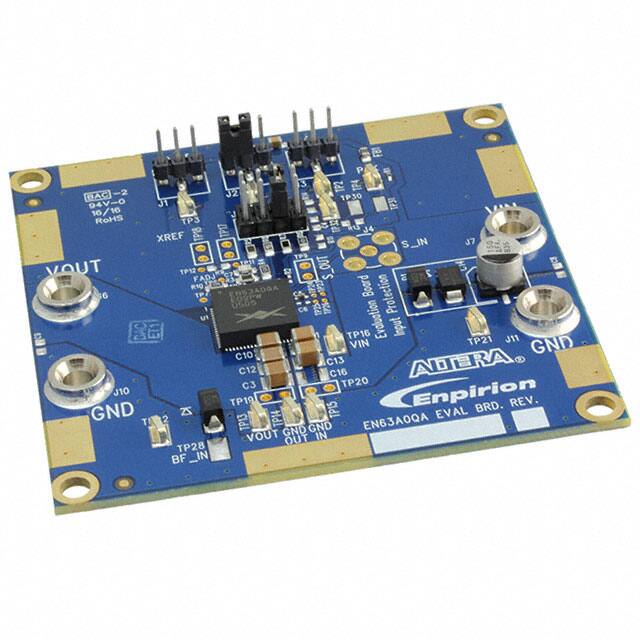

EVB-EN63A0QAEVAL BOARD FOR EP63A0QA |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 12A | - | Buck | - | Board(s) | EP63A0QA |
|
DC2481A-AEVAL BOARD FOR LTM4650 LTM4677 |
0 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 86A | 4.5V ~ 16V | Buck | 425kHz | Board(s) | LTM4650, LTM4677 |
|

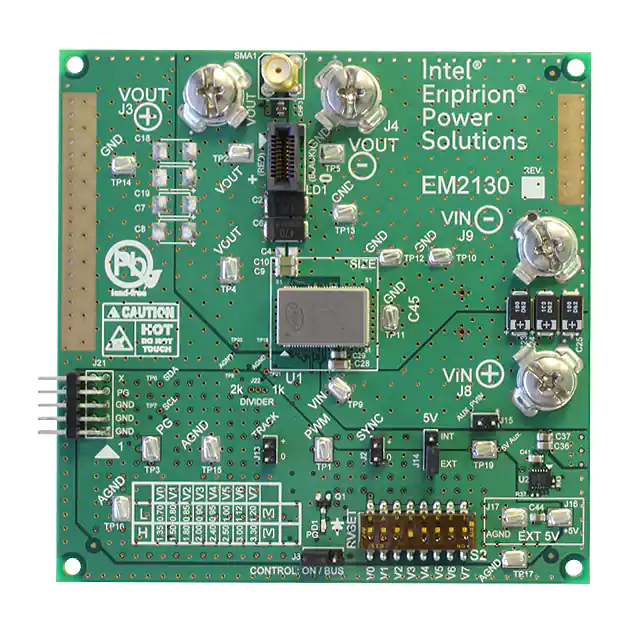

EVB-EM2130L01QIEVAL BOARD FOR EM2130L01QI |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V ~ 1.325V | 30A | 4.5V ~ 16V | Buck | - | Board(s) | EM2130L01QI |
|
|
EVB-EM2130H01QIEVAL BOARD FOR EM2130H01QI |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.35V ~ 3.6V | 30A | 4.5V ~ 16V | Buck | - | Board(s) | EM2130H01QI |
|
|
EVB-EM2120L01QIEVAL BOARD FOR EM2120L01QI |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V ~ 1.325V | 20A | 4.5V ~ 16V | Buck | - | Board(s) | EM2120L01QI |
|
|
EVB-EM2120H01QIEVAL BOARD FOR EM2120H01QI |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.325V ~ 5V | 20A | 4.5V ~ 16V | Buck | - | Board(s) | EM2120H01QI |
|
EVB-EM2140P01QIEVAL BOARD FOR EM2140P01QI |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V ~ 1.325V | 40A | 4.5V ~ 16V | Buck | - | Board(s) | EM2140P01QI |
|
EVB-EM2130L02QIEVAL BOARD FOR EM2130L02QI |
0 |
|
Datasheet | Enpirion® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V ~ 1.325V | 30A | 4.5V ~ 16V | Buck | - | Board(s) | EM2130L02QI |
|
|
FEBFAN6754AMR_CP450V1EVAL BOARD FAN6754AMR FAN6204MY |
0 |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | - | 19V | 3.42A | 90 ~ 264 VAC | Flyback | 50Hz ~ 60Hz | Board(s) | FAN6754AMR, FAN6204MY |
|
EVB-EN6340QIEVAL BOARD FOR EN6340QI |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 2.7V ~ 6.6V | Buck | 2MHz | Board(s) | EN6340QI |
|

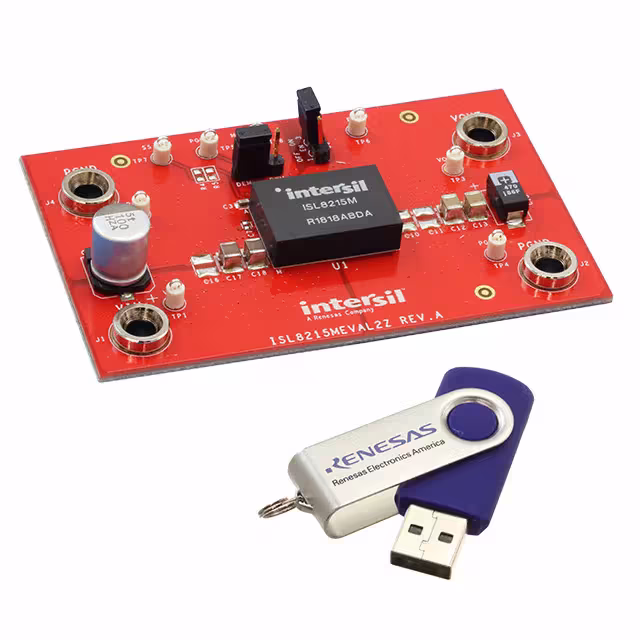

ISL8215MEVAL2ZEVAL BOARD FOR ISL8215M |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 15A | 7V ~ 42V | Buck | 300kHz | Board(s) | ISL8215M |
|
EVB-EM2260P01QIEVAL BOARD FOR EM2260P01QI |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 1.3V | 60A | 4.5V ~ 16V | Buck | - | Board(s) | EM2260P01QI |
|
|
EVB-EN29A0QIEVAL BOARD FOR EN29A0QI |
0 |
|
Datasheet | Enpirion® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 3.3V | 10A | 9V ~ 16V | Buck | - | Board(s) | EN29A0QI |
|

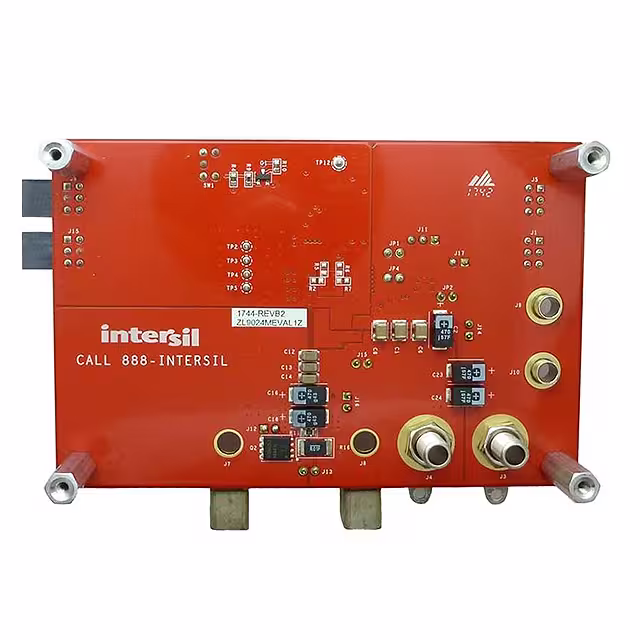

ZL9024MEVAL1ZEVAL BOARD FOR ZL9024M |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 33A | 2.75V ~ 4V | Buck | 533kHz | Board(s), Cable(s) | ZL9024M |
|
|
DC1174B-AEVAL BOARD FOR LTC3725 LTC3726 |
0 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Isolated Output | 50 W | 5V | 10A | 9V ~ 36V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
|
|
ZSPM402309KITV3P0EVAL BOARD FOR ZSPM4023 |
0 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5.5V | 9A | 4.5V ~ 28V | Buck | 600kHz | Board(s) | ZSPM4023 |
