DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC195AEVAL BOARD FOR LTC1627 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V, 2.9V or 3.3V | 500mA | 2.65V ~ 8.5V | Buck | 350kHz | Board(s) | LTC1627 |
|
DC293A-AEVAL BOARD FOR LTC1771 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V or 3.3V | 2A | 2.8V ~ 12V | Buck | - | Board(s) | LTC1771 |
|
DC328AEVAL BOARD FOR LTC1872 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 2.5V ~ 4.2V | Boost | 550kHz | Board(s) | LTC1872 |
|
DC620AEVAL BOARD FOR LT1943 |
0 |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 3.3V, 13V, 30V, -10V | 2A, 500mA, 50mA, 30mA | 8V ~ 20V | Boost, Buck, Inverting | 1.2MHz | Board(s) | LT1943 |
|
|
ISL6446ADEMO1ZEVAL BOARD FOR ISL6446A |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 20A, 20A | 10.8V ~ 13.2V | - | 280kHz | Board(s) | ISL6446A |
|
|
ISL8271MEVAL1ZEVAL BOARD FOR ISL8271M |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5V | 33A | 4.5V ~ 14V | Buck | - | Board(s), Cable(s) | ISL8271M |
|
ISL8272MEVAL1ZEVAL BOARD FOR ISL8272M |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 50A | 5V ~ 12V | Buck | 421kHz | Board(s) | ISL8272M |
|
|
ZL8801-2PH-DEMO1ZEVAL BOARD FOR ZL8801 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 80A | 4.5V ~ 14V | Buck | 500kHz | Board(s), Cable(s) | ZL8801 |
|
|
ZL8801-4PH-DEMO1ZEVAL BOARD FOR ZL8801 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 160A | 6.5V ~ 14V | Buck | 515kHz | Board(s) | ZL8801 |
|
EVB-ER3125QIEVAL BOARD FOR ER3125QI |
0 |
|

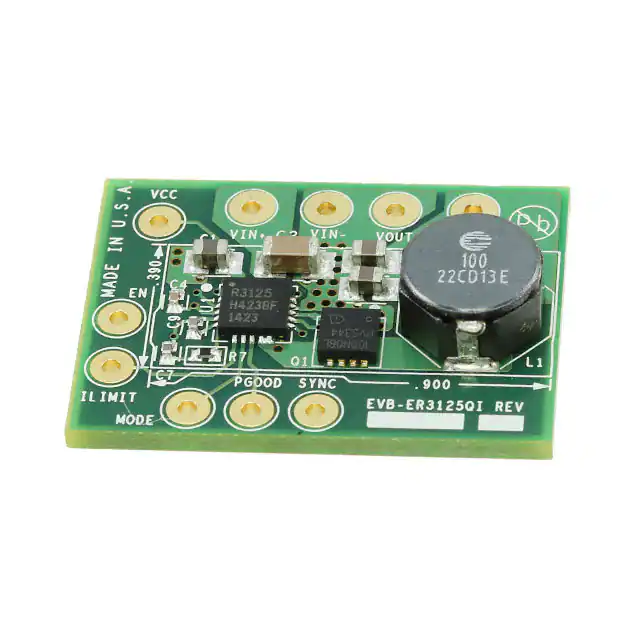

Datasheet | Enpirion® | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.5V ~ 36V | 2.5A | 3V ~ 36V | Buck-Boost | - | Board(s) | ER3125QI |
|
|
DC1811B-AEVAL BOARD FOR LTM4676 |
0 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 13A, 13A | 4.5V ~ 26.5V | Buck | 500kHz | Board(s) | LTM4676 |
|
|
DC1878AEVAL BOARD FOR LTC3789 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 8V ~ 75V | Buck-Boost | 200kHz | Board(s) | LTC3789 |
|
|
DC477AEVAL BOARD FOR LT1683 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2A | 36V ~ 72V | Buck | - | Board(s) | LT1683 |
|
|
DM330017-1EVAL BOARD FOR DSPIC33F |
0 |
|
Datasheet | MPLAB® | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | - | - | - | Boost, Buck | - | Board(s), Cable(s), Power Supply | dsPIC33F |
|
|
MIC2131-EVEVAL BOARD FOR MIC2131 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 9A | 8V ~ 40V | Buck | 150kHz | Board(s) | MIC2131 |
|
|
MIC28511-2YFL-EVEVAL BOARD FOR MIC285112 |
0 |
|
Datasheet | Hyper Speed Control® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.6V ~ 60V | Buck | 300kHz | Board(s) | MIC28511-2 |
|
|
MIC28512-1YFL-EVEVAL BOARD FOR MIC285121 |
0 |
|
Datasheet | HyperLight Load® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.6V ~ 70V | Buck | 300kHz | Board(s) | MIC28512-1 |
|
|
MIC28512-2YFL-EVEVAL BOARD FOR MIC285122 |
0 |
|
Datasheet | Hyper Speed Control® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4.6V ~ 70V | Buck | 300kHz | Board(s) | MIC28512-2 |
|
DC2249AEVAL BOARD FOR LTM4622 |
0 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 2.5A, 2.5A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4622 |
|
FEBFAN7688-I00250A-GEVBEVAL BOARD FOR FAN3225C FAN7688 |
0 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 250 W | 12.5V | 20A | 300V ~ 450V | Resonant | - | Board(s) | FAN3225C, FAN7688 |
