DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HIP6012EVAL1EVAL BOARD FOR HIP6012 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.3V ~ 12V | 25A | 2.5V ~ 12V | Buck | - | Board(s) | HIP6012 |
|
|
ISL6410AEVAL1EVAL BOARD FOR ISL6410A |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 500mA | 4.5V ~ 5.5V | Buck | - | Board(s) | ISL6410A |
|
|
ISL6410EVAL1EVAL BOARD FOR ISL6410 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 500mA | 3V ~ 3.6V | Buck | - | Board(s) | ISL6410 |
|
|
ISL6551EVAL1EVAL BOARD FOR ISL6551 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 60A | 36V ~ 75V | Buck | 470kHz | Board(s) | ISL6551 |
|
|
ISL6558EVAL1EVAL BOARD FOR ISL6558 |
0 |
|
Datasheet | Endura™ | - | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 100A | 11V ~ 12.6V | Buck | 125kHz | Board(s) | ISL6558 |
|
|
ISL6559EVAL1EVAL BOARD FOR ISL6559 ISL6605 |
0 |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, VRM Supply | 1 Non-Isolated Output | 125 W | 1.25V | 100A | 5V, 12V | Buck | 600kHz | Board(s) | ISL6559, ISL6605 |
|
|
ISL6562EVAL1EVAL BOARD FOR ISL6562 |
0 |
|
- |
- | Bulk | Obsolete | Special Purpose DC/DC, VRM Supply | 1 Non-Isolated Output | 60 W | 1.5V | 40A | 5V, 12V | Buck | 400kHz | Board(s) | ISL6562 |
|
|
ISL6721EVAL1EVAL BOARD FOR ISL6721 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | - | 10 W | 1.8V, 3.3V | - | 48V | - | - | Board(s) | ISL6721 |
|
|
ISL6844EVAL2EVAL BOARD FOR ISL6844 |
0 |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 11 W | 3.3V | 3.35A | 36V ~ 57V | Flyback | - | Board(s) | ISL6844 |
|

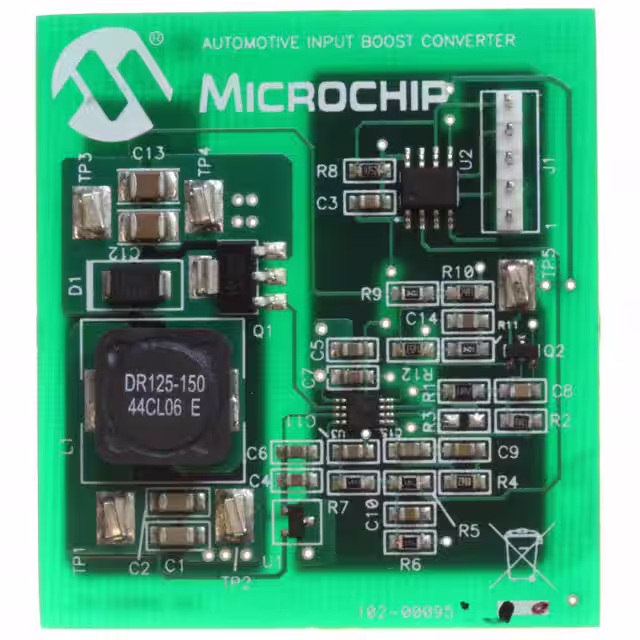

MCP1630DM-DDBS1EVAL BOARD FOR MCP1630 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 36.5V | 400mA | 9V ~ 18V | Boost | 500kHz | Board(s) | MCP1630 |
|

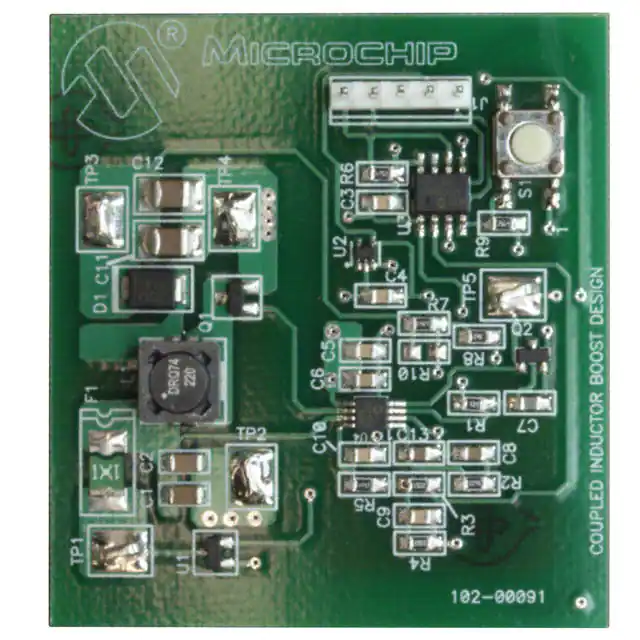

MCP1630DM-DDBS2EVAL BOARD FOR MCP1630 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V ~ 40V | 30mA | 3V ~ 5.5V | Boost | 100kHz | Board(s) | MCP1630 |
|
|
IRAC1166-100WEVAL BOARD FOR IR1166S IRF7853 |
0 |
|
Datasheet | - | Box | Obsolete | AC/DC, Secondary Side | 1 Isolated Output | 100 W | 16V | 6.25A | 90 ~ 264 VAC | Flyback | - | Board(s) | IR1166S, IRF7853 |
|
|
LM3075EVALEVAL BOARD FOR LM3075 |
0 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 25 W | 5V | 5A | 8V ~ 25V | Buck | 300kHz | Board(s) | LM3075 |
|
TPS62420EVM-167EVAL BOARD FOR TPS62420 |
0 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 6V | 1A, 600mA | 2.5V ~ 6V | Buck | 2.25MHz | Board(s), Cable(s) | TPS62420 |
|
|
ISL8107EVAL1ZEVAL BOARD FOR ISL8107 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 9V ~ 75V | Buck | 200kHz | Board(s) | ISL8107 |
|
|
ISL62392HIEVAL1ZEVAL BOARD FOR ISL62392 |
0 |
|
Datasheet | Robust Ripple Regulator™ (R3) | Bulk | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.05V, 1.5V, 3.3V | 15A, 15A, 100mA | 5.5V ~ 25V | Buck | - | Board(s) | ISL62392 |
|
|
ISL8510EVAL1ZEVAL BOARD FOR ISL8510 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 1A, 500mA, 500mA | 4.5V ~ 25V | Buck | 500kHz | Board(s) | ISL8510 |
|
|
ISL8560EVAL2ZEVAL BOARD FOR ISL8560 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 9V ~ 60V | Buck | 500kHz | Board(s) | ISL8560 |
|
|
ISL6844EVAL1ZEVAL BOARD FOR ISL6844 |
0 |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 11 W | 3.3V | 3.35A | 36V ~ 57V | Flyback | - | Board(s) | ISL6844 |
|
|
ISL6752EVAL1ZEVAL BOARD FOR ISL6752 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 720 W | 12V | 60A | 325V ~ 425V | Buck | - | Board(s) | ISL6752 |
