DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL800WZVSFBCFD7TOBO1EVAL BOARD ICE3RBR4765JZ XMC4200 |
1 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 800 W | 12V | 67A | 350V ~ 410V | Buck | 100kHz | Board(s) | ICE3RBR4765JZ, XMC4200 |
|
TMDSHVBLPFCKITEVAL BOARD FOR TMS320F28027 |
0 |
|
- |
C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 300 W | 390V | - | 85 ~ 265 VAC | - | - | Board(s) | TMS320F28027 |
|
STEVAL-ISA147V2EVAL BOARD FOR STM32F051K8 |
0 |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | - | 500 W | - | - | 90 ~ 264 VAC | Flyback | - | Board(s) | STM32F051K8, STM32F334C8 |
|
|
EVAL3KW2LLCCFD7TOBO1EVAL BOARD ICE2QR2280G XMC4400 |
0 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 3 kW | 44V ~ 58V | 55A | 300V ~ 420V | Buck | - | Board(s) | ICE2QR2280G, XMC4400 |
|
STEVAL-ISV001V1EVAL BOARD FOR STP160N75 |
0 |
|
Datasheet | - | Box | Obsolete | DC/AC Converter | 1 Isolated Output | 1 kW | 230VAC | - | 20V ~ 28V | Boost | 16kHz, 100kHz | Board(s) | STP160N75 |
|
EVAL3KW2LLCC720TOBO1EVAL BOARD ICE2QR2280Z XMC4400 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 3 kW | 44V ~ 58V | 55A | 350V ~ 410V | Buck | - | Board(s) | ICE2QR2280Z, XMC4400 |
|
EVAL3KW2LLCP747TOBO1EVAL BOARD ICE2QR2280Z XMC4400 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 3 kW | 44V ~ 58V | 55A | 350V ~ 400V | Buck | - | Board(s) | ICE2QR2280Z, XMC4400 |
|
EVAL1K6WPSUG7DDTOBO1EVAL BOARD ICE2QR2280G XMC1402 |
0 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 1.6 kW | 12.2V | - | 176 ~ 265 VAC | Flyback | - | Board(s) | ICE2QR2280G, XMC1402, XMC4200 |
|
STEVAL-ISA172V1EVAL BOARD STM32F334C8 VIPER27 |
0 |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 2 kW | 48V or 52V | 42A | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | STM32F334C8, VIPer27 |
|

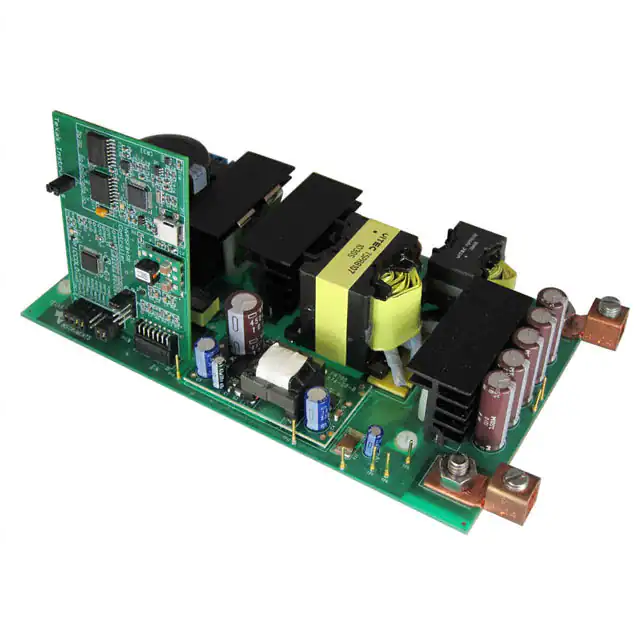

TMDSHVPSFBKITEVAL BOARD FOR TMS320F28027 |
0 |
|
Datasheet | C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Secondary Side | 1 Isolated Output | 500 W | 12V | - | 380V ~ 400V | Full-Bridge | - | Board(s) | TMS320F28027 |
|
STEVAL-ISA172V2EVAL BOARD STM32F334C8 VIPER27 |
0 |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 2 kW | 48V or 52V | 42A | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | STM32F334C8, VIPer27 |
|
|
TPS7H4001EVM-CVALEVAL BOARD FOR TPS7H4001SP |
0 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 18A | 5V | Buck | 500kHz | Board(s) | TPS7H4001-SP |
|
|
NCP1910GEVBEVAL BOARD FOR NCP1910 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 3V ~ 5.5V | Buck | 1MHz | Board(s) | NCP1910 |
|
|
RTKA215300DE0000BUEVAL BOARD FOR RAA215300 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 9 Non-Isolated Outputs | - | - | 5A, 3.5A, 1.5A, 1.5A, 1A, 600mA, 300mA, 300mA, 50mA | 2.7V ~ 5.5V | Buck | - | Board(s) | RAA215300 |
|
|
TPS7H4001QEVM-CVALEVAL BOARD FOR TPS7H4001SP |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V | 72A | 5V | Buck | 500kHz | Board(s) | TPS7H4001-SP |
|
|
TPS50602EVM-CVALEVAL BOARD FOR TPS50602SP |
1 |
|
- |
SWIFT™ | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 6A, 6A | 4.5V ~ 7V | Buck | 500kHz | Board(s) | TPS50602-SP |
|
MCP1601EVEVAL BOARD FOR MCP1601 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.05V, 2.45V or 3.28V | 500mA | 2.7V ~ 5.5V | Buck | 750kHz | Board(s) | MCP1601 |
|
|
EL7535EVAL1EVAL BOARD FOR EL7535 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 350mA | 2.5V ~ 6V | Buck | - | Board(s) | EL7535 |
|
|
EL7536EVAL1EVAL BOARD FOR EL7536 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.5V ~ 5.5V | Buck | - | Board(s) | EL7536 |
|
|
HIP4082EVALEVAL BOARD FOR HIP4082 |
0 |
|
Datasheet | - | - | Obsolete | DC/AC Converter | 1 Isolated Output | - | 115VAC | - | 11V ~ 15V | - | - | Board(s) | HIP4082 |
