DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

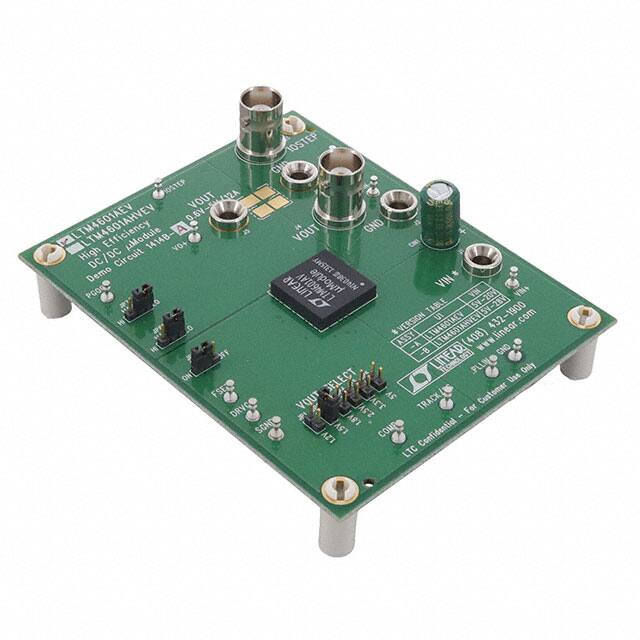

DC1414B-AEVAL BOARD FOR LTM4601AEV |
1 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5V | 12A | 4.5V ~ 20V | Buck | 850kHz | Board(s) | LTM4601AEV |
|
DC2268A-CEVAL BOARD FOR LTM4628 |
1 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 5.5V | 8A, 8A | 4.5V ~ 26.5V | Buck | - | Board(s) | LTM4628 |
|
|
DC2665B-CEVAL BOARD FOR LTM4657 |
0 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 8A | 3.1V ~ 20V | Buck | 500kHz | Board(s) | LTM4657 |
|

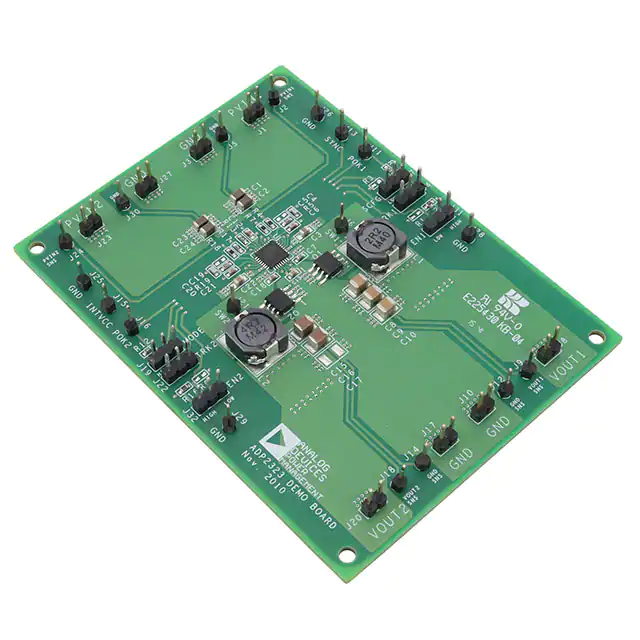

ADP2323-EVALZEVAL BOARD FOR ADP2323 |
1 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 3A, 3A | 4.5V ~ 20V | Buck | 250kHz ~ 1.2MHz | Board(s) | ADP2323 |
|

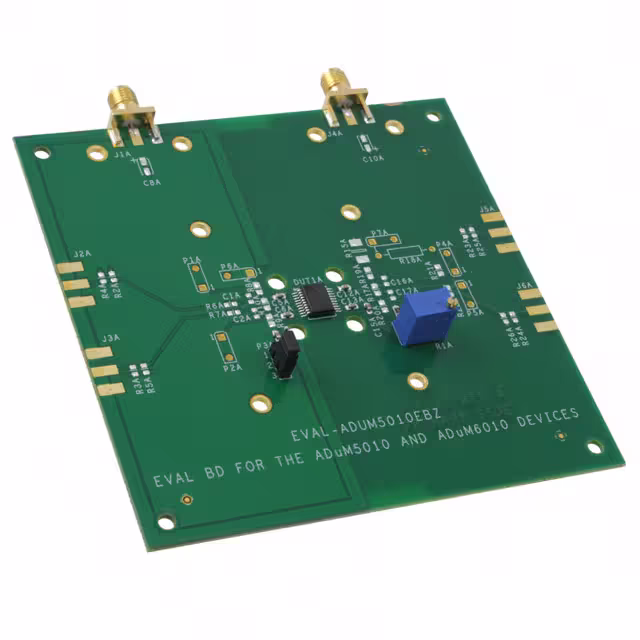

EVAL-ADUM5010EBZEVAL BOARD FOR ADUM5010 |
0 |
|
Datasheet | IsoPower®, iCoupler® | Box | Active | DC/DC Isolated Power Supply | 1 Isolated Output | - | 3.15V ~ 5.25V | - | - | - | - | Board(s) | ADuM5010 |
|

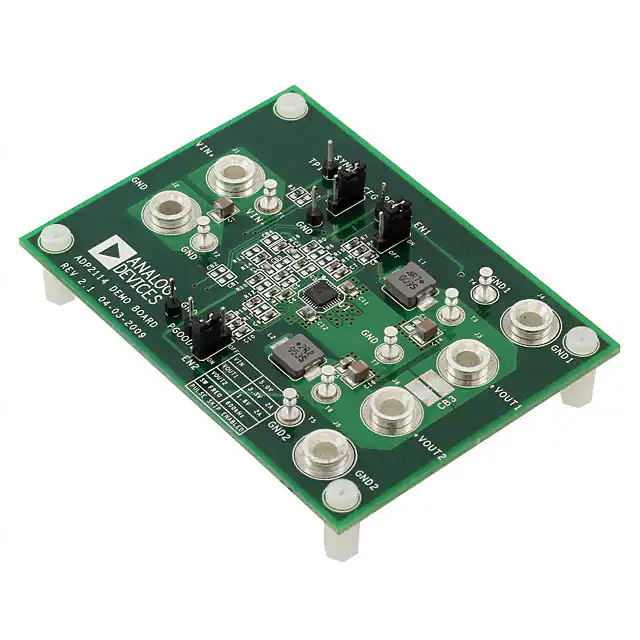

ADP2114-EVALZEVAL BOARD FOR ADP2114 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 2A, 2A | 2.75V ~ 5.5V | Buck | 600kHz | Board(s) | ADP2114 |
|
|
DC3109A-AEVAL BOARD FOR LTC3306 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1.75A | 2.25V ~ 5.5V | Buck | - | Board(s) | LTC3306 |
|
|
DC3109A-CEVAL BOARD FOR LTC3306 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1.75A | 2.25V ~ 5.5V | Buck | - | Board(s) | LTC3306 |
|
|
EVAL-ADPL54203-AZEVAL BOARD FOR ADPL54203 |
5 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | - | 4.75V ~ 5.25V | 2.2A | 10V ~ 28V | Flyback | 345kHz | Board(s) | ADPL54203 |
|
|
DC3089AEVAL BOARD FOR LTM4686B |
2 |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.5V ~ 3.6V | 14A, 14A | 4.5V ~ 5.75V | Buck | - | Board(s) | LTM4686B |
