DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

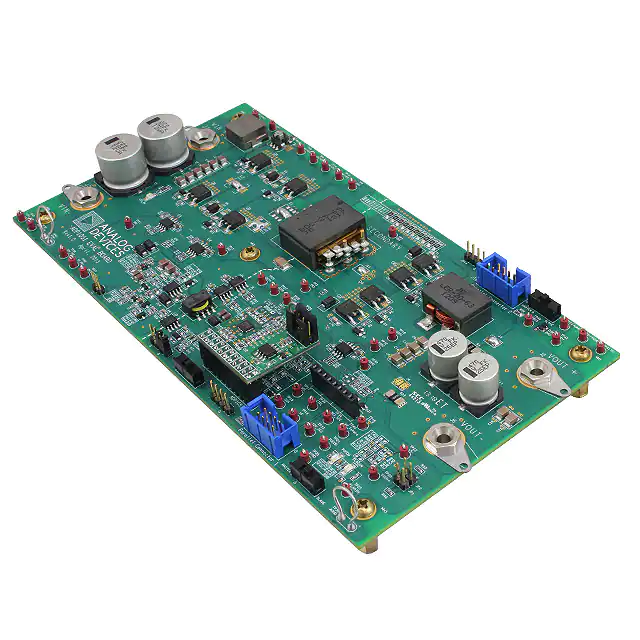

ADP1051-240-EVALZEVAL BOARD FOR ADP1051 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 12V | 20A | 36V ~ 75V | Buck | 120kHz | Board(s) | ADP1051 |
|

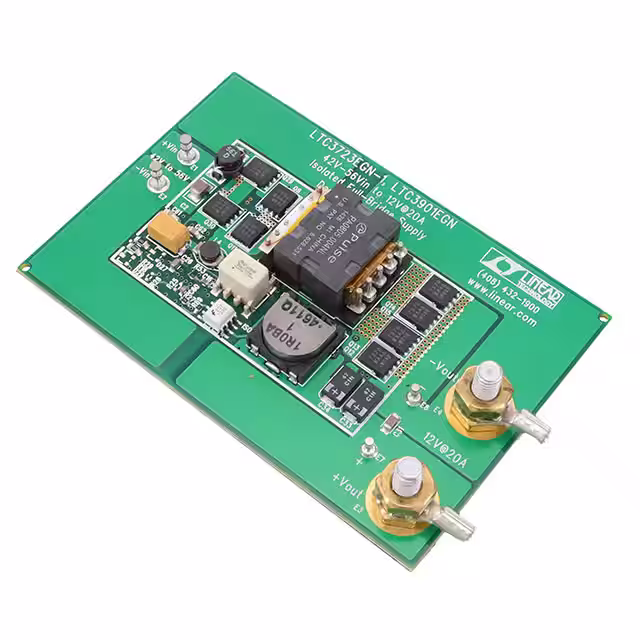

DC719AEVAL BOARD FOR LT1431 LTC37231 |
0 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 20A | 42V ~ 56V | Full-Bridge | 300kHz | Board(s) | LT1431, LTC3723-1, LTC3901, LTC4440 |
|

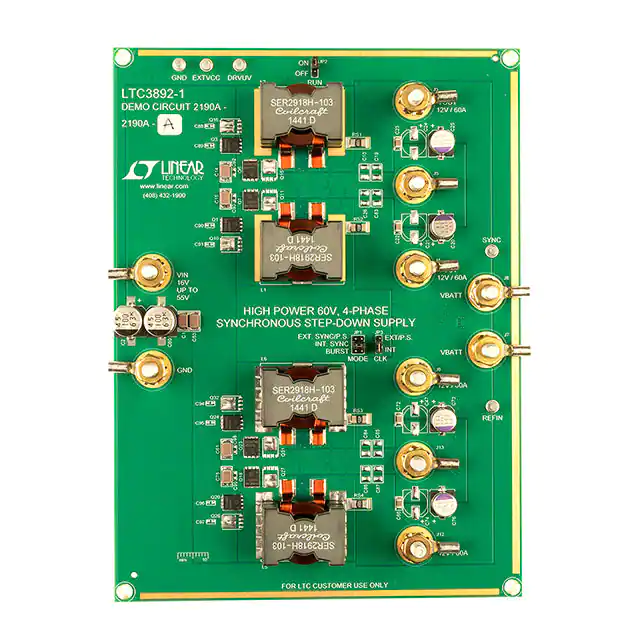

DC2190A-AEVAL BOARD FOR LTC3892EFE1 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 12V | 60A | 16V ~ 55V | Buck | 140kHz | Board(s) | LTC3892EFE-1 |
|

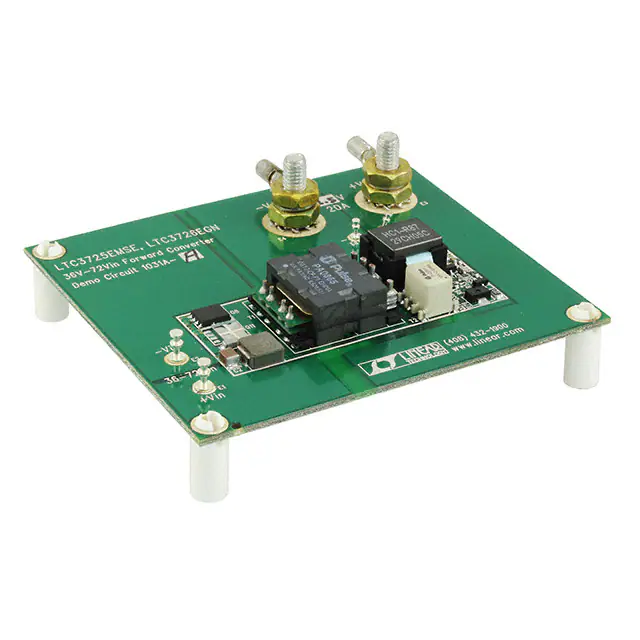

DC1031A-AEVAL BOARD FOR LTC3725 LTC3726 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 2.5V | 20A | 36V ~ 72V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
|

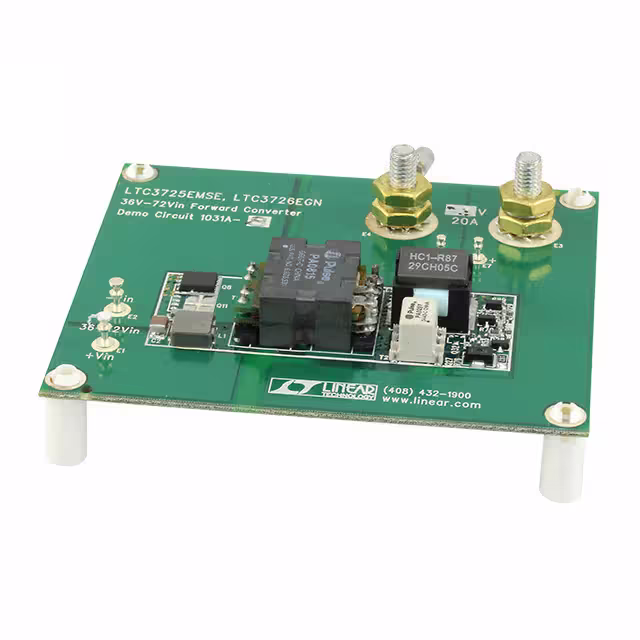

DC1031A-BEVAL BOARD FOR LTC3725 LTC3726 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 20A | 36V ~ 72V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
|

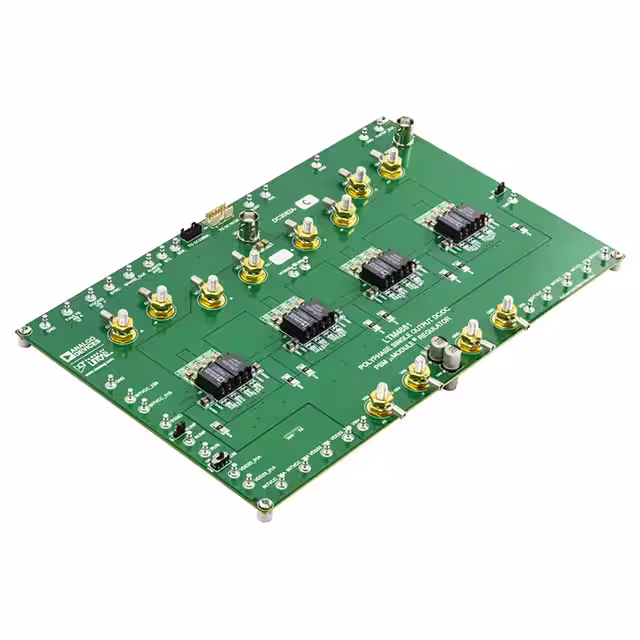

DC3082A-CEVAL BOARD FOR LTM4681 |
3 |
|
Datasheet | µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 480A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4681 |
|
DC3099AEVAL BOARD FOR LT8640A |
5 |
|
Datasheet | Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.85V ~ 5.15V | 5A | 5.7V ~ 42V | Buck | 2MHz | Board(s) | LT8640A |
|

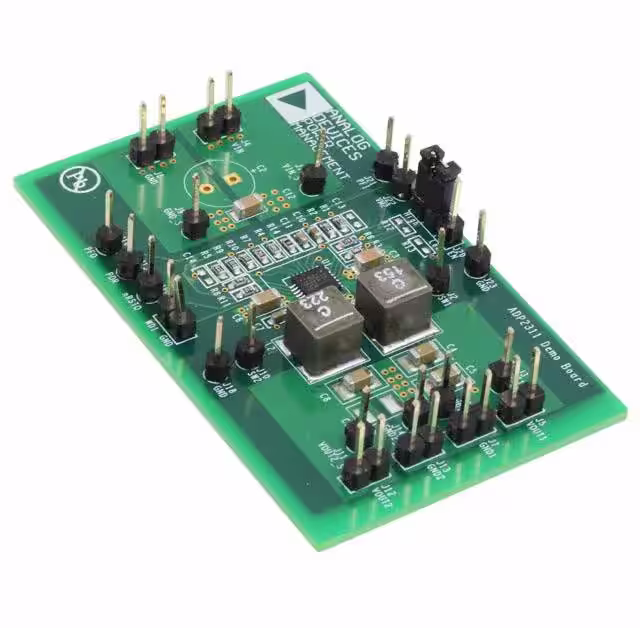

ADP2311-1-EVALZEVAL BOARD FOR ADP2311 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 1A, 1A | 4.5V ~ 18V | Buck | 300kHz | Board(s) | ADP2311 |
|
|
ADP1883-0.3-EVALZEVAL BOARD FOR ADP1883 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | - | - | - | - | - | Buck | 300kHz | Board(s) | ADP1883 |
|
|
ADP1882-1.0-EVALZEVAL BOARD FOR ADP1882 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | - | - | - | - | - | Buck | 1MHz | Board(s) | ADP1882 |
