DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS84250EVM-001EVAL BOARD FOR TPS84250 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V, 12V or 15V | 2.5A | 7V ~ 50V | Buck | - | Board(s) | TPS84250 |
|
TPS84259EVM-001EVAL BOARD FOR TPS84259 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -3.3V, -5V, -12V, -15V | 2A | 4.5V ~ 40V | Inverting | 800kHz | Board(s) | TPS84259 |
|
LM2736Y EVAL/NOPBEVAL BOARD FOR LM2736 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 750mA | 3V ~ 18V | Buck | 550kHz | Board(s) | LM2736 |
|
TPS84A20EVM-001EVAL BOARD FOR TPS84A20 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.9V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 10A | 2.95V ~ 17V | Buck | - | Board(s) | TPS84A20 |
|
ADP5034-1-EVALZEVAL BOARD FOR ADP5034 |
0 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1.2A, 1.2A, 300mA, 300mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP5034 |
|

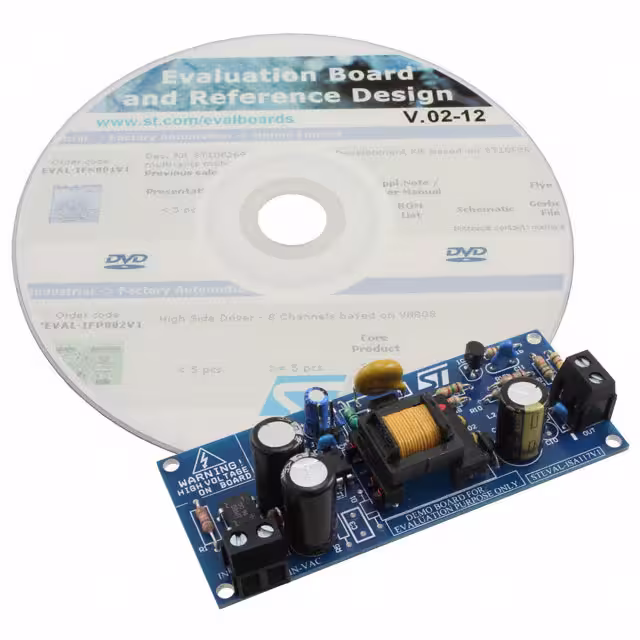

STEVAL-ISA117V1EVAL BOARD FOR VIPER16 |
5 |
|
Datasheet | VIPer™ plus | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 4.2 W | 12V | 350mA | 90 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer16 |
|

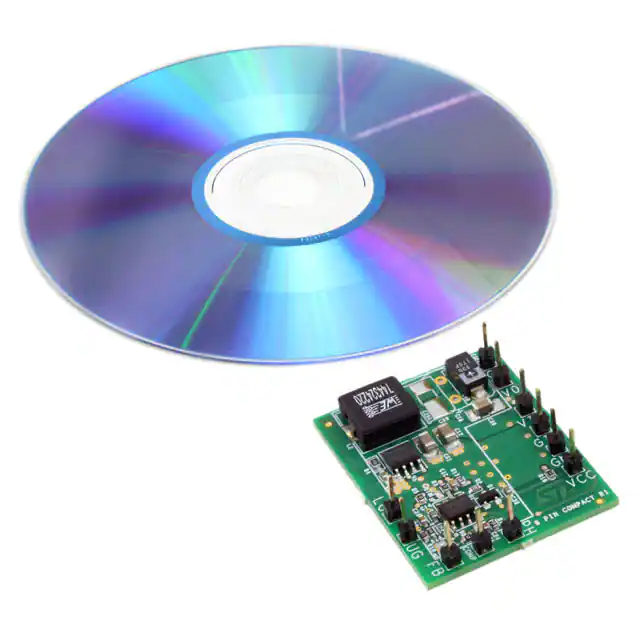

STEVAL-ISA039V1EVAL BOARD FOR L6727 |
4 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V | 5A | 5V ~ 12V | Buck | 300kHz | Board(s) | L6727 |
|

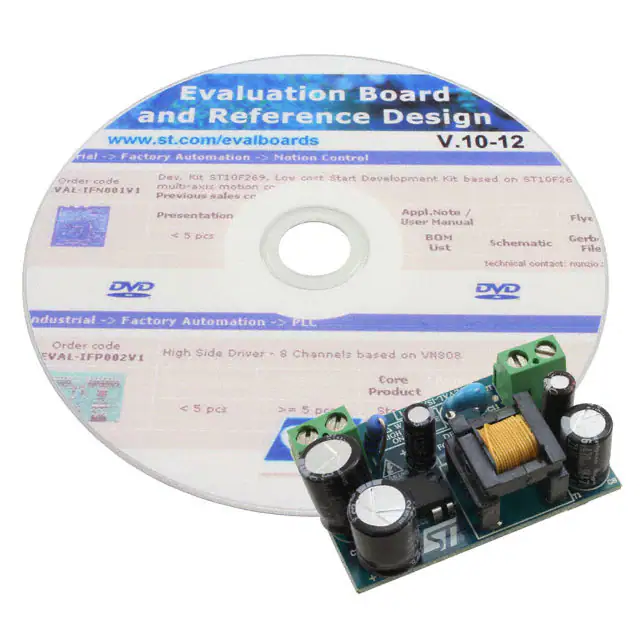

STEVAL-ISA136V1EVAL BOARD FOR VIPER06 |
4 |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 3 W | 5V | 600mA | 85 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer06 |
|

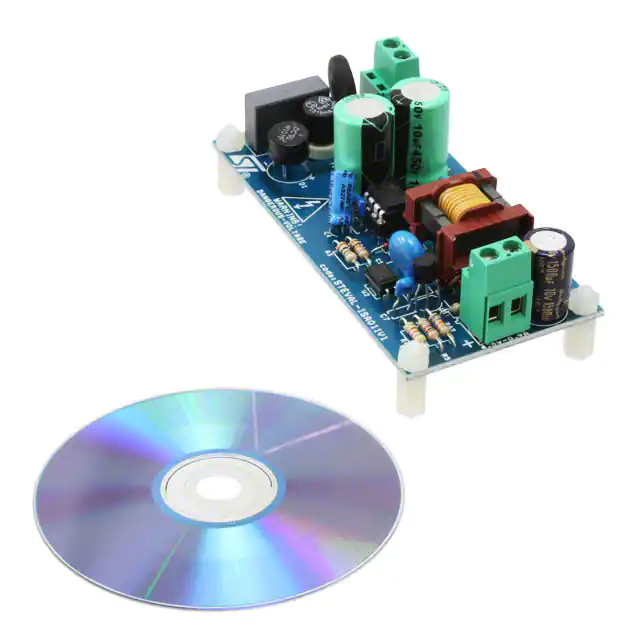

STEVAL-ISA011V1EVAL BOARD FOR VIPER12A |
3 |
|
Datasheet | VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 4.1 W | 4.5V | 900mA | 88 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|
STEVAL-ISA069V1EVAL BOARD FOR ST1S31 |
0 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5.5V | 3A | 2.8V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST1S31 |
|

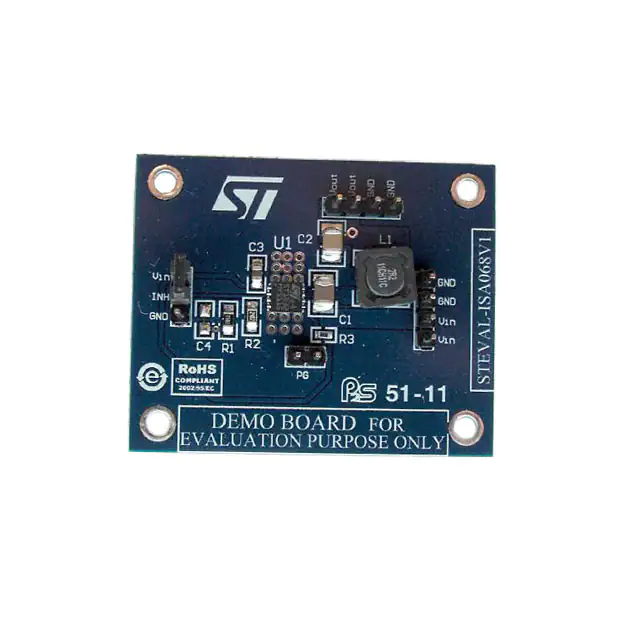

STEVAL-ISA068V1EVAL BOARD FOR ST1S32 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 2.8V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST1S32 |
|

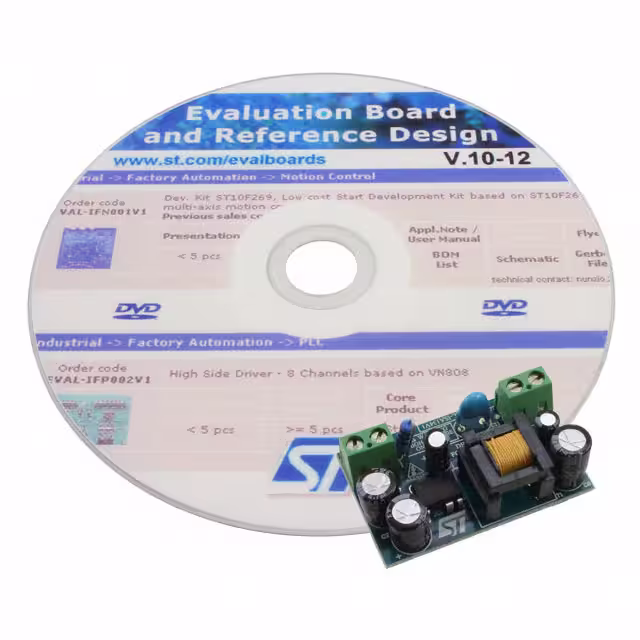

STEVAL-ISA134V1EVAL BOARD FOR VIPER06 |
0 |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 4 W | 12V | 333mA | 85 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer06 |
|
KIT6W12VBIASICE3TOBO1EVAL BOARD FOR ICE3RBR4765JZ |
0 |
|
Datasheet | CoolMOS™, CoolSET™F3R | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 6 W | 12V | - | 90V ~ 400V | - | 65kHz | Board(s) | ICE3RBR4765JZ |
|
TL1451AEVM-166EVAL BOARD FOR TL1451A |
1 |
|
Datasheet | - | Bag | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 1.5A, 1A | 4.5V ~ 5.5V | Buck | 300kHz | Board(s) | TL1451A |
|
LM3674MF-ADJEVEVAL BOARD FOR LM3674 |
1 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 3.3V | 600mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LM3674 |
|
LM20154EVALEVAL BOARD FOR LM20154 |
1 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LM20154 |
|
LM3678SD-1.2EVEVAL BOARD FOR LM3678 |
1 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V or 1.2V | 1.5A | 2.5V ~ 5.5V | Buck | 3.3MHz | Board(s) | LM3678 |
|
TPS40193EVM-001EVAL BOARD FOR TPS40193 |
1 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 8V ~ 14V | Buck | 300kHz | Board(s) | TPS40193 |
|
TPS51511EVMEVAL BOARD FOR TPS51511 |
1 |
|
- |
D-CAP™ | Box | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 1.2V, 1.2V | 15A, 2.5A | 3V ~ 25V | Buck | 350kHz | Board(s) | TPS51511 |
|
TPS62270EVM-306EVAL BOARD FOR TPS62270 |
1 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V, 1.15V | 400mA | 2V ~ 6V | Buck | 2.25MHz | Board(s) | TPS62270 |
