DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS62184EVM-581EVAL BOARD FOR TPS62184 |
1 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 4V ~ 17V | Buck | - | Board(s) | TPS62184 |
|
ISL91106IIN-EVZEVAL BOARD FOR ISL91106 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | 2A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91106 |
|
|
TPS61130EVM-206EVAL BOARD FOR TPS61130 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up or Down with LDO | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 300mA, 200mA | 3V ~ 4.2V | Buck-Boost | - | Board(s) | TPS61130 |
|
LM2703EVEVAL BOARD FOR LM2703 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | 2.2V ~ 7V | Boost | - | Board(s) | LM2703 |
|
LM2736X EVAL/NOPBEVAL BOARD FOR LM2736 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 750mA | 3V ~ 18V | Buck | 1.6MHz | Board(s) | LM2736 |
|

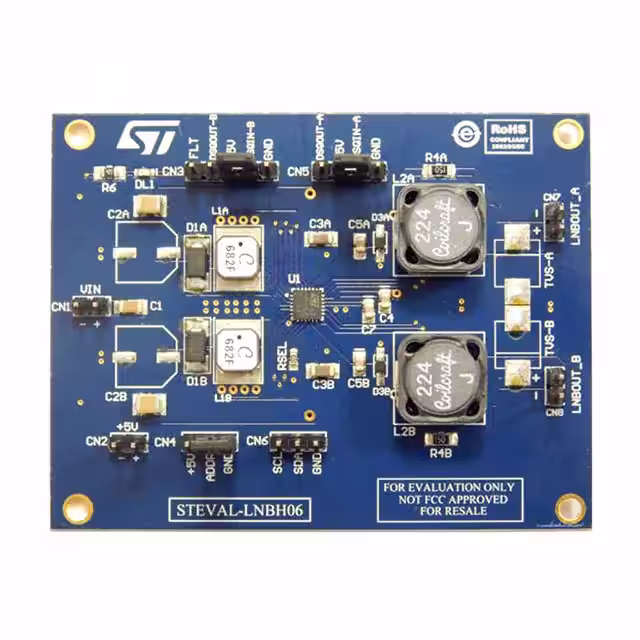

STEVAL-LNBH06EVAL BOARD FOR LNBH26S |
2 |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH26S |
|
|
ISL854102DEMO1ZEVAL BOARD FOR ISL854102 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 3V ~ 40V | Buck | 500kHz | Board(s) | ISL854102 |
|
|
AP3125EV1EVAL BOARD FOR AP3125 |
0 |
|
- |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | - | 12V | 2A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | AP3125 |
|
|
UCC2540EVM-054EVAL BOARD FOR UCC2540 UCC38083 |
0 |
|
Datasheet | Predictive Gate Drive™ | - | Obsolete | AC/DC, Primary and Secondary Side | 2 Isolated Outputs | 36 W | 1.5V, 3.3V | 7.5A, 7.5A | 18.5V ~ 35V | Buck | 400kHz | Board(s) | UCC2540, UCC38083 |
|
|
UCD9112EVMEVAL BOARD FOR UCD9112 |
0 |
|
Datasheet | Fusion Digital Power™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 4V | 40A | 5V ~ 14V | Buck | 500kHz | Board(s), Cable(s) | UCD9112 |
|
|
TPS23753EVM-001EVAL BOARD FOR TPS23753 |
0 |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 7 W | 5V | 1.2A | 30V ~ 57V | Flyback | 248Hz | Board(s) | TPS23753 |
|
|
TPS23753EVM-004EVAL BOARD FOR TPS23753 |
0 |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 10 W | 3.3V | 3A | 30V ~ 57V | Flyback | 125kHz | Board(s) | TPS23753 |
|
|
TPS56300EVM-139EVAL BOARD FOR TPS56300 |
0 |
|
Datasheet | - | - | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 4A, 500mA | 5V | Buck | 300kHz | Board(s) | TPS56300 |
|
|
TPS60120EVM-142EVAL BOARD FOR TPS60120 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 200mA | 1.8V ~ 3.6V | Boost | - | Board(s) | TPS60120 |
|
|
TPS6734EVMEVAL BOARD FOR TPS6734 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 120mA | 3.75V ~ 12V | Boost | 170kHz | Board(s) | TPS6734 |
|
|
TPS6735EVMEVAL BOARD FOR TPS6735 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 200mA | 4V ~ 6.2V | Inverting | 160Hz | Board(s) | TPS6735 |
|
|
TPS61100EVM-216EVAL BOARD FOR TPS61100 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 250mA, 120mA | 0.9V ~ 3.6V | Boost | - | Board(s) | TPS61100 |
|
|
TPS61106EVM-216EVAL BOARD FOR TPS61106 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 250mA, 120mA | 0.9V ~ 3.6V | Boost | - | Board(s) | TPS61106 |
|
|
UCC27222EVMEVAL BOARD FOR UCC27222 |
0 |
|
Datasheet | Predictive Gate Drive™ | - | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 1.8V | 20A | 4.75V ~ 5.5V | Buck | 500kHz | Board(s) | UCC27222 |
|
REG711EVM-232EVAL BOARD FOR REG711 |
0 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 50mA | 2.7V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | REG711 |
