DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

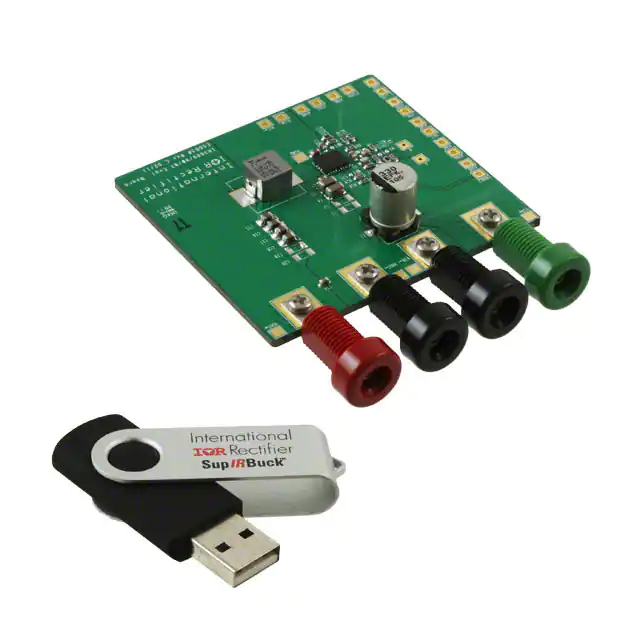

IRDC3898EVAL BOARD FOR IR3898 |
1 |
|
Datasheet | SupIRBuck® | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 12V | Buck | 600kHz | Board(s) | IR3898 |
|

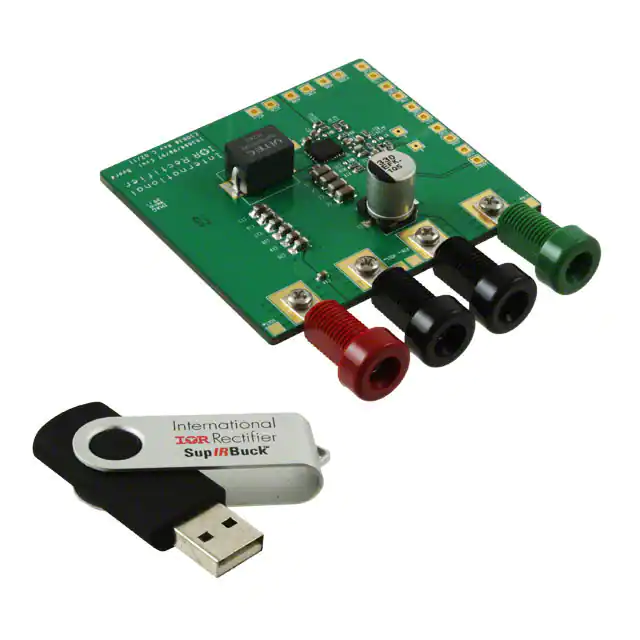

IRDC3899EVAL BOARD FOR IR3899 |
0 |
|
Datasheet | SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 9A | 12V | Buck | 600kHz | Board(s) | IR3899 |
|

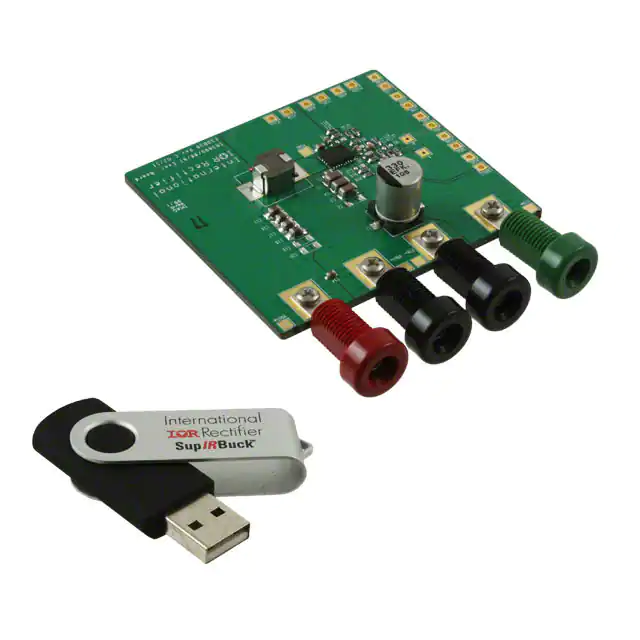

IRDC3897EVAL BOARD FOR IR3897 |
0 |
|
Datasheet | SupIRBuck® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 12V | Buck | 600kHz | Board(s) | IR3897 |
|
IRDC3894EVAL BOARD FOR IR3894 |
1 |
|
Datasheet | SupIRBuck® | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 12V | Buck | 600kHz | Board(s) | IR3894 |
|

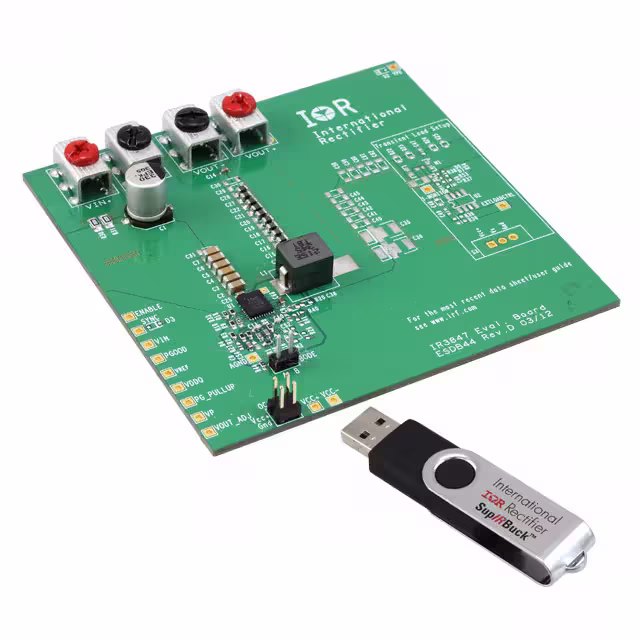

IRDC3847EVAL BOARD FOR IR3847 |
0 |
|
Datasheet | SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 12V | Buck | 600kHz | Board(s) | IR3847 |
|

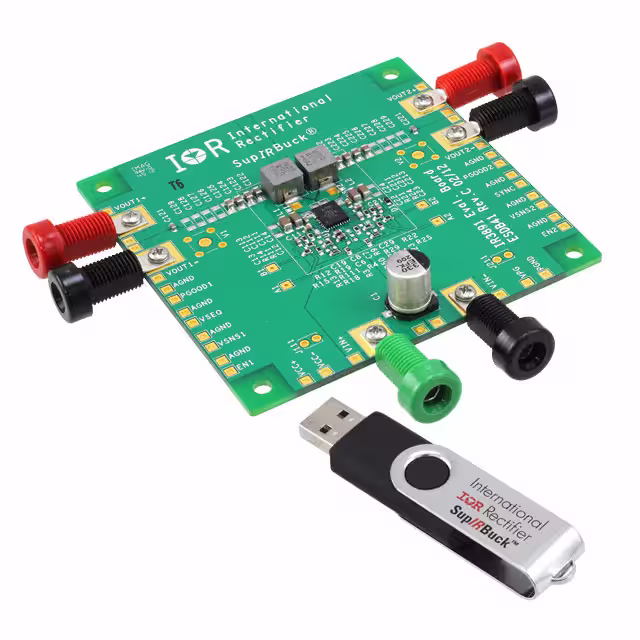

IRDC3891EVAL BOARD FOR IR3891 |
0 |
|
Datasheet | SupIRBuck® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 4A, 4A | 12V | Buck | 600kHz | Board(s) | IR3891 |
|

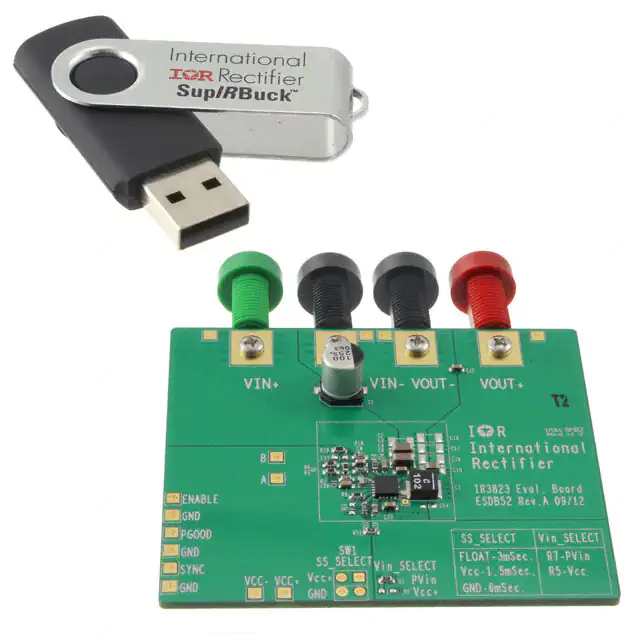

IRDC3823EVAL BOARD FOR IR3823 |
1 |
|
Datasheet | SupIRBuck® | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 12V | Buck | 1MHz | Board(s) | IR3823 |
|
TLS41205VCOREBOARDTOBO1EVAL BOARD FOR TLS41205 |
0 |
|
Datasheet | OPTIREG™ | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 4V ~ 35V | Buck | - | Board(s) | TLS41205 |
|
|
TLS412033VCOREBOARDTOBO1EVAL BOARD FOR TLS412033 |
4 |
|
Datasheet | OPTIREG™ | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6V ~ 35V | Buck | 2.2MHz | Board(s) | TLS412033 |
|
IRDC3883EVAL BOARD FOR IR3883 |
3 |
|
Datasheet | - | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 12V | Buck | 800kHz | Board(s) | IR3883 |
