DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

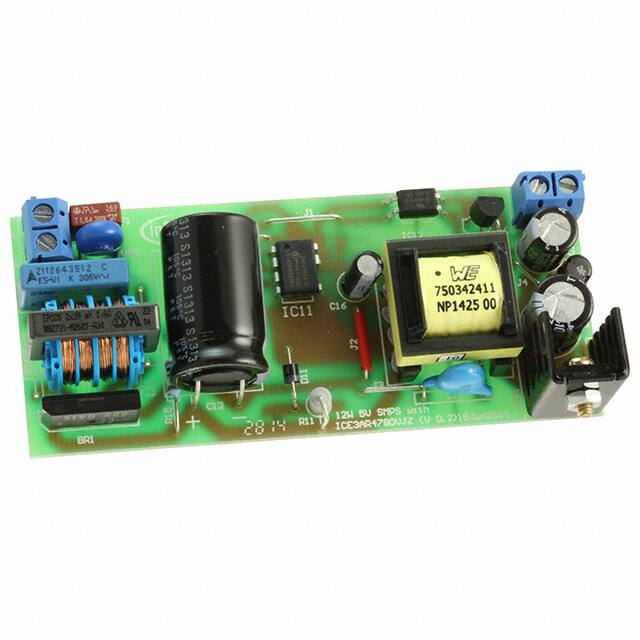

EVAL3AR4780VJZTOBO1EVAL BOARD FOR ICE3AR4780VJZ |
1 |
|
Datasheet | CoolMOS™, CoolSET™F3R80 | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 12 W | 5V | - | - | Flyback | 100kHz | Board(s) | ICE3AR4780VJZ |
|

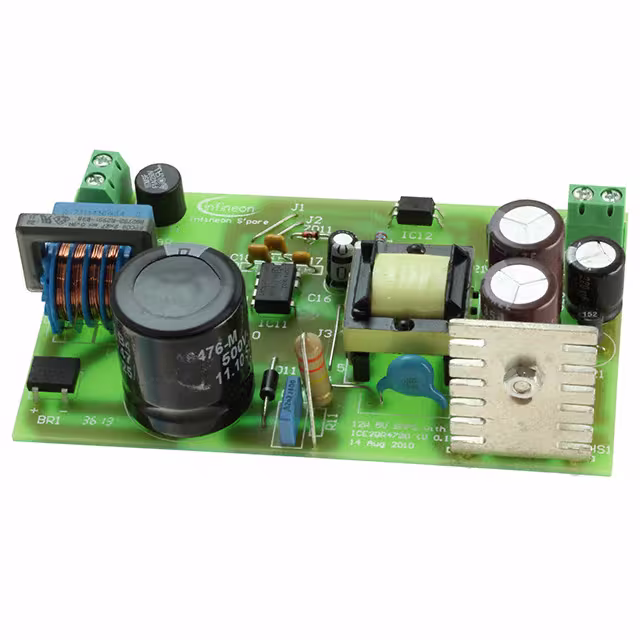

EVALQRCICE2QR4780ZTOBO1EVAL BOARD FOR ICE2QR4780Z |
1 |
|
Datasheet | CoolMOS™, CoolSET™-Q1 | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 12 W | 5V | - | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE2QR4780Z |
|

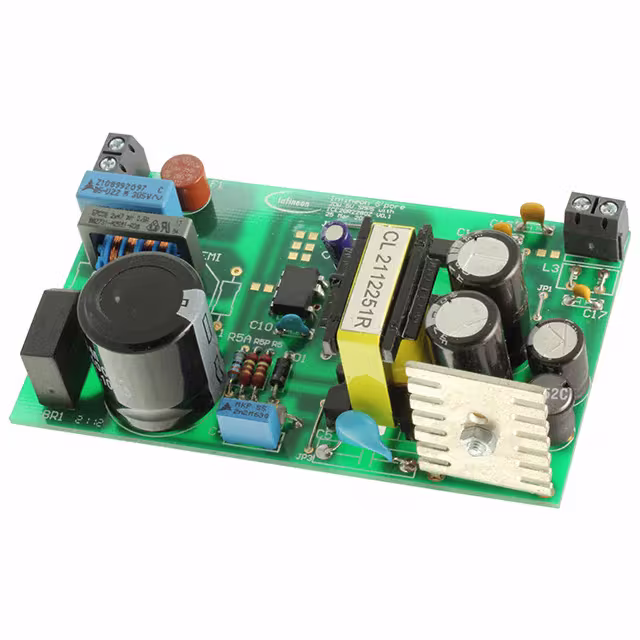

EVALQRCICE2QR2280ZTOBO1EVAL BOARD FOR ICE2QR2280Z |
0 |
|
Datasheet | CoolMOS™, CoolSET™-Q1 | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 20 W | 5V | 4A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | ICE2QR2280Z |
|
IRNBPS1EVAL BOARD FOR IRF7805 IRF7807 |
0 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V ~ 2V | 7A | 10V ~ 24V | Buck | 300kHz | Board(s) | IRF7805, IRF7807 |
|
|
IRDC3812EVAL BOARD FOR IR3812 |
0 |
|
Datasheet | SupIRBuck® | Tube | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 5V ~ 12V | Buck | - | Board(s) | IR3812 |
|
S6SAP412A78SA1001EVAL BOARD FOR S6AP412A |
1 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1V, 1.8V, 3.3V | 4A, 1.2A, 600mA | 2.5V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | S6AP412A |
|

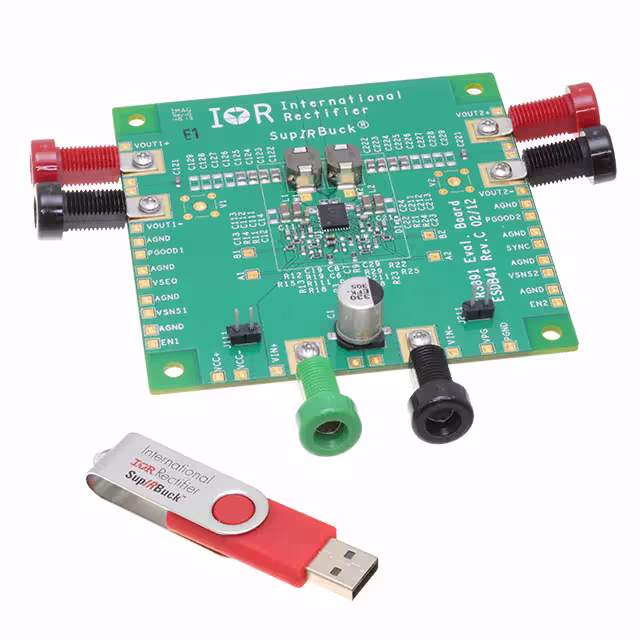

IRDC3892EVAL BOARD FOR IR3892 |
1 |
|
Datasheet | SupIRBuck® | Box | Discontinued at Digi-Key | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 6A, 6A | 12V | Buck | 600kHz | Board(s) | IR3892 |
|

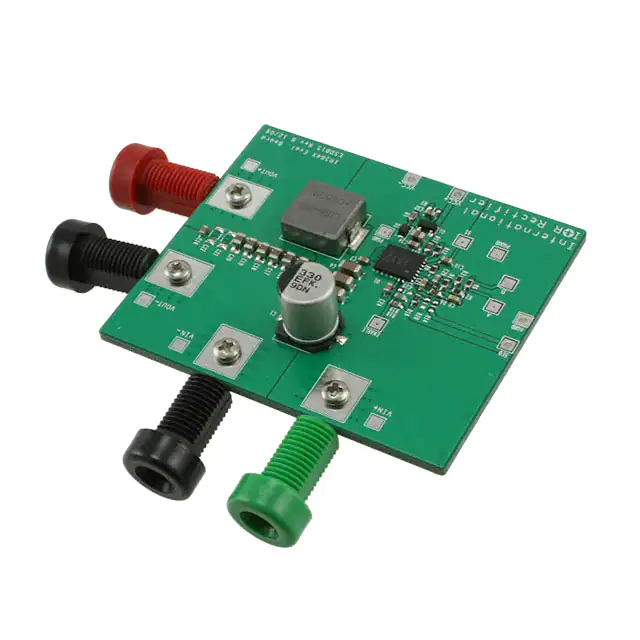

IRDC3840WEVAL BOARD FOR IR3840W |
0 |
|
Datasheet | SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 12A | 12V | Buck | 600kHz | Board(s) | IR3840W |
|

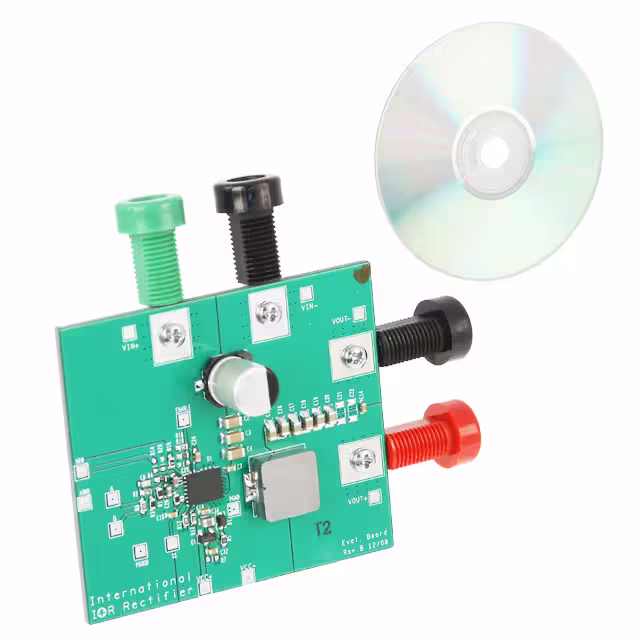

IRDC3841WEVAL BOARD FOR IR3841W |
0 |
|
Datasheet | SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 8A | 12V | Buck | 600kHz | Board(s) | IR3841W |
|

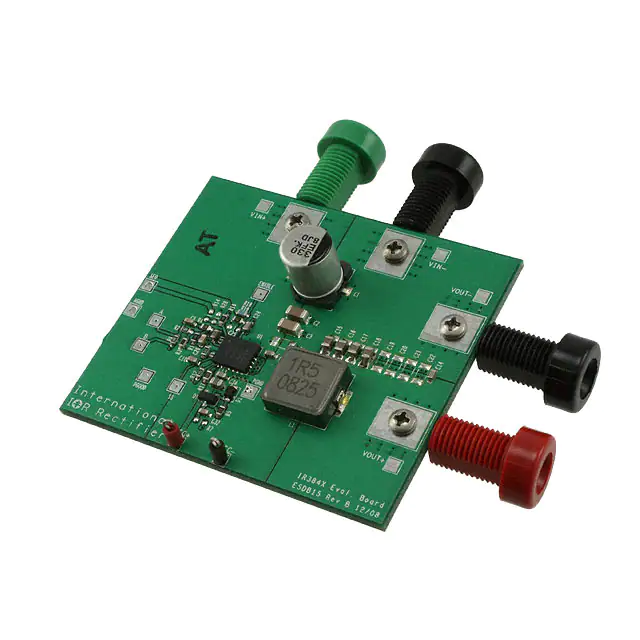

IRDC3842WEVAL BOARD FOR IR3842W |
0 |
|
Datasheet | SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 12V | Buck | 600kHz | Board(s) | IR3842W |
