EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

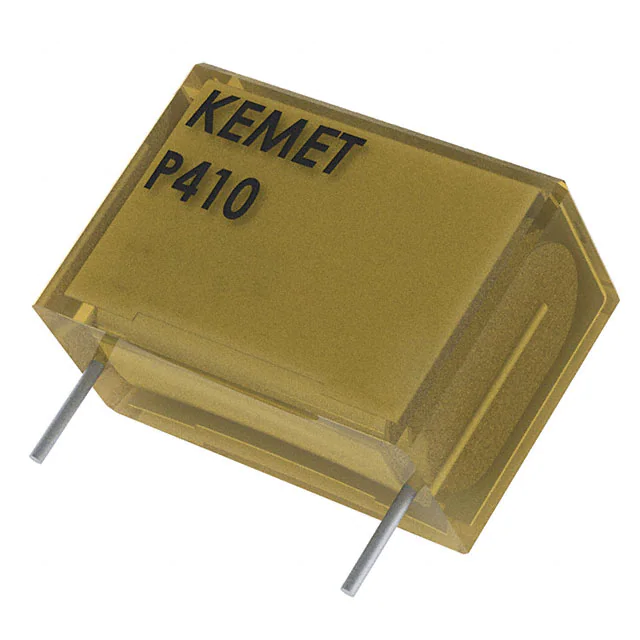

P410QS333M300AH101FILTER RC 100 OHM/33NF TH |
1,203 |
|
- |
P410 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 33nF | No | -40°C ~ 85°C | General Purpose | 300VAC | - | - | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.563" (14.30mm) |
|
P409QM473M275AH101FILTER RC 100 OHM/47NF TH |
1,546 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|
|
P410QM223M300AH101FILTER RC 100 OHM/22NF TH |
1,598 |
|
- |
P410 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 22nF | No | -40°C ~ 85°C | General Purpose | 300VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|
|
P409CE104M275AH470FILTER RC 47 OHM/0.1UF TH |
493 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
|
P409CP104M275AH331FILTER RC 330 OHM/0.1UF TH |
512 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 330 | - | R = 330Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
|
P409CP104M275AH151FILTER RC 150 OHM/0.1UF TH |
141 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 150 | - | R = 150Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|

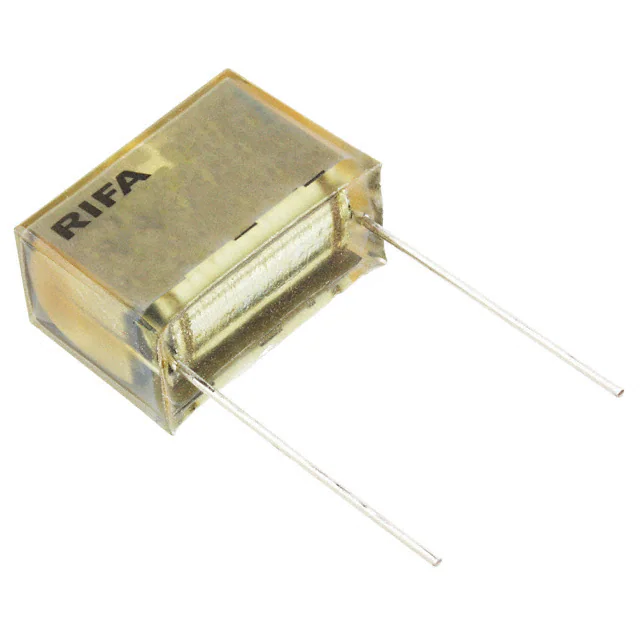

PMR209ME6470M220R30FILTER RC 220 OHM/0.47UF TH |
0 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|
|
PMR209ME6470M100R30FILTER RC 100 OHM/0.47UF TH |
219 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|

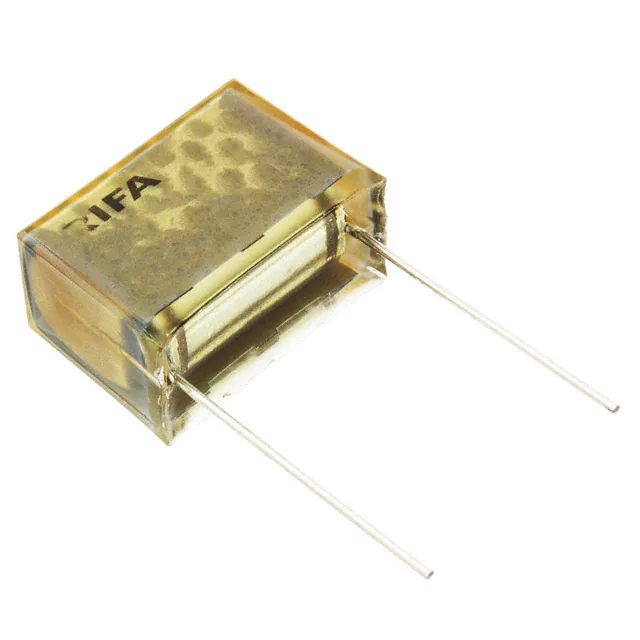

PMR209ME6470M047R30FILTER RC 47 OHM/0.47UF TH |
198 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|

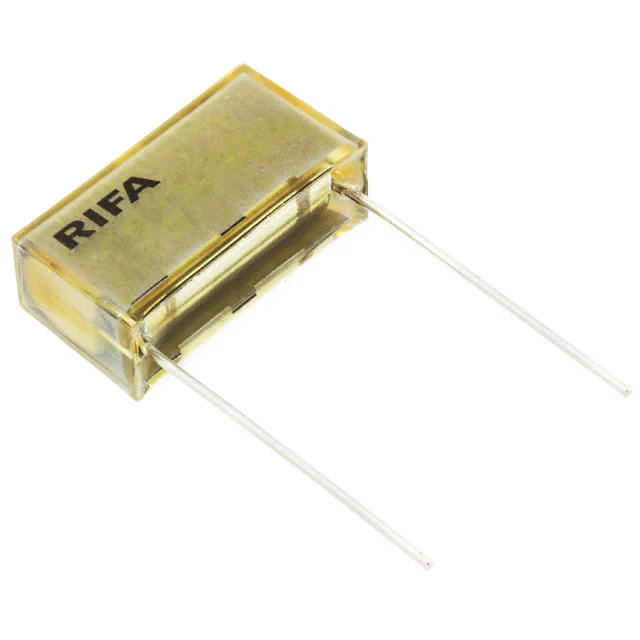

PMR210ME6100M100R30FILTER RC 100 OHM/0.1UF TH |
405 |
|
- |
PMR210 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 1.201" L x 0.417" W (30.50mm x 10.60mm) | 0.634" (16.10mm) |
|
|
P410EE104M300AH101FILTER RC 100 OHM/0.1UF TH |
152 |
|
- |
P410 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 300VAC | - | - | Through Hole | 1.201" L x 0.417" W (30.50mm x 10.60mm) | 0.634" (16.10mm) |
|
NUF6010MUT2GFILTER RC(PI) 100 OHM/7PF SMD |
1,842 |
|
- |
- | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | 250MHz (Cutoff) | -20dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 7pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.098" L x 0.047" W (2.50mm x 1.20mm) | 0.022" (0.55mm) |
|
SZNUF6401MNWT1GXDFN12W12 EMI FILTER WITH ESD |
2,900 |
|
- |
- | 12-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | 110MHz (Cutoff) | -30dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohm, C = 17pF | Yes | -40°C ~ 105°C | - | - | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 0.118" L x 0.053" W (3.00mm x 1.35mm) | 0.039" (1.00mm) |
|
NUF4403MNT1GFILTER RC(PI) 100 OHM/17PF SMD |
1,134 |
|
- |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 4 | 105MHz (Cutoff) | -35dB @ 800MHz ~ 2.2GHz | 100 | - | R = 100Ohms, C = 17pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
NUF3102MUTAGFILTER RC(PI) 150MHZ ESD SMD |
2,295 |
|
- |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 3 | 150MHz (Cutoff) | -25dB @ 800MHz ~ 5GHz | 47, 100 | - | R = 47Ohm, 100Ohm, C = 13pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.022" (0.55mm) |
|
|
P409CP224M275AH221FILTER RC 220 OHM/0.22UF TH |
207 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
|
P409CP224M275AH101FILTER RC 100 OHM/0.22UF TH |
587 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
|
P409EL474M275AH470FILTER RC 47 OHM/0.47UF TH |
241 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|
|
P409EL224M275AH471FILTER RC 470 OHM/0.22UF TH |
126 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 470 | - | R = 470Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
|
|
P409EL474M275AH330FILTER RC 33 OHM/0.47UF TH |
743 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 33 | - | R = 33Ohms, C = 0.47µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) |
