EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMR209MB5470M047R30FILTER RC 47 OHM/0.047UF TH |
3,244 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|

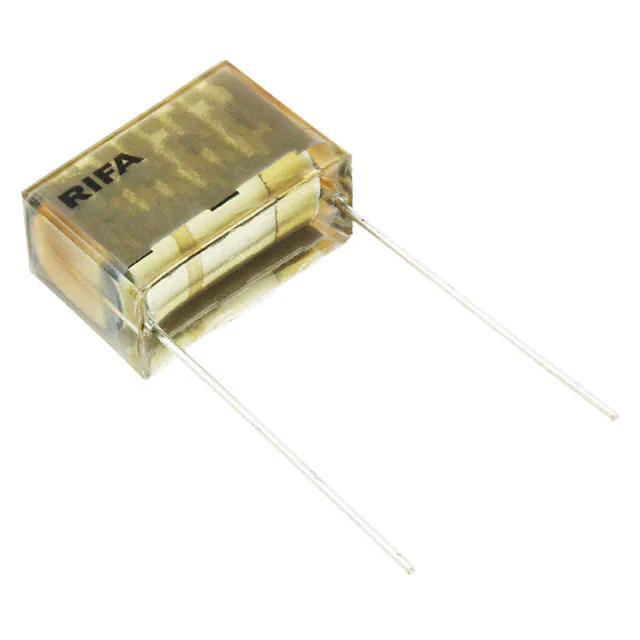

PMR209MC6220M022R30FILTER RC 22 OHM/0.22UF TH |
863 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
|
PMR209MC6220M047R30FILTER RC 47 OHM/0.22UF TH |
846 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.22µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
PMR209MC6100M022R30FILTER RC 22 OHM/0.1UF TH |
923 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
P409CE104M275AH220FILTER RC 22 OHM/0.1UF TH |
156 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 22 | - | R = 22Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) |
|
PMR210MB5220M100R30FILTER RC 100 OHM/0.022UF TH |
2,621 |
|
- |
PMR210 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.022µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|
|
PMR209MB5470M100R30FILTER RC 100 OHM/0.047UF TH |
1,151 |
|
- |
PMR209 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 100 | - | R = 100Ohms, C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 250VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
|
SNUF6401MNT1GFILTER RC(PI) 100 OHM/17PF SMD |
6,900 |
|
- |
- | 12-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | 110MHz (Cutoff) | -30dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 17pF | Yes | -40°C ~ 105°C | - | - | - | - | Surface Mount | 0.118" L x 0.053" W (3.00mm x 1.35mm) | 0.039" (1.00mm) |
|
NUF4310MNTAGFILTER RC(PI) 100 OHM/9PF SMD |
8,405 |
|
- |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 4 | 185MHz (Cutoff) | -25dB @ 800MHz ~ 4GHz | 100 | - | R = 100Ohms, C = 9pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.031" (0.79mm) |
|
EMIF02-SPK03F2FILTER LC(PI) 250PF ESD SMD |
6,000 |
|
- |
EMIF | 5-WFBGA, FCBGA | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 2 | - | -40dB @ 900MHz | 0.07 | 800 mA | C = 250pF | Yes | -30°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.050" L x 0.035" W (1.26mm x 0.89mm) | 0.028" (0.70mm) |
|
EMIF06-1005M12FILTER RC(PI) 100 OHM/45PF SMD |
7,184 |
|
- |
IPAD™ | 12-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | - | -34dB @ 900MHz ~ 1.8GHz | 100 | - | R = 100Ohms, C = 45pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.024" (0.60mm) |
|
|
EMIF02-SPK02F2IC EMI FILTER ESD PROT SMD |
5,457 |
|
- |
EMIF | 5-WFBGA, FCBGA | Tape & Reel (TR) | Active | Low Pass | 3rd | RC (Pi) | 2 | 20MHz (Cutoff) | 45dB @ 900MHz | 0.35 | - | R = 800mOhms, C = 315pF | Yes | - | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.050" L x 0.035" W (1.26mm x 0.89mm) | 0.028" (0.72mm) |
 Exposed Pad.jpg)
|
NUF8401MNT4GFILTER RC(PI) 100 OHM/12PF SMD |
3,517 |
|
- |
- | 16-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | 175MHz (Cutoff) | -25dB @ 800MHz ~ 2.2GHz | 100 | - | R = 100Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.157" L x 0.063" W (4.00mm x 1.60mm) | 0.039" (1.00mm) |
|
EMIF06-MSD04F3FILTER RC(PI) 40 OHM/7.5PF SMD |
11,083 |
|
- |
IPAD™ | 16-WFBGA, FCBGA | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 6 | 550MHz (Cutoff) | - | 40 | - | R = 40Ohms, C = 7.5pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.061" L x 0.061" W (1.54mm x 1.54mm) | 0.026" (0.65mm) |
|
NUF4402MNT1GFILTER RC(PI) 100 OHM/12PF SMD |
21,466 |
|
- |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 4 | 151MHz (Cutoff) | -25dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
KBMF01SC6FILTER RC(PI) 39 OHM/120PF SMD |
11,287 |
|
- |
IPAD™ | SOT-23-6 | Tape & Reel (TR) | Last Time Buy | Low Pass | 2nd | RC (Pi) | 2 | - | - | 39 | - | R = 39Ohms, C = 120pF | Yes | 0°C ~ 70°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.115" L x 0.064" W (2.93mm x 1.63mm) | 0.057" (1.45mm) |
|
NUF8001MUT2GFILTER RC(PI) 100 OHM/12PF SMD |
5,499 |
|
- |
- | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 8 | 160MHz (Cutoff) | -25dB @ 800MHz ~ 5GHz | 100 | - | R = 100Ohms, C = 12pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.138" L x 0.047" W (3.50mm x 1.20mm) | 0.022" (0.55mm) |
|
|
NUF2114MNT1GFILTER RC(PI) 9 OHM/60PF ESD SMD |
11,670 |
|
- |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | RC (Pi) | 2 | 50MHz (Cutoff) | -30dB @ 900MHz ~ 3GHz | 9 | - | R = 9Ohms, C = 60pF | Yes | -40°C ~ 85°C | Audio | - | - | - | Surface Mount | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
EMIF02-02OABRYFILTER 2LINE 6QFN |
3,022 |
|
- |
IPAD™ | 6-VDFN | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 2 | - | - | - | - | - | Yes | -40°C ~ 125°C | - | - | - | - | Surface Mount | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.035" (0.90mm) |
|
|
P409QM473M275AH470FILTER RC 47 OHM/47NF TH |
245 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.047µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) |
