FPGAs (Field Programmable Gate Array)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of LABs/CLBs | Number of Logic Elements/Cells | Total RAM Bits | Number of I/O | Number of Gates | Voltage - Supply | Mounting Type | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XC6SLX16-2CSG225CIC FPGA 160 I/O 225CSBGA |
162 |
|
Datasheet | Spartan®-6 LX | 225-LFBGA, CSPBGA | Tray | Active | Not Verified | 1139 | 14579 | 589824 | 160 | - | 1.14V ~ 1.26V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 225-CSPBGA (13x13) |
|
XC7A35T-1CSG324CIC FPGA 210 I/O 324CSBGA |
2,838 |
|
Datasheet | Artix-7 | 324-LFBGA, CSPBGA | Tray | Active | Not Verified | 2600 | 33280 | 1843200 | 210 | - | 0.95V ~ 1.05V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 324-CSPBGA (15x15) |
|
EP4CE22E22C8NIC FPGA 79 I/O 144EQFP |
131 |
|
Datasheet | Cyclone® IV E | 144-LQFP Exposed Pad | Tray | Active | Not Verified | 1395 | 22320 | 608256 | 79 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 144-EQFP (20x20) |
|
EP2C8Q208C8NIC FPGA 138 I/O 208QFP |
256 |
|
Datasheet | Cyclone® II | 208-BFQFP | Tray | Active | Not Verified | 516 | 8256 | 165888 | 138 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 208-PQFP (28x28) |
|
XC7A35T-1FTG256IIC FPGA 170 I/O 256FTBGA |
116 |
|
Datasheet | Artix-7 | 256-LBGA | Tray | Active | Not Verified | 2600 | 33280 | 1843200 | 170 | - | 0.95V ~ 1.05V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 256-FTBGA (17x17) |
|
|
XC7A35T-2FTG256CIC FPGA 170 I/O 256FTBGA |
90 |
|
Datasheet | Artix-7 | 256-LBGA | Tray | Active | Not Verified | 2600 | 33280 | 1843200 | 170 | - | 0.95V ~ 1.05V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 256-FTBGA (17x17) |
|

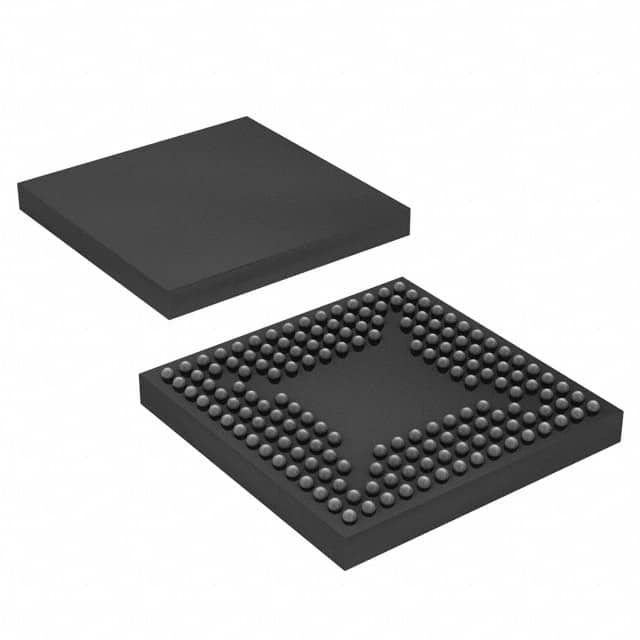

EP4CE15M8I7NIC FPGA 89 I/O 164MBGA |
180 |
|
Datasheet | Cyclone® IV E | 164-TFBGA | Tray | Active | Not Verified | 963 | 15408 | 516096 | 89 | - | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 164-MBGA (8x8) |
|
10M16SCU169I7GIC FPGA 130 I/O 169UBGA |
359 |
|
Datasheet | MAX® 10 | 169-LFBGA | Tray | Active | Not Verified | 1000 | 16000 | 562176 | 130 | - | 2.85V ~ 3.465V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 169-UBGA (11x11) |
|
|
EP3C10E144C8NIC FPGA 94 I/O 144EQFP |
44 |
|
Datasheet | Cyclone® III | 144-LQFP Exposed Pad | Tray | Active | Not Verified | 645 | 10320 | 423936 | 94 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 144-EQFP (20x20) |
|
XC7S25-2CSGA225IIC FPGA 150 I/O 225CSGA |
750 |
|
Datasheet | Spartan®-7 | 225-LFBGA, CSPBGA | Tray | Active | Not Verified | 1825 | 23360 | 1658880 | 150 | - | 0.95V ~ 1.05V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 225-CSGA (13x13) |
|
XC7S25-2CSGA324IIC FPGA 150 I/O 324CSGA |
98 |
|
Datasheet | Spartan®-7 | 324-LFBGA, CSPBGA | Tray | Active | Not Verified | 1825 | 23360 | 1658880 | 150 | - | 0.95V ~ 1.05V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 324-CSGA (15x15) |
|
XC6SLX16-2CPG196IIC FPGA 106 I/O 196CSBGA |
776 |
|
Datasheet | Spartan®-6 LX | 196-TFBGA, CSBGA | Tray | Active | Not Verified | 1139 | 14579 | 589824 | 106 | - | 1.14V ~ 1.26V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 196-CSPBGA (8x8) |
|
XC7A15T-1CSG325CIC FPGA 150 I/O 324CSBGA |
528 |
|
Datasheet | Artix-7 | 324-LFBGA, CSPBGA | Tray | Active | Not Verified | 1300 | 16640 | 921600 | 150 | - | 0.95V ~ 1.05V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 324-CSPBGA (15x15) |
|
EP4CGX15BF14I7NIC FPGA 72 I/O 169FBGA |
53 |
|
Datasheet | Cyclone® IV GX | 169-LBGA | Tray | Active | Not Verified | 900 | 14400 | 552960 | 72 | - | 1.16V ~ 1.24V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 169-FBGA (14x14) |
|

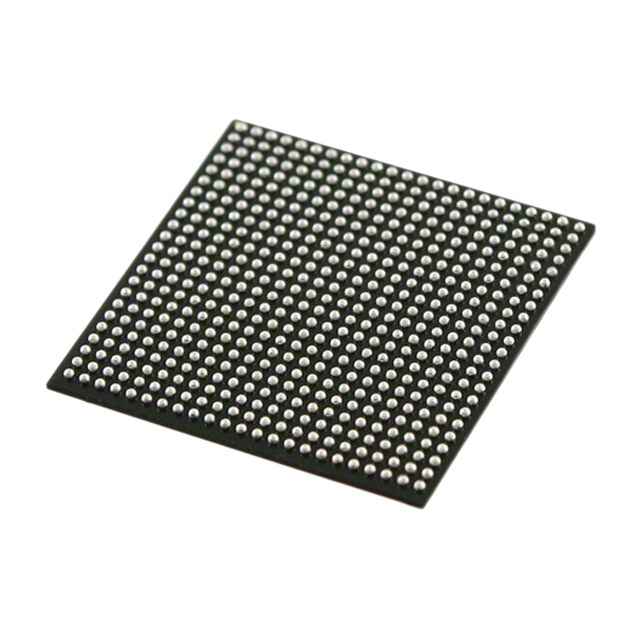

5CEBA2F23C8NIC FPGA 224 I/O 484FBGA |
128 |
|
Datasheet | Cyclone® V E | 484-BGA | Tray | Active | Not Verified | 9434 | 25000 | 2002944 | 224 | - | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 484-FBGA (23x23) |
|
EP4CE15U14I7NIC FPGA 165 I/O 256UBGA |
115 |
|
Datasheet | Cyclone® IV E | 256-LFBGA | Tray | Active | Not Verified | 963 | 15408 | 516096 | 165 | - | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 256-UBGA (14x14) |
|
5CEBA2U15C8NIC FPGA 176 I/O 324UBGA |
379 |
|
Datasheet | Cyclone® V E | 324-LFBGA | Tray | Active | Not Verified | 9434 | 25000 | 2002944 | 176 | - | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 324-UBGA (15x15) |
|
|
10M16SAE144C8GIC FPGA 101 I/O 144EQFP |
176 |
|
Datasheet | MAX® 10 | 144-LQFP Exposed Pad | Tray | Active | Not Verified | 1000 | 16000 | 562176 | 101 | - | 2.85V ~ 3.465V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 144-EQFP (20x20) |
|
10M16SCU169I7PIC FPGA 130 I/O 169UBGA |
106 |
|
Datasheet | MAX® 10 | 169-LFBGA | Tray | Active | Not Verified | 1000 | 16000 | 562176 | 130 | - | 2.85V ~ 3.465V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 169-UBGA (11x11) |
|
|
XC6SLX16-2CSG225IIC FPGA 160 I/O 225CSBGA |
276 |
|
Datasheet | Spartan®-6 LX | 225-LFBGA, CSPBGA | Tray | Active | Not Verified | 1139 | 14579 | 589824 | 160 | - | 1.14V ~ 1.26V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 225-CSPBGA (13x13) |
