FPGAs (Field Programmable Gate Array)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of LABs/CLBs | Number of Logic Elements/Cells | Total RAM Bits | Number of I/O | Number of Gates | Voltage - Supply | Mounting Type | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

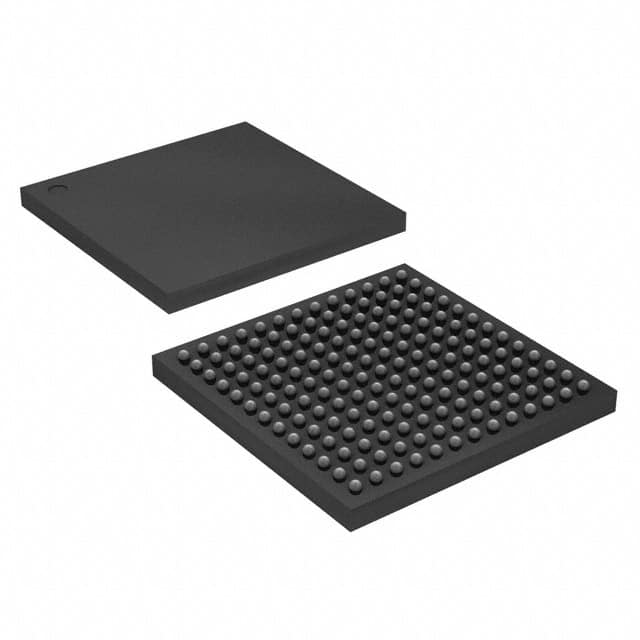

EP4CGX15BF14C8NIC FPGA 72 I/O 169FBGA |
1,433 |
|
Datasheet | Cyclone® IV GX | 169-LBGA | Tray | Active | Not Verified | 900 | 14400 | 552960 | 72 | - | 1.16V ~ 1.24V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 169-FBGA (14x14) |
|
10M08SCM153I7GIC FPGA 112 I/O 153MBGA |
792 |
|
Datasheet | MAX® 10 | 153-VFBGA | Tray | Active | Not Verified | 500 | 8000 | 387072 | 112 | - | 2.85V ~ 3.465V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 153-MBGA (8x8) |
|
AGLN250V2-CSG81IIC FPGA 60 I/O 81CSP |
533 |
|
Datasheet | IGLOO nano | 81-WFBGA, CSBGA | Tray | Active | Not Verified | - | 6144 | 36864 | 60 | 250000 | 1.14V ~ 1.575V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 81-CSP (5x5) |
|
M2GL010-VFG256IIC FPGA 138 I/O 256FBGA |
1,091 |
|
Datasheet | IGLOO2 | 256-LFBGA | Tray | Active | Not Verified | - | 12084 | 933888 | 138 | - | 1.14V ~ 2.625V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 256-FPBGA (14x14) |
.jpg)
|
M2GL010-1TQG144IIC FPGA 84 I/O 144TQFP |
110 |
|
Datasheet | IGLOO2 | 144-LQFP | Tray | Active | Not Verified | - | 12084 | 933888 | 84 | - | 1.14V ~ 2.625V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 144-TQFP (20x20) |
|
XC6SLX9-2TQG144IIC FPGA 102 I/O 144TQFP |
1,590 |
|
Datasheet | Spartan®-6 LX | 144-LQFP | Tray | Active | Not Verified | 715 | 9152 | 589824 | 102 | - | 1.14V ~ 1.26V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 144-TQFP (20x20) |
|
XC6SLX9-2FTG256CIC FPGA 186 I/O 256FTBGA |
270 |
|
Datasheet | Spartan®-6 LX | 256-LBGA | Tray | Active | Not Verified | 715 | 9152 | 589824 | 186 | - | 1.14V ~ 1.26V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 256-FTBGA (17x17) |
|
XC6SLX9-2CSG225CIC FPGA 160 I/O 225CSBGA |
182 |
|
Datasheet | Spartan®-6 LX | 225-LFBGA, CSPBGA | Tray | Active | Not Verified | 715 | 9152 | 589824 | 160 | - | 1.14V ~ 1.26V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 225-CSPBGA (13x13) |
|
EP2C5F256C8NIC FPGA 158 I/O 256FBGA |
670 |
|
Datasheet | Cyclone® II | 256-LBGA | Tray | Active | Not Verified | 288 | 4608 | 119808 | 158 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 256-FBGA (17x17) |
|
EP2C5T144I8NIC FPGA 89 I/O 144TQFP |
114 |
|
Datasheet | Cyclone® II | 144-LQFP | Tray | Active | Not Verified | 288 | 4608 | 119808 | 89 | - | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 144-TQFP (20x20) |
|
|
EP4CE10F17C8NIC FPGA 179 I/O 256FBGA |
107 |
|
Datasheet | Cyclone® IV E | 256-LBGA | Tray | Active | Not Verified | 645 | 10320 | 423936 | 179 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 256-FBGA (17x17) |
|
10CL025YE144I7GIC FPGA 76 I/O 144EQFP |
173 |
|
Datasheet | Cyclone® 10 LP | 144-LQFP Exposed Pad | Tray | Active | Not Verified | 1539 | 24624 | 608256 | 76 | - | 1.2V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 144-EQFP (20x20) |
|
|
M2GL010T-VFG256IIC FPGA 138 I/O 256FBGA |
185 |
|
Datasheet | IGLOO2 | 256-LFBGA | Tray | Active | Not Verified | - | 12084 | 933888 | 138 | - | 1.14V ~ 2.625V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 256-FPBGA (14x14) |
|

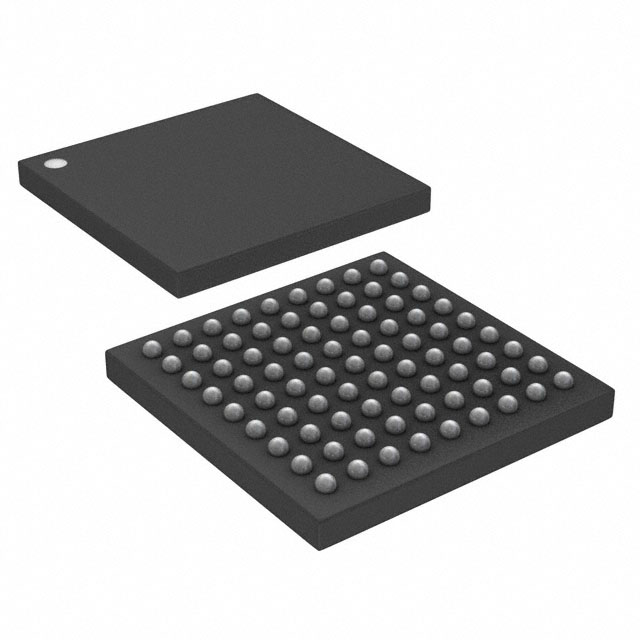

10M08DCV81I7GIC FPGA 56 I/O 81WLCSP |
1,481 |
|
Datasheet | MAX® 10 | 81-UFBGA, WLCSP | Tape & Reel (TR) | Active | Not Verified | 500 | 8000 | 387072 | 56 | - | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 81-VBGA, WLCSP (4.5x4.4) |
|
M2GL010-VFG400IIC FPGA 195 I/O 400VFBGA |
945 |
|
Datasheet | IGLOO2 | 400-LFBGA | Tray | Active | Not Verified | - | 12084 | 933888 | 195 | - | 1.14V ~ 2.625V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 400-VFBGA (17x17) |
|
|
EP3C5F256C8NIC FPGA 182 I/O 256FBGA |
444 |
|
Datasheet | Cyclone® III | 256-LBGA | Tray | Active | Not Verified | 321 | 5136 | 423936 | 182 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 256-FBGA (17x17) |
|
|
XC6SLX9-3TQG144IIC FPGA 102 I/O 144TQFP |
917 |
|
Datasheet | Spartan®-6 LX | 144-LQFP | Tray | Active | Not Verified | 715 | 9152 | 589824 | 102 | - | 1.14V ~ 1.26V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 144-TQFP (20x20) |
|
|
EP4CE15F17C8NIC FPGA 165 I/O 256FBGA |
657 |
|
Datasheet | Cyclone® IV E | 256-LBGA | Tray | Active | Not Verified | 963 | 15408 | 516096 | 165 | - | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 256-FBGA (17x17) |
|
|
10M08SAE144I7GIC FPGA 101 I/O 144EQFP |
170 |
|
Datasheet | MAX® 10 | 144-LQFP Exposed Pad | Tray | Active | Not Verified | 500 | 8000 | 387072 | 101 | - | 2.85V ~ 3.465V | Surface Mount | -40°C ~ 100°C (TJ) | - | - | 144-EQFP (20x20) |
|
XC7S25-2FTGB196CIC FPGA 100 I/O 196CSBGA |
535 |
|
Datasheet | Spartan®-7 | 196-LBGA, CSPBGA | Tray | Active | Not Verified | 1825 | 23360 | 1658880 | 100 | - | 0.95V ~ 1.05V | Surface Mount | 0°C ~ 85°C (TJ) | - | - | 196-CSBGA (15x15) |
