Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JLLS225.XFUSE CRTRDGE 225A 600VAC/300VDC |
1 |
|
Datasheet | POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 225A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 1.594" Dia x 1.720" L (40.50mm x 43.70mm) | - | - |
|
0JLS175.XFUSE CRTRDGE 175A 600VAC CYLINDR |
1 |
|
Datasheet | POWR-GARD® JLS | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 175A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | J | CE, CSA, QPL, UL | - | 200kA | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
L15S450.TFUSE CRTRDGE 450A 150VAC/100VDC |
1 |
|
Datasheet | POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 450A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
|
L15S500.VFUSE CRTRDGE 500A 150VAC/100VDC |
1 |
|
Datasheet | POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 500A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
|
SPFJ090.XFUSE CARTRIDGE 90A 1KVDC CYLINDR |
1 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 90A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, UL | - | 20kA | 1.500" Dia x 3.012" L (38.10mm x 76.50mm) | - | - |
|
|
SPFJ160.XXLFUSE CARTRIDGE 160A 600VAC/1KVDC |
1 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 160A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.012" L (38.10mm x 76.50mm) | - | - |
|
0JTD200.XFUSE CRTRDGE 200A 600VAC/500VDC |
1 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 200A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
0JTD150.XFUSE CRTRDGE 150A 600VAC/500VDC |
1 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 150A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
|
L75QS250.X750VDC HIGHSPEED SEMICONDUCTOR F |
8,223 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 2.000" Dia x 2.844" L (50.80mm x 72.24mm) | - | - |
|
|
FLNR600.XXIDFUSE CRTRDGE 600A 250VAC/125VDC |
1 |
|
Datasheet | POWR-GARD® FLNR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 600A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 2.594" Dia x 10.374" L (65.90mm x 263.50mm) | - | - |
|
|
PSR031FL0630ZFUSE SQUARE 630A 700VAC/600VDC |
3,328 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 630A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
|
|
FLSR300.XFUSE CRTRDGE 300A 600VAC/300VDC |
1 |
|
Datasheet | POWR-GARD® FLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 300A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 2.594" Dia x 11.626" L (65.90mm x 295.30mm) | - | - |
|
PSR071FS0350ZFUSE SQUARE 350A 1.3KVAC/1KVDC |
1 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 350A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|

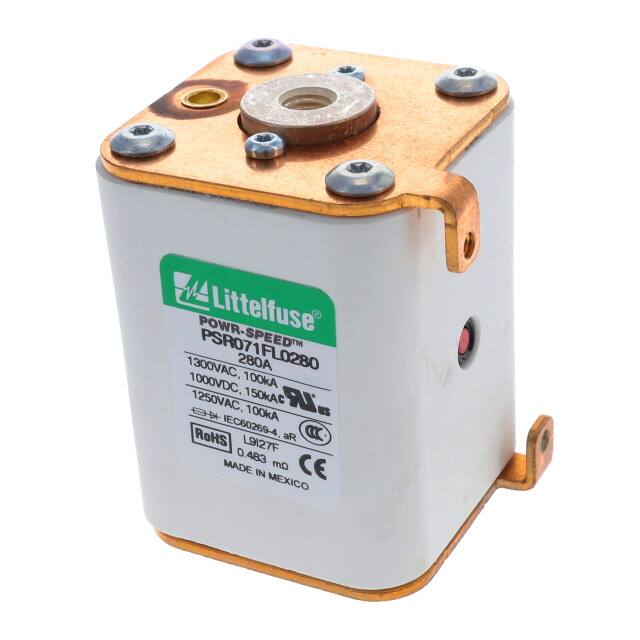

PSR071FL0280ZPOWR-SPEED SQB SIZE 71 FLUSH MET |
1 |
|
Datasheet | POWR-SPEED® PSR | Rectangular, Blade | Box | Active | Bolt Mount | Square | 280A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, IEC, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|
PSR032UL0900XFUSE SQUARE 900A 700VAC/600VDC |
7,219 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 900A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|
|
FLSR600.XFUSE CRTRDGE 600A 600VAC/300VDC |
1 |
|
Datasheet | POWR-GARD® FLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 600A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 3.094" Dia x 13.374" L (78.60mm x 339.70mm) | - | - |
|
|
PSR072FL0630ZFUSE SQUARE 630A 1.3KVAC/1KVDC |
1 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 630A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
|
|
0JTD350.XFUSE CRTRDGE 350A 600VAC/500VDC |
1 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 350A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 2.000" Dia x 3.374" L (50.80mm x 85.70mm) | - | - |
|
|
0JTD225.XFUSE CRTRDGE 225A 600VAC/500VDC |
1 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 225A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 2.000" Dia x 3.374" L (50.80mm x 85.70mm) | - | - |
|
|
0JTD250.XFUSE CRTRDGE 250A 600VAC/500VDC |
1 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 250A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 2.000" Dia x 3.374" L (50.80mm x 85.70mm) | - | - |
