Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCMR045.TFUSE CARTRIDGE 45A 600VAC/250VDC |
9,547 |
|
Datasheet | POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 45A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CD | CE, CSA, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0JLS060.TFUSE CARTRIDGE 60A 600VAC |
6,799 |
|
Datasheet | POWR-GARD® JLS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 60A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | J | CE, CSA, QPL, UL | - | 200kA | 1.063" Dia x 2.374" L (27.00mm x 60.30mm) | - | - |
|
JLLS125.XFUSE CRTRDGE 125A 600VAC/300VDC |
1 |
|
Datasheet | POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 1.063" Dia x 1.657" L (27.00mm x 42.10mm) | - | - |
|
|
FLNR200.XFUSE CRTRDGE 200A 250VAC/125VDC |
1 |
|
Datasheet | POWR-GARD® FLNR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 200A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.594" Dia x 7.126" L (40.50mm x 181.00mm) | - | - |
|
L15S090.TFUSE CARTRIDGE 90A 150VAC/100VDC |
1 |
|
Datasheet | POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 90A | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|

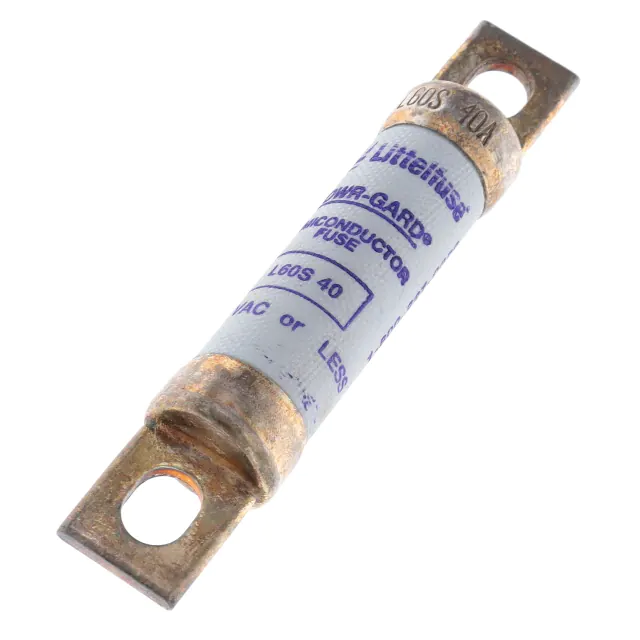

L60S040.TFUSE CRTRDGE 40A 600VAC CYLINDR |
4,652 |
|
Datasheet | POWR-GARD® L60S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 40A | 600 VAC | - | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.811" Dia x 2.780" L (20.60mm x 70.60mm) | - | - |
|
|
0JLS100.VFUSE CRTRDGE 100A 600VAC CYLINDR |
3,590 |
|
Datasheet | POWR-GARD® JLS | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 100A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | J | CE, CSA, QPL, UL | - | 200kA | 1.000" Dia x 2.626" L (25.40mm x 66.70mm) | - | - |
|
L70S050.TFUSE CARTRIDGE 50A 700VAC/650VDC |
1 |
|
Datasheet | POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.000" Dia x 2.874" L (25.40mm x 73.00mm) | - | - |
|
|
L70S035.TFUSE CARTRIDGE 35A 700VAC/650VDC |
1 |
|
Datasheet | POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 35A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.000" Dia x 2.874" L (25.40mm x 73.00mm) | - | - |
|
L25S175.VFUSE CARTRIDGE 175A 250VAC/VDC |
1 |
|
Datasheet | POWR-GARD® L25S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 175A | 250 VAC | 250 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.220" Dia x 1.626" L (31.00mm x 41.30mm) | - | - |
|
|
0JLS080.VFUSE CRTRDGE 80A 600VAC CYLINDR |
1 |
|
Datasheet | POWR-GARD® JLS | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 80A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | J | CE, CSA, QPL, UL | - | 200kA | 1.000" Dia x 2.626" L (25.40mm x 66.70mm) | - | - |
|
L50S125.VFUSE CRTRDGE 125A 500VAC/450VDC |
1 |
|
Datasheet | POWR-GARD® L50S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.220" Dia x 2.126" L (31.00mm x 54.00mm) | - | - |
|
L75QS070.V750VDC HIGHSPEED SEMICONDUCTOR F |
2,039 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.000" Dia x 2.875" L (25.40mm x 73.03mm) | - | - |
|
|
FLSR225.XFUSE CRTRDGE 225A 600VAC/300VDC |
1 |
|
Datasheet | POWR-GARD® FLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 225A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 2.594" Dia x 11.626" L (65.90mm x 295.30mm) | - | - |
|
|
FLSR150.XFUSE CRTRDGE 150A 600VAC/300VDC |
1 |
|
Datasheet | POWR-GARD® FLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 150A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.843" Dia x 9.626" L (46.80mm x 244.50mm) | - | - |
|
|
JLLN250.XXPFUSE CRTRDGE 250A 300VAC/125VDC |
2,240 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 250A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL, UR | - | 200kA AC, 20kA DC | 1.311" Dia x 2.752" L (33.30mm x 69.90mm) | - | - |
|
|
JLLN450.XFUSE CRTRDGE 450A 300VAC/125VDC |
1 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 450A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.594" Dia x 0.874" L (40.50mm x 22.20mm) | - | - |
|
|
FLNR400.XFUSE CRTRDGE 400A 250VAC/125VDC |
1 |
|
Datasheet | POWR-GARD® FLNR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 400A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 2.094" Dia x 8.626" L (53.19mm x 219.10mm) | - | - |
|
|
L75QS200.V750VDC HIGHSPEED SEMICONDUCTOR F |
6,224 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.218" Dia x 2.875" L (30.94mm x 73.03mm) | - | - |
|
L75QS150.V750VDC HIGHSPEED SEMICONDUCTOR F |
2,253 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.218" Dia x 2.875" L (30.94mm x 73.03mm) | - | - |
