Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA110URD71LLI0630FUSE SQUARE 630A 1.1KVAC RECT |
6,093 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 630A | 1.1 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 2.008" W x 2.206" H (72.50mm x 51.00mm x 56.03mm) | - | - |
|
JLLS500.XFUSE CRTRDGE 500A 600VAC/300VDC |
2,783 |
|
Datasheet | POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 500A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 2.063" Dia x 1.764" L (52.40mm x 44.80mm) | - | - |
|
PSR033UL0500XFUSE SQUARE 500A 700VAC/600VDC |
6,212 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 500A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
|
PSR033DL0550XFUSE SQUARE 550A 700VAC/600VDC |
6,654 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 550A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR033UL0550XFUSE SQUARE 550A 700VAC/600VDC |
4,633 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 550A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR033DL0450XFUSE SQUARE 450A 700VAC/600VDC |
9,205 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 450A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR033DL0500XFUSE SQUARE 500A 700VAC/600VDC |
6,127 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 500A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR033UL0450XFUSE SQUARE 450A 700VAC/600VDC |
9,019 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 450A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
|
PSX1XLDB0250XFUSE SEMI 1500VDC 1XL SIZE 250A |
8,713 |
|
Datasheet | POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 250A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
|
PSX1XLDB0280XFUSE SEMI 1500VDC 1XL SIZE 280A |
6,511 |
|
Datasheet | POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 280A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
PSX1XLUB0250XFUSE SEMI 1500VDC 1XL SIZE 250A |
4,417 |
|
Datasheet | POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 250A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
|
PSX1XLUB0280XFUSE SEMI 1500VDC 1XL SIZE 280A |
8,553 |
|
Datasheet | POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 280A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 4.988" L x 2.028" W x 2.264" H (126.70mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR033FL1100ZFUSE SQUARE 1.1KA 700VAC/600VDC |
2,363 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.1kA | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR033FL1400ZFUSE SQUARE 1.4KA 700VAC/500VDC |
4,152 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.4kA | 700 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|

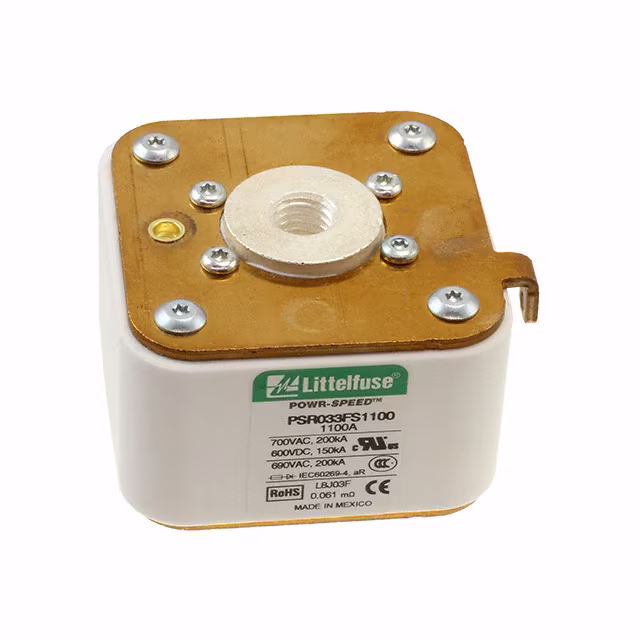

PSR033FS1100ZFUSE SQUARE 1.1KA 700VAC/600VDC |
3,671 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.1kA | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|

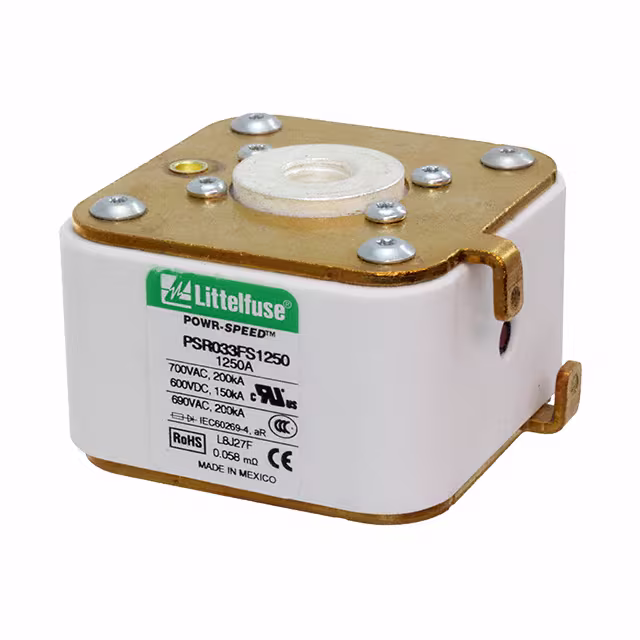

PSR033FS1250ZFUSE SQUARE 1.25KA 700VAC/600VDC |
3,900 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.25kA | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|

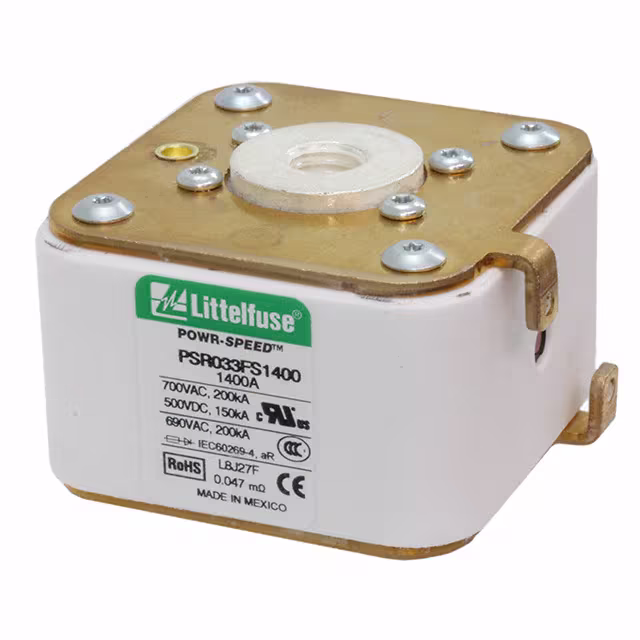

PSR033FS1400ZFUSE SQUARE 1.4KA 700VAC/500VDC |
6,486 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.4kA | 700 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR033FL1000ZFUSE SQUARE 1KA 700VAC/600VDC |
2,733 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 1kA | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR073FL0800ZFUSE POWR-SPEED METRIC SZ73 800A |
7,206 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 800A | - | - | Fast Blow | Semiconductors | Indicating | - | - | -55°C ~ 125°C | - | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) | - | - |
|
|
FLSR450.XFUSE CRTRDGE 450A 600VAC/300VDC |
3,411 |
|
Datasheet | POWR-GARD® FLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 450A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 3.094" Dia x 13.374" L (78.60mm x 339.70mm) | - | - |
