Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR072DL0250XFUSE SQUARE 250A 1.3KVAC/1KVDC |
9,369 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|
PSR072UL0250XFUSE SQUARE 250A 1.3KVAC/1KVDC |
5,639 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|
|
PSR072DL0315XFUSE SQUARE 315A 1.3KVAC/1KVDC |
6,090 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 315A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|
PSR072UL0315XFUSE SQUARE 315A 1.3KVAC/1KVDC |
3,534 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 315A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|
|
PSR072UL0400XFUSE SQUARE 400A 1.3KVAC/1KVDC |
5,400 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 400A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.362" W x 2.598" H (72.20mm x 60.00mm x 66.00mm) | - | - |
|
PSR072FS0550ZFUSE SQUARE 550A 1.3KVAC/1KVDC |
9,432 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 550A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
|
PSR032DL0800XFUSE SQUARE 800A 700VAC/600VDC |
2,887 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 800A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|
PSR032UL0800XFUSE SQUARE 800A 700VAC/600VDC |
8,142 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 800A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|
|
PSR032DL0900XFUSE SQUARE 900A 700VAC/600VDC |
6,051 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 900A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.362" W x 2.598" H (48.20mm x 60.00mm x 66.00mm) | - | - |
|
|
LA070URD33LI1100FUSE SQUARE 1.1KA 700VAC RECT |
6,450 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 1.1kA | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.933" W x 3.169" H (47.60mm x 74.50mm x 80.50mm) | - | - |
|
|
LA070URD33LI1400FUSE SQUARE 1.4KA 700VAC RECT |
9,863 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 1.4kA | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.933" W x 3.169" H (47.60mm x 74.50mm x 80.50mm) | - | - |
|
|
LA070URD33LI1000FUSE SQUARE 1KA 700VAC RECT |
3,967 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 1kA | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.933" W x 3.169" H (47.60mm x 74.50mm x 80.50mm) | - | - |
|
|
LA070URD33LI1250FUSE SQUARE 1.25KA 700VAC RECT |
4,245 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 1.25kA | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.933" W x 3.169" H (47.60mm x 74.50mm x 80.50mm) | - | - |
|
|
PSR072FL0500ZFUSE SQUARE 500A 1.3KVAC/1KVDC |
7,325 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 500A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
|

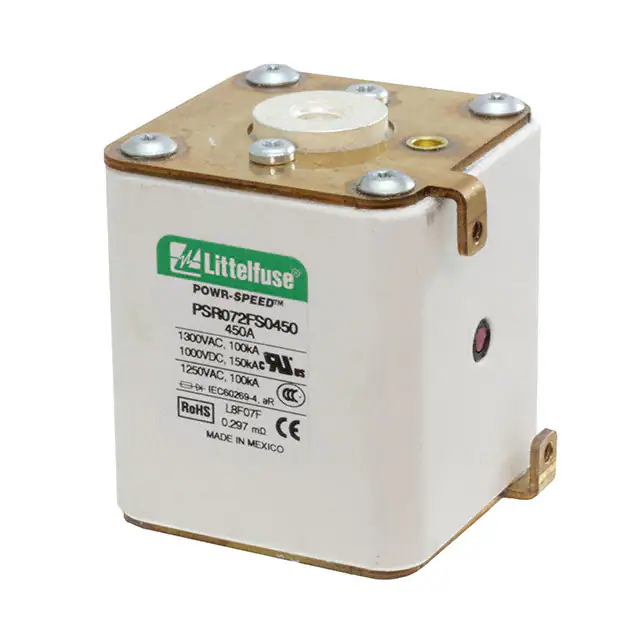

PSR072FS0450ZFUSE SQUARE 450A 1.3KVAC/1KVDC |
5,890 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 450A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
|
|
PSR072FL0450ZFUSE SQUARE 450A 1.3KVAC/1KVDC |
5,474 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 450A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
|
PSR033DS0500XFUSE SQUARE 500A 700VAC/600VDC |
4,529 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 500A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR033DS0630XFUSE SQUARE 630A 700VAC/600VDC |
9,602 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 630A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
|
PSR033US0630XFUSE SQUARE 630A 700VAC/600VDC |
8,422 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 630A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR033US0450XFUSE SQUARE 450A 700VAC/600VDC |
3,306 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 450A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.937" L x 2.894" W x 3.130" H (49.20mm x 73.50mm x 79.50mm) | - | - |
