Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR071UL0280ZFUSE SQUARE 280A 1.3KVAC/1KVDC |
6,802 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 280A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.028" W x 2.264" H (72.20mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR071UL0200ZFUSE SQUARE 200A 1.3KVAC/1KVDC |
6,643 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 200A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.028" W x 2.264" H (72.20mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR071UL0400ZFUSE SQUARE 400A 1.3KVAC/1KVDC |
2,808 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 400A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.028" W x 2.264" H (72.20mm x 51.50mm x 57.50mm) | - | - |
|
PSR071DL0400ZFUSE SQUARE 400A 1.3KVAC/1KVDC |
8,114 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 400A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.028" W x 2.264" H (72.20mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR071DL0200ZFUSE SQUARE 200A 1.3KVAC/1KVDC |
6,146 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 200A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.843" L x 2.028" W x 2.264" H (72.20mm x 51.50mm x 57.50mm) | - | - |
|
PSR031DS0800ZFUSE SQUARE 800A 700VAC/600VDC |
9,500 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 800A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
|
PSR031US0700ZFUSE SQUARE 700A 700VAC/600VDC |
8,339 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 700A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR031DS0700ZFUSE SQUARE 700A 700VAC/600VDC |
3,195 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 700A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR031US0800ZFUSE SQUARE 800A 700VAC/600VDC |
4,957 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 800A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
|
LA130URD71LLI0315FUSE SQUARE 315A 1.3KVAC RECT |
9,138 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 315A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 2.008" W x 2.206" H (72.50mm x 51.00mm x 56.03mm) | - | - |
|
|
LA130URD71LLI0400FUSE SQUARE 400A 1.3KVAC RECT |
4,084 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 400A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 2.008" W x 2.206" H (72.50mm x 51.00mm x 56.03mm) | - | - |
|
|
LA130URD71LLI0280FUSE SQUARE 280A 1.3KVAC RECT |
7,009 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 280A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 2.008" W x 2.206" H (72.50mm x 51.00mm x 56.03mm) | - | - |
|
|
LA130URD71LLI0350FUSE SQUARE 350A 1.3KVAC RECT |
4,791 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 350A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 2.008" W x 2.206" H (72.50mm x 51.00mm x 56.03mm) | - | - |
|
L70QS225.XFUSE CARTRIDGE 225A 700VAC/VDC |
3,710 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 225A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 2.844" L (50.80mm x 72.24mm) | - | - |
|
|
0RLN225.XFUSE CRTRDGE 225A 250VAC CYLINDR |
4,404 |
|
Datasheet | POWR-GARD® RLN | Cylindrical, Blade Terminals | Bulk | Obsolete | Requires Holder | Cartridge | 225A | 250 VAC | - | Fast Blow | Electrical, Industrial | - | H | CE, CSA, UL | - | 10kA | 2.094" Dia x 4.878" L (53.19mm x 123.90mm) | - | - |
|

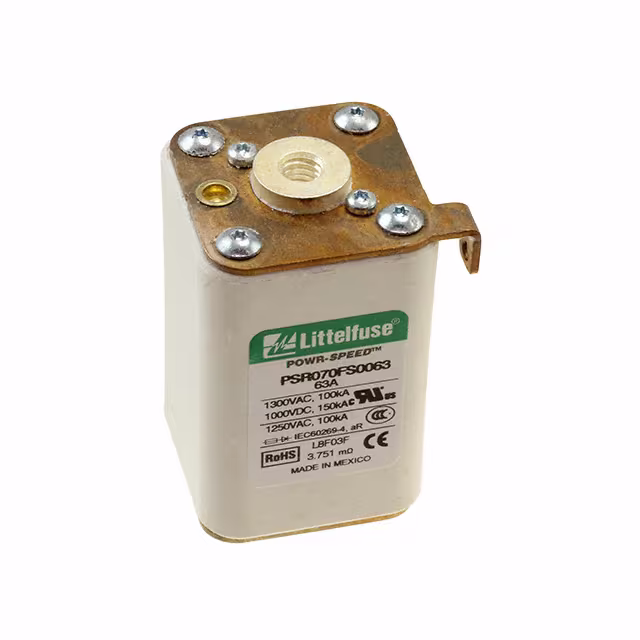

PSR070FS0063ZFUSE SQUARE 63A 1.3KVAC/1KVDC |
6,895 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 63A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
|

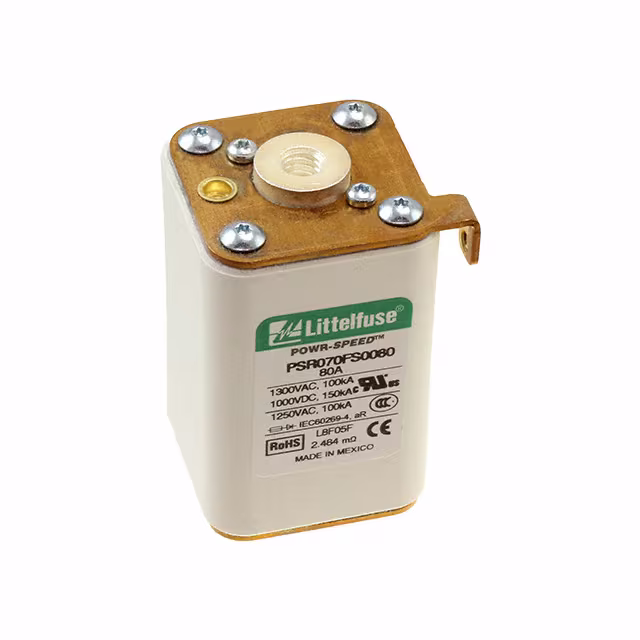

PSR070FS0080ZFUSE SQUARE 80A 1.3KVAC/1KVDC |
2,466 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 80A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
|
L70S300.VFUSE CRTRDGE 300A 700VAC/650VDC |
9,100 |
|
Datasheet | POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 300A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 2.000" Dia x 2.843" L (50.80mm x 72.20mm) | - | - |
|
|
L70S350.VFUSE CRTRDGE 350A 700VAC/650VDC |
8,873 |
|
Datasheet | POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 2.000" Dia x 2.843" L (50.80mm x 72.20mm) | - | - |
|
|
L70S225.VFUSE CRTRDGE 225A 700VAC/650VDC |
7,066 |
|
Datasheet | POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 225A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 2.000" Dia x 2.843" L (50.80mm x 72.20mm) | - | - |
