Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR070DL0080ZFUSE SQUARE 80A 1.3KVAC/1KVDC |
5,751 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 80A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.811" L x 1.693" W x 1.929" H (71.40mm x 43.00mm x 49.00mm) | - | - |
|
PSR070UL0050ZFUSE SQUARE 50A 1.3KVAC/1KVDC |
2,856 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 50A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.811" L x 1.693" W x 1.929" H (71.40mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR070DL0050ZFUSE SQUARE 50A 1.3KVAC/1KVDC |
3,029 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 50A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.811" L x 1.693" W x 1.929" H (71.40mm x 43.00mm x 49.00mm) | - | - |
|
0JTD110.XFUSE CRTRDGE 110A 600VAC/500VDC |
9,906 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 110A | 600 VAC | 500 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.500" Dia x 3.000" L (38.10mm x 76.20mm) | - | - |
|
|
LA130URD70LI0315FUSE SQUARE 315A 1.3KVAC RECT |
5,429 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 315A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 1.575" W x 1.773" H (72.50mm x 40.00mm x 45.03mm) | - | - |
|
|
LA130URD71LLI0200FUSE SQUARE 200A 1.3KVAC RECT |
6,041 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 200A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 2.008" W x 2.206" H (72.50mm x 51.00mm x 56.03mm) | - | - |
|
|
LA130URD71LLI0160FUSE SQUARE 160A 1.3KVAC RECT |
3,922 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 160A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 2.008" W x 2.206" H (72.50mm x 51.00mm x 56.03mm) | - | - |
|
|
LA130URD71LLI0250FUSE SQUARE 250A 1.3KVAC RECT |
7,485 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 250A | 1.3 kVAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 100kA | 2.854" L x 2.008" W x 2.206" H (72.50mm x 51.00mm x 56.03mm) | - | - |
|
|
LA070URD31KI0800FUSE SQUARE 800A 700VAC RECT |
7,662 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 800A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.008" W x 2.205" H (47.60mm x 51.00mm x 56.00mm) | - | - |
|
|
LA070URD31KI0700FUSE SQUARE 700A 700VAC RECT |
5,855 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 700A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.008" W x 2.205" H (47.60mm x 51.00mm x 56.00mm) | - | - |
|
|
ESR1XLUB0125XPOWR-SPEED SQB ESR 1500VDC 1XL B |
5,531 |
|
Datasheet | ESR | Rectangular, Blade | Box | Active | Bolt Mount | Square | 125A | - | 1.5 kVDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UKCA | -55°C ~ 125°C | 175kA | 5.028" L x 2.028" W x 2.008" H (127.70mm x 51.50mm x 51.00mm) | - | - |
|
|
ESR1XLDB0125XPOWR-SPEED SQB ESR 1500VDC 1XL D |
7,239 |
|
Datasheet | ESR | Rectangular, Blade | Box | Active | Bolt Mount | Square | 125A | - | 1.5 kVDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UKCA | -55°C ~ 125°C | 175kA | 5.028" L x 2.028" W x 2.008" H (127.70mm x 51.50mm x 51.00mm) | - | - |
|
|
LA070URD32KI0400FUSE SQUARE 400A 700VAC RECT |
6,327 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 400A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.362" W x 2.598" H (47.60mm x 60.00mm x 66.00mm) | - | - |
|
|
LA070URD32KI0550FUSE SQUARE 550A 700VAC RECT |
6,188 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 550A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.362" W x 2.598" H (47.60mm x 60.00mm x 66.00mm) | - | - |
|
|
LA070URD32KI0450FUSE SQUARE 450A 700VAC RECT |
9,963 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 450A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.362" W x 2.598" H (47.60mm x 60.00mm x 66.00mm) | - | - |
|
|
LA070URD32KI0500FUSE SQUARE 500A 700VAC RECT |
5,248 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 500A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.362" W x 2.598" H (47.60mm x 60.00mm x 66.00mm) | - | - |
|
|
LA070URD32KI0630FUSE SQUARE 630A 700VAC RECT |
2,355 |
|
Datasheet | POWR-GARD® LA | Rectangular, Blade | Box | Obsolete | Bolt Mount | Square | 630A | 700 VAC | - | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA | 1.874" L x 2.362" W x 2.598" H (47.60mm x 60.00mm x 66.00mm) | - | - |
|

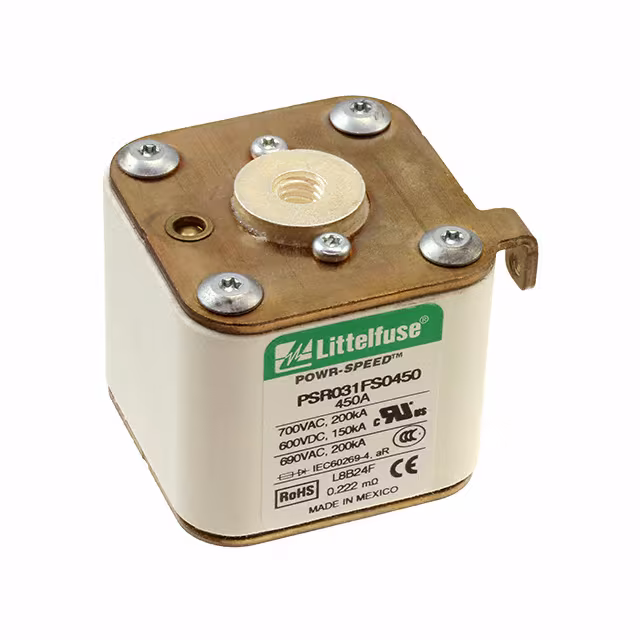

PSR031FS0450ZFUSE SQUARE 450A 700VAC/600VDC |
6,975 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 450A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
|

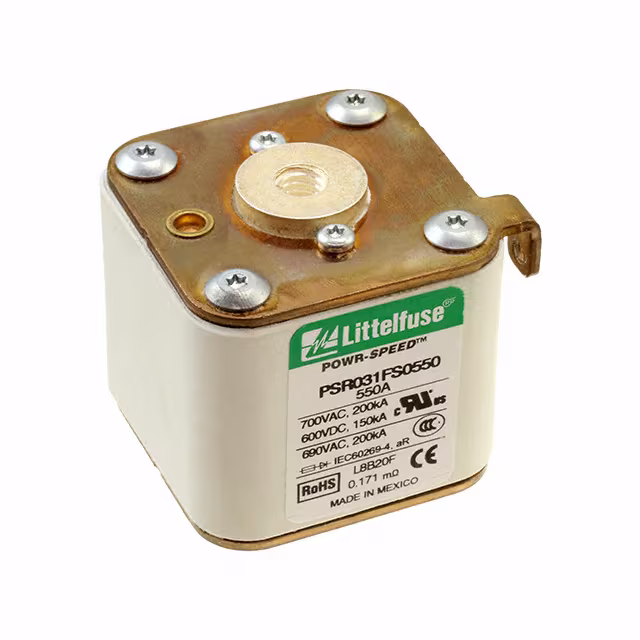

PSR031FS0550ZFUSE SQUARE 550A 700VAC/600VDC |
4,548 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 550A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
|
|
PSR031FS0630ZFUSE SQUARE 630A 700VAC/600VDC |
7,817 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 630A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 2.028" W x 2.264" H (50.00mm x 51.50mm x 57.50mm) | - | - |
