Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD5390BSTZ-5IC DAC 14BIT V-OUT 52LQFP |
222 |
|
Datasheet | - | 52-LQFP | Tray | Active | Not Verified | 14 | 16 | 8µs | Voltage - Buffered | No | I2C, SPI, DSP | External, Internal | 5V | 2.7V ~ 5.5V | - | String DAC | -40°C ~ 85°C | 52-LQFP (10x10) | Surface Mount | - | - |
|
AD5390BCPZ-5IC DAC 14BIT V-OUT 64LFCSP |
57 |
|
Datasheet | - | 64-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 14 | 16 | 8µs | Voltage - Buffered | No | I2C, SPI, DSP | External, Internal | 5V | 2.7V ~ 5.5V | ±3 (Max), -1/+2 (Max) | String DAC | -40°C ~ 85°C | 64-LFCSP-VQ (9x9) | Surface Mount | - | - |
|
DAC3482IZAYRIC DAC 16BIT A-OUT 196NFBGA |
1,300 |
|
Datasheet | - | 196-LFBGA | Tape & Reel (TR) | Active | Not Verified | 16 | 2 | 10ns (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.14V ~ 3.46V | 1.14V ~ 1.32V | ±4, ±2 | Current Source | -40°C ~ 85°C | 196-NFBGA (12x12) | Surface Mount | - | - |
|

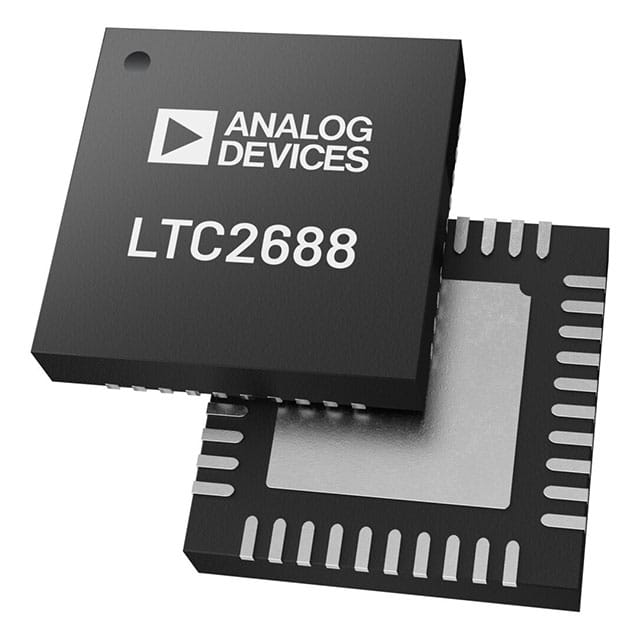

LTC2688CUJ-16#PBFIC DAC 16BIT V-OUT 40QFN |
32 |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 16 | 28µs | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 5.5V | ±3 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | 40-QFN (6x6) | Surface Mount | - | - |
|
LTC1596-1ACSW#PBFIC DAC 16BIT A-OUT 16SOIC |
185 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C | 16-SO | Surface Mount | - | - |
|
LTC2704CGW-16#PBFIC DAC 16BIT V-OUT 44SSOP |
140 |
|
Datasheet | SoftSpan™ | 44-BSOP (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 4 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | - | 0°C ~ 70°C | 44-SSOP | Surface Mount | - | - |
|
LTC2668CUJ-16#PBFIC DAC 16BIT V-OUT 40QFN |
333 |
|
Datasheet | SoftSpan™ | 40-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 16 | 20.5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±2.2, ±0.2 | - | 0°C ~ 70°C | 40-QFN (6x6) | Surface Mount | - | - |
|
AD3552RBCPZ16IC DAC 16BIT V-OUT 32LFCSP |
69 |
|
Datasheet | - | 32-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 2 | 100ns | Voltage - Buffered | No | SPI | External, Internal | 4.75V ~ 5.25V | 1.71V ~ 1.89V | ±2, ±1 | Current Steering | -40°C ~ 105°C | 32-LFCSP (5x5) | Surface Mount | - | - |
|
AD5780BCPZIC DAC 18BIT V-OUT 24LFCSP |
12 |
|
Datasheet | - | 24-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 18 | 1 | 3.5µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 7.5V ~ 16.5V, -2.5V ~ 16.5V | 2.7V ~ 5.5V | ±1 (Max), ±0.75 (Max) | R-2R | -40°C ~ 125°C | 24-LFCSP-VQ (4x5) | Surface Mount | - | - |
|
LTC1597-1ACG#PBFIC DAC 16BIT A-OUT 28SSOP |
1,813 |
|
Datasheet | - | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C | 28-SSOP | Surface Mount | - | - |
|
|
LTC1597ACG#PBFIC DAC 16BIT A-OUT 28SSOP |
282 |
|
Datasheet | - | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | Parallel | External | 5V | 5V | ±0.35, ±0.2 | R-2R | 0°C ~ 70°C | 28-SSOP | Surface Mount | - | - |
|
AD5764CSUZIC DAC 16BIT V-OUT 32TQFP |
265 |
|
Datasheet | iCMOS® | 32-TQFP | Tray | Active | Not Verified | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | ±11.4V ~ 16.5V | 2.7V ~ 5.25V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 32-TQFP (7x7) | Surface Mount | - | - |
|
|
AD5360BSTZIC DAC 16BIT V-OUT 52LQFP |
597 |
|
Datasheet | - | 52-LQFP | Tray | Active | Not Verified | 16 | 16 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 8V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±4 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 52-LQFP (10x10) | Surface Mount | - | - |
|
|
AD5764SSUZ-EP-RL7IC DAC 16BIT V-OUT 32TQFP |
501 |
|
Datasheet | iCMOS® | 32-TQFP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | ±11.4V ~ 16.5V | 2.7V ~ 5.25V | ±2 (Max), ±1 (Max) | R-2R | -55°C ~ 125°C | 32-TQFP (7x7) | Surface Mount | - | - |
|
LTC1595AIS8#PBFIC DAC 16BIT A-OUT 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | SPI | External | 5V | 5V | ±0.35, ±0.2 | R-2R | -40°C ~ 85°C | 8-SO | Surface Mount | - | - |
|
AD669BRZIC DAC 16BIT V-OUT 28SOIC |
123 |
|
Datasheet | DACPORT® | 28-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 16 | 1 | 13µs | Voltage - Buffered | No | Parallel | External, Internal | ±13.5V ~ 16.5V | 5V | ±2 (Max), ±2 (Max) | R-2R | -40°C ~ 85°C | 28-SOIC | Surface Mount | - | - |
|
AD5766BCPZ-RL7IC DAC 16BIT V-OUT 40LFCSP |
644 |
|
Datasheet | - | 40-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 16 | 12µs | Voltage - Unbuffered | No | SPI, DSP | External | 2.97V ~ 16V | - | ±16, ±1 | String DAC | -40°C ~ 105°C | 40-LFCSP-WQ (6x6) | Surface Mount | - | - |
|
AD7237ABRZIC DAC 12BIT V-OUT 24SOIC |
81 |
|
Datasheet | DACPORT® | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 2 | 8µs | Voltage - Buffered | No | Parallel | External, Internal | ±10.8V ~ 16.5V | - | ±0.5 (Max), ±0.9 (Max) | R-2R | -40°C ~ 85°C | 24-SOIC | Surface Mount | - | - |
|
|
AD5764RCSUZIC DAC 16BIT V-OUT 32TQFP |
469 |
|
Datasheet | iCMOS® | 32-TQFP | Tray | Active | Not Verified | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 11.4V ~ 16.5V | 2.7V ~ 5.25V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 32-TQFP (7x7) | Surface Mount | - | - |
|
AD9779ABSVZIC DAC 16BIT A-OUT 100TQFP |
64 |
|
Datasheet | - | 100-TQFP Exposed Pad | Tray | Active | Not Verified | 16 | 2 | - | Current - Unbuffered | Yes | Parallel | Internal | 3.13V ~ 3.47V | 1.7V ~ 2.05V, 3.13V ~ 3.47V | ±6, ±2.1 | Oversampling Interpolating DAC | -40°C ~ 85°C | 100-TQFP-EP (14x14) | Surface Mount | - | - |
