Digital to Analog Converters (DAC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Number of Bits | Number of D/A Converters | Settling Time | Output Type | Differential Output | Data Interface | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | INL/DNL (LSB) | Architecture | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAC7714UBIC DAC 12BIT V-OUT 16SOIC |
450 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 4 | 10µs | Voltage - Buffered | No | SPI | External | ±14.25V ~ 15.75V | 14.25V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
AD5066BRUZIC DAC 16BIT V-OUT 16TSSOP |
184 |
|
Datasheet | nanoDAC® | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 16 | 4 | 15µs | Voltage - Unbuffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.2 | R-2R | -40°C ~ 125°C | 16-TSSOP | Surface Mount | - | - |
|
AD5754RBREZ-REEL7IC DAC 16BIT V-OUT 24TSSOP |
702 |
|
Datasheet | iCMOS® | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 12µs | Voltage - Buffered | No | SPI, DSP | External, Internal | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±16 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 24-TSSOP-EP | Surface Mount | - | - |
|
|
AD5754RBREZIC DAC 16BIT V-OUT 24TSSOP |
282 |
|
Datasheet | iCMOS® | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Not Verified | 16 | 4 | 12µs | Voltage - Buffered | No | SPI, DSP | External, Internal | ±4.5V ~ 16.5V | 2.7V ~ 5.5V | ±16 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C | 24-TSSOP-EP | Surface Mount | - | - |
|
AD5541LRZIC DAC 16BIT V-OUT 8SOIC |
201 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Voltage - Unbuffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | 0°C ~ 70°C | 8-SOIC | Surface Mount | - | - |
|
|
AD5545CRUZIC DAC 16BIT A-OUT 16TSSOP |
3,685 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 16 | 2 | 500ns (Typ) | Current - Unbuffered | No | SPI | External | 5V | 5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 16-TSSOP | Surface Mount | - | - |
|
|
LTC1595CCS8#PBFIC DAC 16BIT A-OUT 8SOIC |
172 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 1 | 1µs (Typ) | Current - Unbuffered | No | SPI | External | 5V | 5V | ±4 (Max), ±2 (Max) | R-2R | 0°C ~ 70°C | 8-SO | Surface Mount | - | - |
|
|
AD5669RBRUZ-2IC DAC 16BIT V-OUT 16TSSOP |
91 |
|
Datasheet | denseDAC | 16-TSSOP (0.173", 4.40mm Width) | Tube | Active | Not Verified | 16 | 8 | 7µs | Voltage - Buffered | No | I2C | External, Internal | 5V | 5V | ±8, ±1 (Max) | String DAC | -40°C ~ 105°C | 16-TSSOP | Surface Mount | - | - |
|
LTC2600CGN#TRPBFIC DAC 16BIT V-OUT 16SSOP |
2,232 |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | 16 | 8 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±12, ±1 (Max) | - | 0°C ~ 70°C | 16-SSOP | Surface Mount | - | - |
|
|
LTC2600CGN#PBFIC DAC 16BIT V-OUT 16SSOP |
488 |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 8 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±12, ±1 (Max) | - | 0°C ~ 70°C | 16-SSOP | Surface Mount | - | - |
|
|
DAC7715UBIC DAC 12BIT V-OUT 16SOIC |
304 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | 12 | 4 | 10µs | Voltage - Buffered | No | SPI | External | ±14.25V ~ 15.75V | 14.25V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | 16-SOIC | Surface Mount | - | - |
|
LTC2662CUH-16#PBFIC DAC 16BIT A-OUT 32QFN |
165 |
|
Datasheet | SoftSpan™ | 32-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 5 | 8.7ms (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.85V ~ 5.5V | 1.71V ~ 5.5V | ±12, ±0.2 | Current Source | 0°C ~ 70°C | 32-QFN (5x5) | Surface Mount | - | - |
|
|
LTC2664CUH-16#PBFIC DAC 16BIT V-OUT 32QFN |
601 |
|
Datasheet | SoftSpan™ | 32-WFQFN Exposed Pad | Tube | Active | Not Verified | 16 | 4 | 20µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | ±4.5V ~ 15.75V | 1.71V ~ 5.5V | ±2.2, ±0.35 | - | 0°C ~ 70°C | 32-QFN (5x5) | Surface Mount | - | - |
|
LTC1650IS#PBFIC DAC 16BIT V-OUT 16SOIC |
141 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | 16 | 1 | 4µs (Typ) | Voltage - Buffered | No | SPI | External | ±5V | 5V | ±4, ±0.15 | - | -40°C ~ 85°C | 16-SO | Surface Mount | - | - |
|
LTC1668IG#PBFIC DAC 16BIT A-OUT 28SSOP |
497 |
|
Datasheet | - | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 16 | 1 | 20ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | ±5V | - | ±8 (Max), ±1 | Current Steering | -40°C ~ 85°C | 28-SSOP | Surface Mount | - | - |
|
AD9746BCPZIC DAC 14BIT A-OUT 72LFCSP |
1 |
|
Datasheet | - | 72-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 14 | 2 | - | Current - Unbuffered | Yes | Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±1, ±0.5 | Quad-Switch | -40°C ~ 85°C | 72-LFCSP-VQ (10x10) | Surface Mount | - | - |
|
|
LTC2756BCG#PBFIC DAC 18BIT A-OUT 28SSOP |
50 |
|
Datasheet | SoftSpan™ | 28-SSOP (0.209", 5.30mm Width) | Tube | Active | Not Verified | 18 | 1 | 2.1µs (Typ) | Current - Unbuffered | Yes | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2 (Max), ±1 (Max) | Multiplying DAC | 0°C ~ 70°C | 28-SSOP | Surface Mount | - | - |
|
AD5755-1ACPZ-REEL7IC DAC 16BIT A-OUT 64LFCSP |
1,035 |
|
Datasheet | - | 64-VFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Not Verified | 16 | 4 | 18µs | Current - Unbuffered | No | SPI, DSP | External, Internal | 9V ~ 33V, -10.8V ~ 26.4V | 2.7V ~ 5.5V | ±0.006, ±11 | R-2R | -40°C ~ 105°C | 64-LFCSP-VQ (9x9) | Surface Mount | - | - |
|
|
AD5755-1ACPZIC DAC 16BIT A-OUT 64LFCSP |
491 |
|
Datasheet | - | 64-VFQFN Exposed Pad, CSP | Tray | Active | Not Verified | 16 | 4 | 18µs | Current - Unbuffered | No | SPI, DSP | External, Internal | 9V ~ 33V, -10.8V ~ 26.4V | 2.7V ~ 5.5V | ±0.006, ±11 | R-2R | -40°C ~ 105°C | 64-LFCSP-VQ (9x9) | Surface Mount | - | - |
|

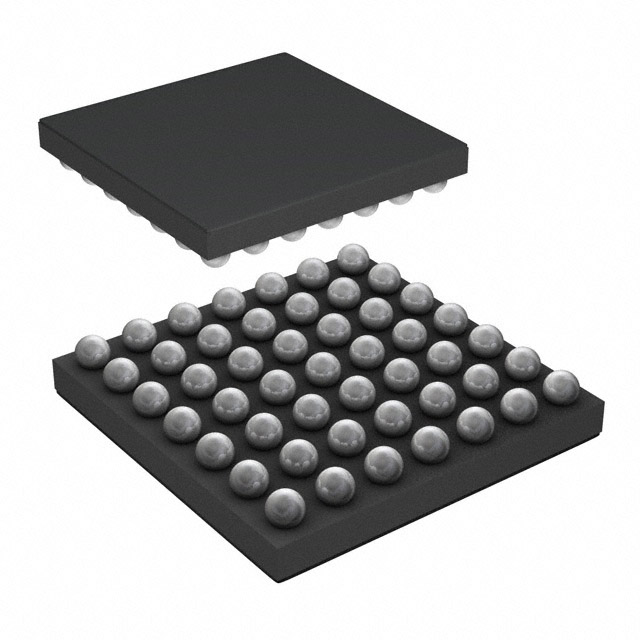

AD5770RBCBZ-RL7IC DAC 14BIT A-OUT 49WLCSP |
2,316 |
|
Datasheet | AD5770R | 49-WFBGA, WLCSP | Tape & Reel (TR) | Active | Not Verified | 14 | 6 | 13µs (Typ) | Current - Unbuffered | No | Serial, SPI | External, Internal | 2.9V ~ 5.5V | 2.9V ~ 5.5V | ±6.5 (Max), ±1 (Max) | Current Steering | -40°C ~ 105°C | 49-WLCSP (4.04x4.04) | Surface Mount | - | - |
