Analog to Digital Converters (ADC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Bits | Sampling Rate (Per Second) | Number of Inputs | Input Type | Data Interface | Configuration | Ratio - S/H:ADC | Number of A/D Converters | Architecture | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | Features | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADS42LB69IRGC25IC ADC 16BIT PIPELINED 64VQFN |
0 |
|
Datasheet | - | 64-VFQFN Exposed Pad | Tube | Obsolete | 16 | 250M | 2 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 2 | Pipelined | Internal | 3.15V ~ 3.45V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 64-VQFN (9x9) | Surface Mount | - | - |
|
AD9253TCPZR7-125EPIC ADC 14BIT PIPELINED 48LFCSP |
0 |
|
Datasheet | - | 48-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | 14 | 125M | 4 | Differential | LVDS - Serial | S/H-ADC | 1:1 | 4 | Pipelined | Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -55°C ~ 125°C (TA) | 48-LFCSP (7x7) | Surface Mount | - | - |
|
ADC08B3000CIYB/NOPBIC ADC 8BIT FOLD INTERP 128HLQFP |
0 |
|
Datasheet | - | 128-LQFP Exposed Pad | Tray | Active | 8 | 3G | 1 | Differential | SPI, Parallel | S/H-ADC | 2:2 | 1 | Folding Interpolating | Internal | 1.8V ~ 2V | 1.8V ~ 2V | - | -40°C ~ 85°C | 128-HLQFP (20x20) | Surface Mount | - | - |
|
ADS5407IZAYRIC ADC 12BIT PIPELINED 196NFBGA |
0 |
|
Datasheet | - | 196-LFBGA | Tape & Reel (TR) | Active | 12 | 500M | 2 | Differential | LVDS - Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V, 3.15V ~ 3.45V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 196-NFBGA (12x12) | Surface Mount | - | - |
|
ADC12QJ1600AAVIC ANALOG TO DIGITAL CONVERTER |
0 |
|
Datasheet | - | 144-FBGA, FCBGA | Tray | Active | 12 | 1.6G | 4 | Differential | JESD204B/C | ADC | 0:4 | 4 | Pipelined, SAR | - | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V | - | -40°C ~ 85°C | 144-FCBGA (10x10) | Surface Mount | - | - |
|
ADADC72JD16-BIT SAR ADC, WORD ACCESS |
1 |
|
Datasheet | - | 32-CDIP (0.900", 22.86mm) | Bulk | Active | 16 | - | 1 | - | Parallel | ADC | 1:1 | 1 | SAR | External | - | - | - | -40°C ~ 85°C | 32-BBDIP-H | Through Hole | - | - |
|
|
ADC12DJ1600AAVQ1IC ADC 12BIT FLSH/PIPE 144FCBGA |
0 |
|
Datasheet | - | 144-FBGA, FCBGA | Tray | Active | 12 | 1.6G | 2 | Differential, Single Ended | SPI | ADC | 0:4 | 4 | Flash, Pipelined, SAR | External, Internal | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V | Temperature Sensor | -40°C ~ 125°C | 144-FCBGA (10x10) | Surface Mount | Automotive | AEC-Q100 |
|
AD9650USVZR7-105EPIC ADC 16BIT PIPELINED 80TQFP |
0 |
|
Datasheet | - | 80-TQFP Exposed Pad | Tape & Reel (TR) | Active | 16 | 105M | 2 | Differential | LVDS - Parallel, Parallel | S/H-ADC | 1:1 | 2 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 80-TQFP-EP (12x12) | Surface Mount | - | - |
|
ADC3669IRTDANALOG TO DIGITAL CONVERTER |
0 |
|
- |
ADC366x | 64-VFQFN Exposed Pad | Tray | Active | 16 | 500M | 2 | Differential | LVDS - Serial, SPI | ADC | 0:2 | 2 | Pipelined | External | 1.15V ~ 1.225V, 1.75V ~ 1.85V | 1.15V ~ 1.225V, 1.75V ~ 1.85V | - | -40°C ~ 105°C | 64-VQFN (9x9) | Surface Mount | - | - |
|
ADC16DX370RMERIC ADC 56WQFN |
0 |
|
Datasheet | - | 56-WFQFN Exposed Pad | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 56-WQFN (8x8) | Surface Mount | - | - |
|
|
ADC3669IRTDT16-BIT, TWO-CHANNEL, 500-MSPS AD |
0 |
|
- |
- | 64-VFQFN Exposed Pad | Tape & Reel (TR) | Active | 16 | 500M | 2 | Differential | LVDS - Serial, SPI | ADC | 0:2 | 2 | Pipelined | External | 1.15V ~ 1.225V, 1.75V ~ 1.85V | 1.15V ~ 1.225V, 1.75V ~ 1.85V | - | -40°C ~ 105°C | 64-VQFN (9x9) | Surface Mount | - | - |
|
DDC1128ZKLTIC ADC 20BIT SIG-DELTA 192NFBGA |
0 |
|
Datasheet | - | 192-LFBGA | Tape & Reel (TR) | Active | 20 | 6.25k | 128 | Single Ended | SPI | DSI-ADC | 2:1 | 1 | Sigma-Delta | External | 5V | 2.7V ~ 3.6V | Simultaneous Sampling | 0°C ~ 70°C | 192-NFBGA (9x9) | Surface Mount | - | - |
|
|
DDC3256ZWX256CHANNEL, 20-KSPS CURRENT-INPU |
0 |
|
- |
- | 336-LFBGA | Tray | Active | 24 | 20k | 256 | Single Ended | LVDS - Serial, SPI | MUX-ADC | 0:2 | 2 | - | External | 1.85V | 1.85V | - | 0°C ~ 70°C | 336-NFBGA (17.2x13.2) | Surface Mount | - | - |
|
AD9681BBCZRL7-125IC ADC 14BIT PIPELINED 144CSPBGA |
0 |
|
Datasheet | - | 144-LFBGA, CSPBGA | Tape & Reel (TR) | Active | 14 | 125M | 8 | Differential | LVDS - Serial | S/H-ADC | 1:1 | 4 | Pipelined | External, Internal | 1.7V ~ 1.9V | 1.7V ~ 1.9V | Simultaneous Sampling | -40°C ~ 85°C | 144-CSPBGA (10x10) | Surface Mount | - | - |
|
|
ADC12QJ1600AAVQ1IC ADC 12BIT FLSH/PIPE 144FCBGA |
0 |
|
Datasheet | - | 144-FBGA, FCBGA | Tray | Active | 12 | 1.6G | 4 | Differential, Single Ended | SPI | ADC | 0:4 | 4 | Flash, Pipelined, SAR | External, Internal | 1.05V ~ 1.15V, 1.8V ~ 2V | 1.05V ~ 1.15V | Temperature Sensor | -40°C ~ 125°C | 144-FCBGA (10x10) | Surface Mount | Automotive | AEC-Q100 |
|
ADADC80-12IC ADC 12BIT SAR 32CDIP |
0 |
|
Datasheet | - | 32-CDIP (0.910", 23.12mm) | Tube | Obsolete | 12 | - | 2 | Single Ended | Parallel | ADC | - | 1 | SAR | Internal | ±15V | 5V | - | -25°C ~ 85°C | 32-SBDIP-H | Through Hole | - | - |
|
AD9002TD8-BIT FLASH ADC, 8-BIT ACCESS |
1 |
|
Datasheet | AD9002 | 28-CDIP (0.600", 15.24mm) | Bulk | Active | 8 | 150M | 8 | - | Parallel | ADC | 0:1 | 1 | - | External | -5.46V ~ -4.94V | -5.46V ~ -4.94V | - | -55°C ~ 125°C | 28-CDIP | Through Hole | - | - |
|
AD7875CQIC ADC 12BIT SAR 24CDIP |
0 |
|
Datasheet | - | 24-CDIP (0.300", 7.62mm) | Tube | Active | 12 | 100k | 1 | Single Ended | SPI, Parallel | S/H-ADC | 1:1 | 1 | SAR | Internal | ±5V | ±5V | - | -40°C ~ 85°C | 24-CDIP | Through Hole | - | - |
|
ADC08D1000CIYBIC ADC 8BIT FOLD INTERP 128HLQFP |
0 |
|
Datasheet | - | 128-LQFP Exposed Pad | Tray | Obsolete | 8 | 1G | 2 | Differential | LVDS - Parallel | MUX-S/H-ADC | 1:1 | 2 | Folding Interpolating | Internal | 1.8V ~ 2V | 1.8V ~ 2V | Simultaneous Sampling | -40°C ~ 85°C | 128-HLQFP (20x20) | Surface Mount | - | - |
|

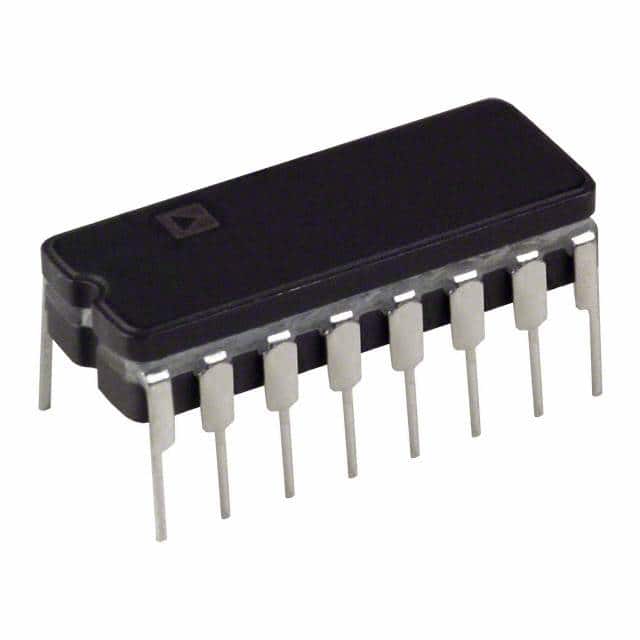

AD677TD/883BIC ADC 16BIT SRL 100KSPS 16CDIP |
0 |
|
Datasheet | - | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
