Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

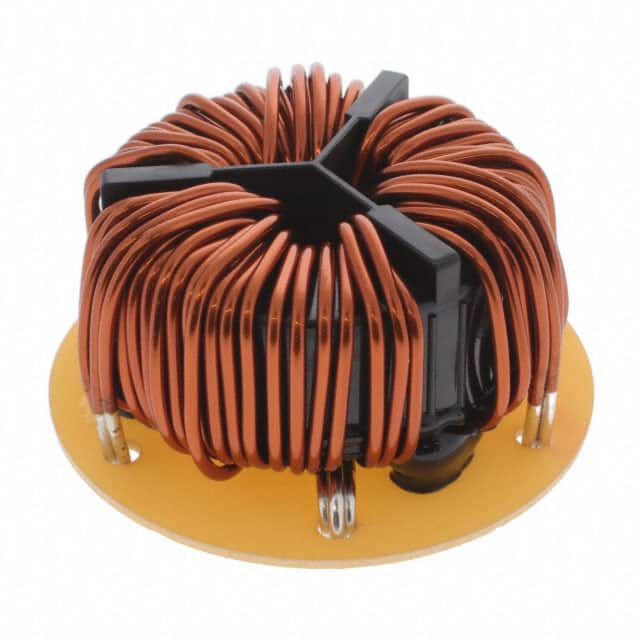

SCF47-400-S1R7C028JHCMC 2.8MH 40A 3LN TH |
19 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 2.8 mH @ 10 kHz | 40A | 1.85mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

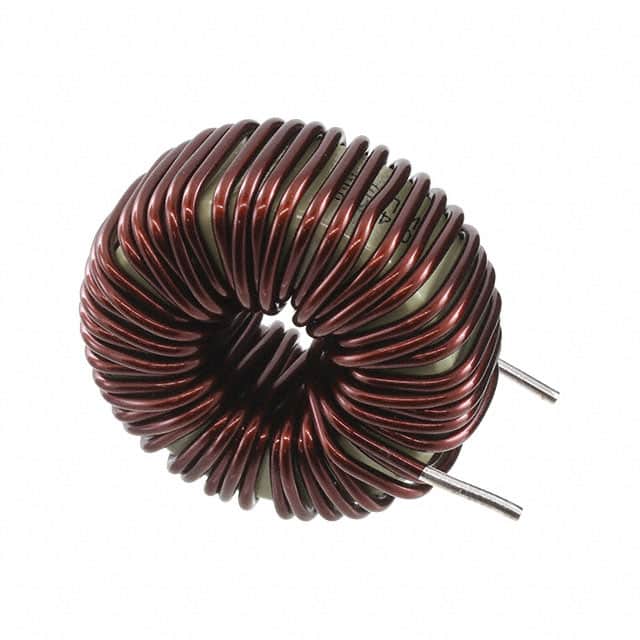

PHBC24W-2R1A0311VCMC 311UH 15A 2LN TH |
45 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 311 µH @ 100 kHz | 15A | 20.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SS21V-220017CMC 1.7MH 2.2A 2LN TH |
70 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.7 mH @ 1 kHz | 2.2A | 130mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN10P-800NMC 297.0UH 2.5A 0.1900 OHM TH |
94 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 297 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SCR-060-0R9A040JCMC 4MH 6A 2LN TH |
47 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 6A | - | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN16P-400JNMC 108.0UH 8.0A 0.0270 OHM TH |
100 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 108 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN13-500CMC 143UH 6A 2LN TH |
96 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 143 µH @ 100 kHz | 6A | 36mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN20P-240NMC 40.0UH 20.0A 0.0100 OHM TH |
90 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 40 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SN16-400CMC 108UH 8A 2LN TH |
100 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 108 µH @ 100 kHz | 8A | 27mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
HHBC20-1R7A0097VCMC 97UH 12A 2LN TH |
64 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 97 µH @ 100 kHz | 12A | 16mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HHBC20-1R7A0152VCMC 152UH 12A 2LN TH |
39 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 152 µH @ 100 kHz | 12A | 20.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HHBC20-1R7A0054VCMC 54UH 12A 2LN TH |
64 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 54 µH @ 100 kHz | 12A | 11.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

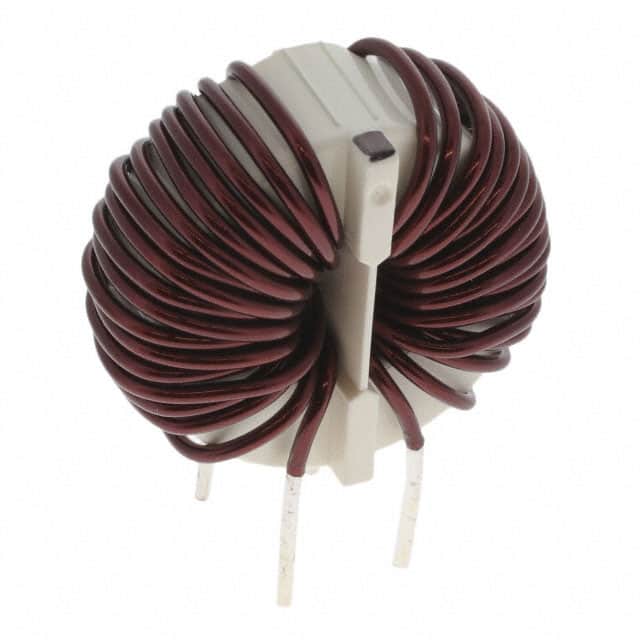

SC-08-E1000CMC 10MH 8A 2LN TH |
52 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 8A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SCR39XV-150-S1R7A011JHINDUCTOR CMC 1.6MH 15A |
95 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 2 | - | 1.6 mH @ 100 kHz | 15A | 5.45mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-140-S1R6A014JHINDUCTOR CMC 2.6MH 14A |
94 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 14A | 7.87mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-130-1R7A022JHINDUCTOR CMC 6.4MH 13A |
96 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6.4 mH @ 100 kHz | 13A | 11.1mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-190-2R1A014JHINDUCTOR CMC 2.6MH 19A |
96 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.6 mH @ 100 kHz | 19A | 5.03mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-220-2R3A012JHINDUCTOR CMC 1.9MH 22A |
96 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.9 mH @ 100 kHz | 22A | 3.58mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-320-2R0B006JHINDUCTOR CMC 0.47MH 32A |
96 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 470 µH @ 100 kHz | 32A | 1.13mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR39XV-400-2R2B005JHINDUCTOR CMC 0.33MH 40A |
92 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 40A | 0.78mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
