| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR29XV-180-1R8A013JVCMC 1.04MH 18A 2LN TH AEC-Q200 |
50 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.04 mH @ 100 kHz | 18A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-090-1R4A022JHCMC 2.95MH 9A 2LN TH AEC-Q200 |
40 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.95 mH @ 100 kHz | 9A | 10.6mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

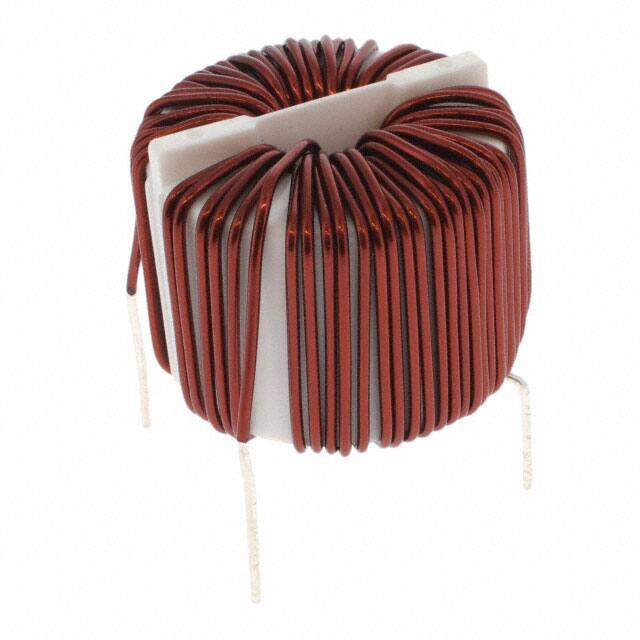

SC-09-1400CMC 14MH 9A 2LN TH |
27 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 9A | 53mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
SCR29XV-110-1R5A019JHCMC 2.2MH 11A 2LN TH AEC-Q200 |
40 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 100 kHz | 11A | 8.07mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT29XV-050-1R0A044JVCMC 6.47MH 5A 2LN TH AEC-Q200 |
59 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.47 mH @ 100 kHz | 5A | 40.3mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT29XV-270-2R3A006JVCMC 120UH 27A 2LN TH AEC-Q200 |
39 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 120 µH @ 100 kHz | 27A | 1.19mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

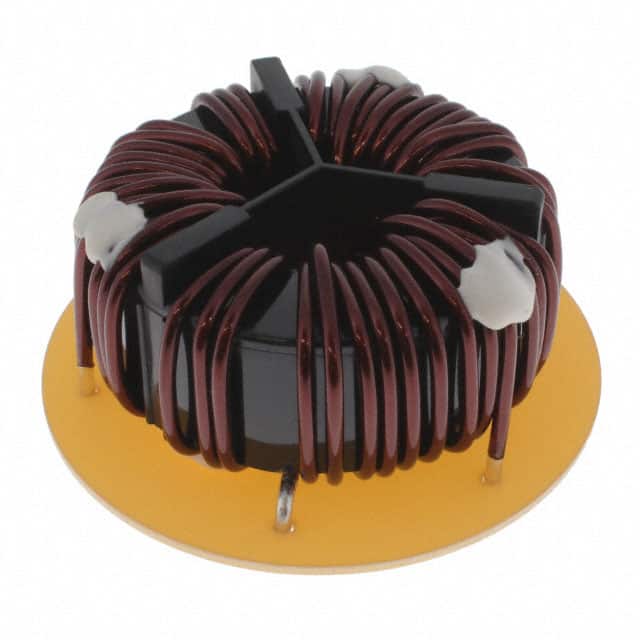

SCR47-140-S1R8A025JH-PCMC 2.5MH 14A 3LN TH |
7 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 2.5 mH @ 10 kHz | 14A | 9mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
SCF29XV-090-1R4A022JVCMC 5.3MH 9A 2LN TH AEC-Q200 |
95 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.3 mH @ 100 kHz | 9A | 10.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF29XV-110-1R5A019JVCMC 4MH 11A 2LN TH AEC-Q200 |
86 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 11A | 8mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF29XV-080-1R3A026JHCMC 7.4MH 8A 2LN TH AEC-Q200 |
75 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 7.4 mH @ 100 kHz | 8A | 14.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF47B-200-S1R9B026JCMC 2.6MH 20A 3LN TH |
23 |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 2.6 mH @ 100 kHz | 20A | 2.9mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

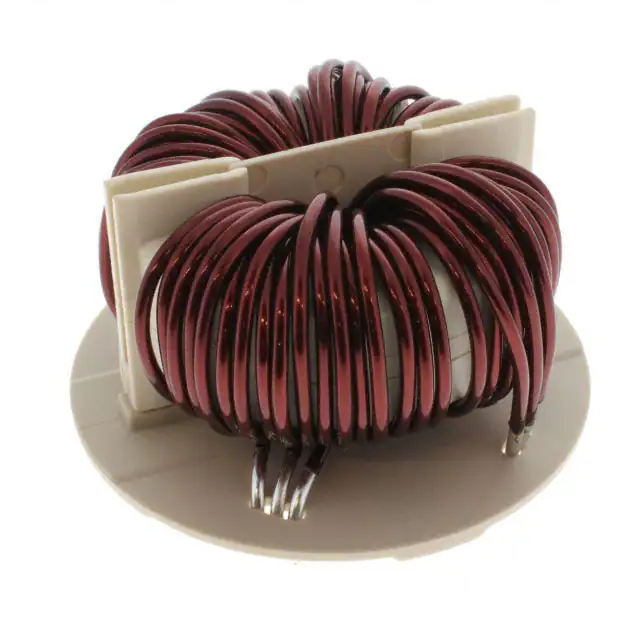

SCF47C-400-1R8C040JHCMC 4MH 40A 2LN TH |
68 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 40A | 2.1mOhm | 500V | 500V | -25°C ~ 120°C | - | - | - | - | - |
|

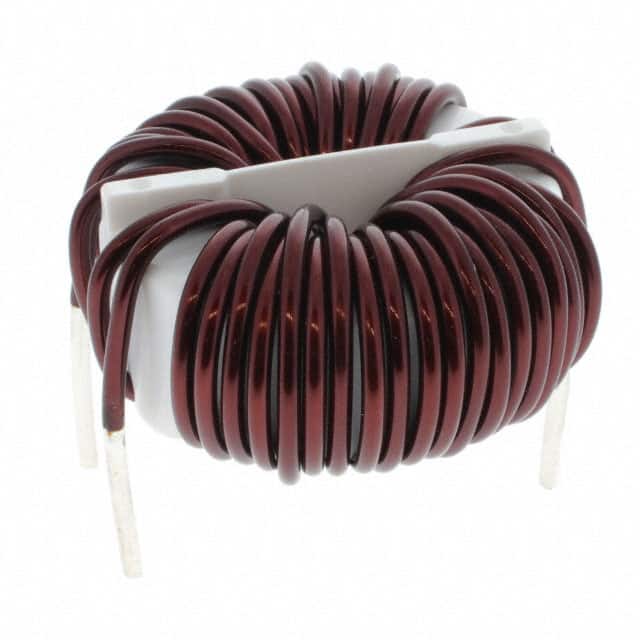

SC-20-300CMC 3MH 20A 2LN TH |
58 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 20A | 13mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
HHBC24N-2R3A0104VCMC 104UH 20A 2LN TH |
51 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 104 µH @ 100 kHz | 20A | 10.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

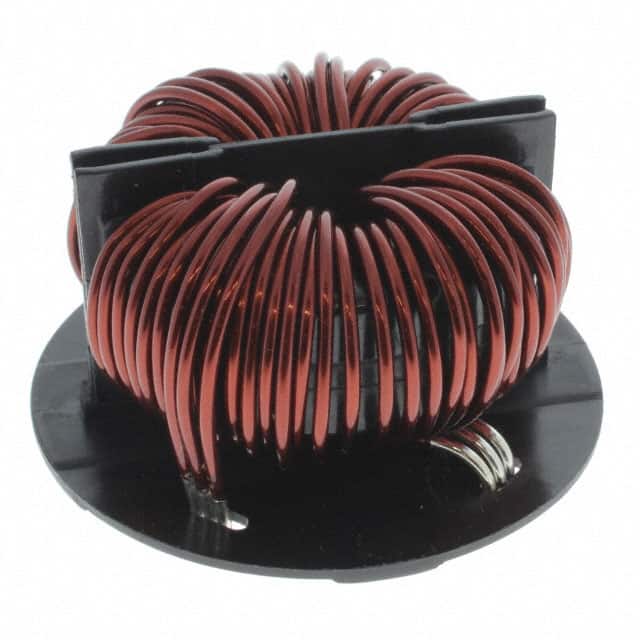

SCR47B-350-1R6C016JH-DCMC 1.6MH 35A 2LN TH |
18 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 35A | 3.5mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|

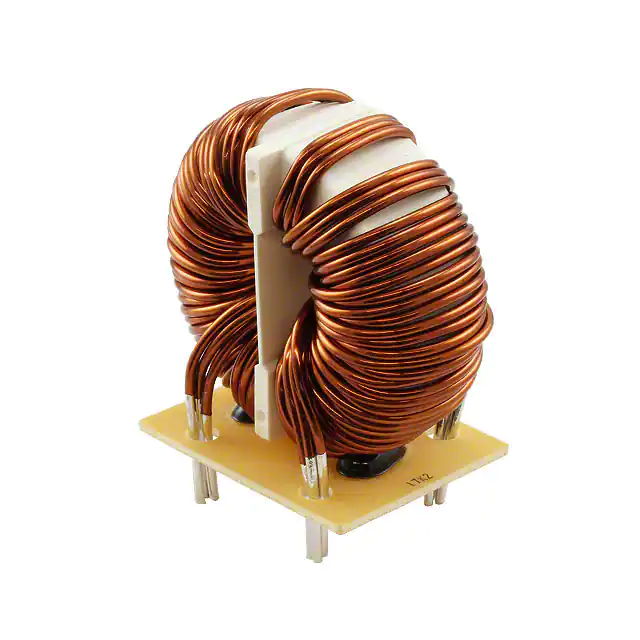

SCR47-350-1R6C016JCMC 1.6MH 35A 2LN TH |
34 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 35A | 3.5mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SCR47B-400-1R8C010JHCMC 1MH 40A 2LN TH |
24 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 40A | 2.1mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
SCR47-400-1R9C008JHCMC 800UH 40A 2LN TH |
34 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 800 µH @ 10 kHz | 40A | 1.8mOhm | - | - | -25°C ~ 120°C | - | - | - | - | - |
|
HHBC24N-2R0A0219VCMC 219UH 15A 2LN TH |
56 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 219 µH @ 100 kHz | 15A | 19.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PHBC24N-2R3A0104VCMC 104UH 20A 2LN TH |
60 |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 104 µH @ 100 kHz | 20A | 10.4mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
