Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C315C300F3G5TACAP CER 30PF 25V C0G/NP0 RADIAL |
438 |
|
Datasheet | GoldMax 300 Comm C0G | Bulk | Active | 30 pF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.183" (4.66mm) | - | 0.100" (2.54mm) | Straight |
|
|
C315C470F3G5TACAP CER 47PF 25V C0G/NP0 RADIAL |
426 |
|
Datasheet | GoldMax 300 Comm C0G | Bulk | Active | 47 pF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.183" (4.66mm) | - | 0.100" (2.54mm) | Straight |
|
C316C100FAG5TACAP CER 10PF 250V C0G/NP0 RADIAL |
418 |
|
Datasheet | GoldMax 300 Comm C0G | Bulk | Active | 10 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.230" (5.84mm) | - | 0.100" (2.54mm) | Formed Leads - Kinked |
|
C317C472F5G5TACAP CER 4700PF 50V C0G/NP0 RAD |
239 |
|
Datasheet | GoldMax 300 Comm C0G | Bulk | Active | 4700 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|

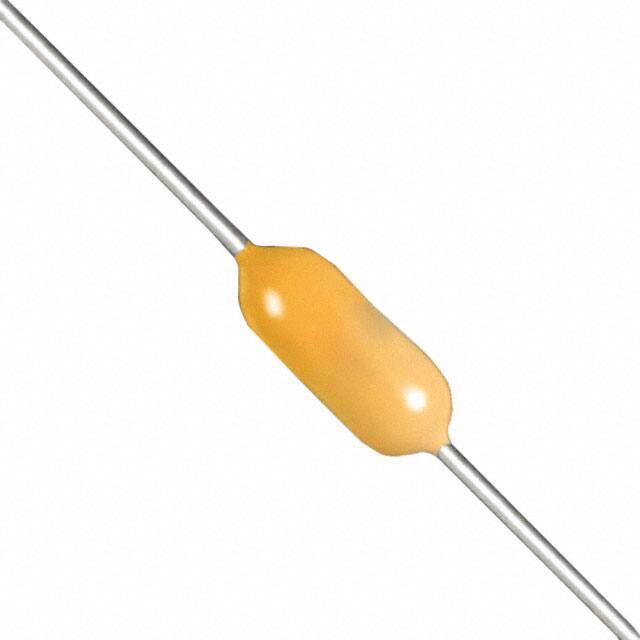

C430C474K5N5TA9170CAP CER 0.47UF 50V X8L AXIAL |
200 |
|
Datasheet | AxiMax 400 Auto X8L HT150C | Bulk | Active | 0.47 µF | ±10% | 50V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive, Bypass, Decoupling | - | Through Hole | Axial | 0.150" Dia x 0.240" L (3.81mm x 6.10mm) | - | - | - | Straight |
|
C757U332MZWDBAWL50CAP CER 3.3NF X1/Y2 440V/300V |
1,000 |
|
Datasheet | C700KJY SFTY X1-440 Y2-300 | Bag | Active | 3300 pF | ±20% | 440VAC | Y5U (E) | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | 0.630" (16.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
-4,50x3,20x2,7mm.jpg)
|
C1812C103F5HAC7800CAP CER 10000PF 50V X8R 1812 |
980 |
|
Datasheet | SMD Comm X8R HT150C | Tape & Reel (TR) | Active | 10000 pF | ±1% | 50V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C226M4RAC7210CAP CER 22UF 16V X7R 1210 |
8,720 |
|
Datasheet | SMD Comm X7R | Tape & Reel (TR) | Active | 22 µF | ±20% | 16V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1210X393KFRACTUCAP CER 1210 FF |
2,832 |
|
Datasheet | SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 0.039 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
|
|
C721U221KWYDAA7301CAP CER 220PF 760VAC Y5T RADIAL |
23,913 |
|
Datasheet | C700KJY SFTY X1-440 Y2-300 | Tape & Reel (TR) | Active | 220 pF | ±10% | 440VAC | Y5P (B) | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | 0.472" (12.00mm) | - | 0.394" (10.00mm) | Straight |
|
|
C721U471MWWDAA7301CAP CER 470PF 760VAC Y5U RADIAL |
18,975 |
|
Datasheet | C700KJY SFTY X1-440 Y2-300 | Tape & Reel (TR) | Active | 470 pF | ±20% | 440VAC | Y5U (E) | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | 0.472" (12.00mm) | - | 0.394" (10.00mm) | Straight |
|
VJ1210Y102KBFAT4XCAP CER 1000PF 2KV X7R 1210 |
4,706 |
|
Datasheet | VJ OMD | Tape & Reel (TR) | Active | 1000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Open Mode, Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.132" L x 0.098" W (3.35mm x 2.50mm) | - | 0.067" (1.70mm) | - | - |
|
|
C0603C471F1GACTUCAP CER 470PF 100V C0G/NP0 0603 |
3,825 |
|
Datasheet | SMD Comm C0G | Tape & Reel (TR) | Active | 470 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | - | - | - |
|
|
C0603C561F1GACTUCAP CER 560PF 100V C0G/NP0 0603 |
3,228 |
|
Datasheet | SMD Comm C0G | Tape & Reel (TR) | Active | 560 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | - | - | - |
|
|
C752U222MWWDAA7301CAP CER 2200PF 760VAC Y5U RADIAL |
2,957 |
|
Datasheet | C700KJY SFTY X1-440 Y2-300 | Tape & Reel (TR) | Active | 2200 pF | ±20% | 440VAC | Y5U (E) | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | 0.591" (15.00mm) | - | 0.492" (12.50mm) | Straight |
|
|
C0805C221F2GACTUCAP CER 220PF 200V C0G/NP0 0805 |
11,963 |
|
Datasheet | SMD Comm C0G | Tape & Reel (TR) | Active | 220 pF | ±1% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206X470JDGAC7800CAP CER 47PF 1000V C0G/NP0 1206 |
4,464 |
|
Datasheet | SMD Comm C0G HV Flex | Tape & Reel (TR) | Active | 47 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.047" (1.20mm) | - | - |
|
|
C327C332KDR5TACAP CER RAD MONO |
500 |
|
Datasheet | GoldMax 300 Comm X7R HV | Bulk | Active | 3300 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | Bypass, Decoupling | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.320" (8.13mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
|
VJ1812A103JXAATCAP CER 10000PF 50V C0G/NP0 1812 |
4,699 |
|
Datasheet | VJ | Tape & Reel (TR) | Active | 10000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.086" (2.18mm) | - | - |
|
CBR08C120JAGACCAP CER 12PF 250V C0G/NP0 0805 |
3,690 |
|
Datasheet | CBR-SMD RF C0G | Tape & Reel (TR) | Active | 12 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
