Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C323C473KAG5TACAP CER RAD 47NF 250V C0G 10% |
452 |
|
Datasheet | GoldMax 300 Comm C0G | Bulk | Active | 0.047 µF | ±10% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads |
|
C325C273KAG5TACAP CER RAD 27NF 250V C0G 10% |
388 |
|
Datasheet | GoldMax 300 Comm C0G | Bulk | Active | 0.027 µF | ±10% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
|
C711U471KYYDAA7317CAP CER 470PF X1/Y2 400V/250V |
1,990 |
|
Datasheet | C700KJY SFTY X1-400 Y2-250 | Cut Tape (CT) | Active | 470 pF | ±10% | 400VAC | Y5P (B) | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | 0.394" (10.00mm) | Straight |
|
|
C0603C161F3GACTUCAP CER 160PF 25V C0G/NP0 0603 |
1,766 |
|
Datasheet | SMD Comm C0G | Tape & Reel (TR) | Active | 160 pF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
C322C682JBG5TA7301CAP CER 6800PF 630V C0G/NP0 RAD |
760 |
|
Datasheet | GoldMax 300 Comm C0G HV | Tape & Reel (TR) | Active | 6800 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.150" W (5.08mm x 3.81mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
|
C320C104J5G5TACAP CER 0.1UF 50V C0G/NP0 RADIAL |
440 |
|
Datasheet | GoldMax 300 Comm C0G | Bulk | Active | 0.1 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.290" (7.36mm) | - | 0.100" (2.54mm) | Straight |
|
C440C103J5G5TACAP CER 10000PF 50V C0G/NP0 AX |
200 |
|
Datasheet | AxiMax 400 Comm C0G | Bulk | Active | 10000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Axial | 0.150" Dia x 0.400" L (3.81mm x 10.16mm) | - | - | - | Straight |
|

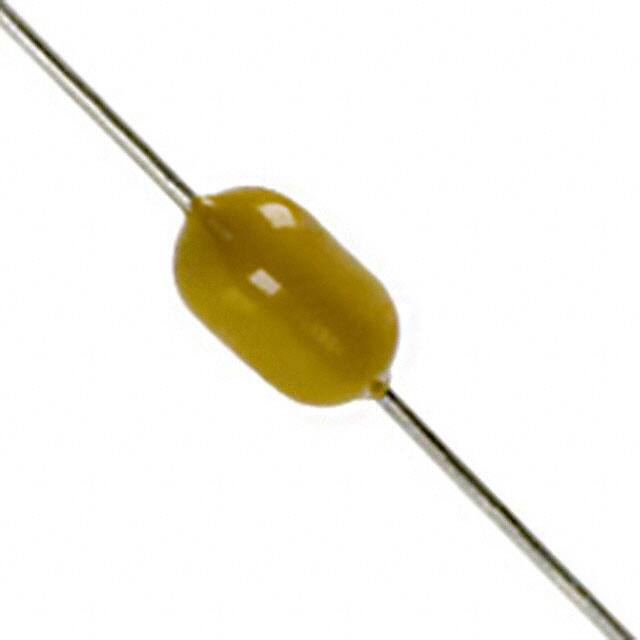

C440C153J1G5TACAP CER 0.015UF 100V C0G AXIAL |
185 |
|
Datasheet | AxiMax 400 Comm C0G | Bulk | Active | 0.015 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Axial | 0.150" Dia x 0.400" L (3.81mm x 10.16mm) | - | - | - | Straight |
|
VJ0805Y104KLAAJ32CAP CER 100000 PF 50V X7R 0805 P |
7,860 |
|
Datasheet | VJ Pb-Bearing | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | X7R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
C320C182G5G5TACAP CER RAD MONO |
1,000 |
|
Datasheet | GoldMax 300 Comm C0G | Bulk | Active | 1800 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.290" (7.36mm) | - | 0.100" (2.54mm) | Straight |
|
|
C1812C224K2RACAUTOCAP CER 1812 |
868 |
|
Datasheet | SMD Auto X7R | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | - |
|
|
C320C222G5G5TACER CAP |
388 |
|
Datasheet | GoldMax 300 Comm C0G | Bulk | Active | 2200 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.290" (7.36mm) | - | 0.100" (2.54mm) | Straight |
|
|
C320C152G1G5TACAP CER 1500PF 100V C0G/NP0 RAD |
266 |
|
Datasheet | GoldMax 300 Comm C0G | Bulk | Active | 1500 pF | ±2% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.290" (7.36mm) | - | 0.100" (2.54mm) | Straight |
|
|
C1206C511G2GACTUCAP CER 510PF 200V C0G/NP0 1206 |
3,980 |
|
Datasheet | SMD Comm C0G | Tape & Reel (TR) | Active | 510 pF | ±2% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C1210C622FBGACAUTOCAP CER 1210 |
2,494 |
|
Datasheet | SMD Auto C0G HV | Tape & Reel (TR) | Active | 6200 pF | ±1% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.098" W (3.30mm x 2.50mm) | - | - | - | - |
|
C062C224K5R5CACAP CER 0.22UF 50V X7R RADIAL |
433 |
|
Datasheet | LDD Comm X7R | Bulk | Active | 0.22 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
|
C0603C750F1GACTUCAP CER 75PF 100V C0G/NP0 0603 |
14,250 |
|
Datasheet | SMD Comm C0G | Tape & Reel (TR) | Active | 75 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0805C103F3GECTUCAP CER 0805 10NF 25V C0G 1% |
3,928 |
|
Datasheet | ESD SMD Comm C0G | Tape & Reel (TR) | Active | 10000 pF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | - | ESD Protection | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
|
C0603C300F1GACTUCAP CER 30PF 100V C0G/NP0 0603 |
3,703 |
|
Datasheet | SMD Comm C0G | Tape & Reel (TR) | Active | 30 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0805C682FMGECTUCAP CER 0805 6.8NF 63V C0G 1% |
1,196 |
|
Datasheet | ESD SMD Comm C0G | Tape & Reel (TR) | Active | 6800 pF | ±1% | 63V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | - | ESD Protection | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
